WatchfulEyeSolutions

WTH-500/G+/R/1P-440 Wind
www.watchfuleyesolutions.com Surge Protective Device for Wind System

Description
In accordance with: IEC 61643-1 - Class I and UL1449 Type 4 Location
Location of use: Grid side wind system
Built-in 7-layer High Energy GDT: Safely applied to L-PE mode to realize Class I surge protection.

Technical Data
Model WTH-500/G+/R/1P-440 Wind
Ordering code US120433
Max. Continuous Operating Voltage (Uc) 440V
Frequency 50/60Hz
Dc spark-over voltage at 100 V/s >800V
Requirement Class to IEC61643-1 Class I
IEEE Category Rating C & B
Nominal Discharge Current (In) 35kA
Max. Discharge Current (Imax) 70kA
Pulsed Current (Iimp) 35kA
Residual Voltage (Up @6kV/3kA) 2.5kV
Protection Modes L1-PE, L2-PE, L3-PE
Protective Element 7-layer High Energy GDT
Follow Current (If) 3kA rms (at 440V)
Response Time (tA) <100ns
Activation YES
Thermal Protection YES
Leakage Current (at 75%U1mA) None
Fault Indication NO
Protection Rating (IP Code) IP 20
Short Circuit Current Ratings (SCCR) 20kA rms
Max. Back-up Fuse (if mains >315A) 315A gL
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid) / 25mm² (stranded)
Stripping Length Contacts 0.6inches (15mm)
Terminal Screw Torque Max. 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 35.8mm (2TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Compact design
Net Weight Per Unit 0.57Lb (259g)
Package Dimension (W×H×D) 1.4"×3.9"×2.6" (35.8mm×99mm×66.5mm)
Remote Contacts YES
Contact Ratings AC:125V/1A
Terminal Cross Section Max. 1.5mm²
Stripping Length Contacts 0.25inches (6-7mm)
Remote Terminal Torque 0.25Nm

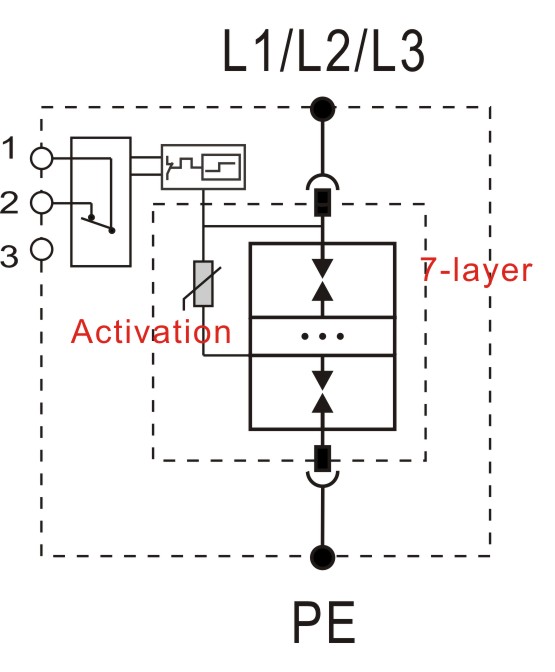

Connection Diagram
Dimensions
