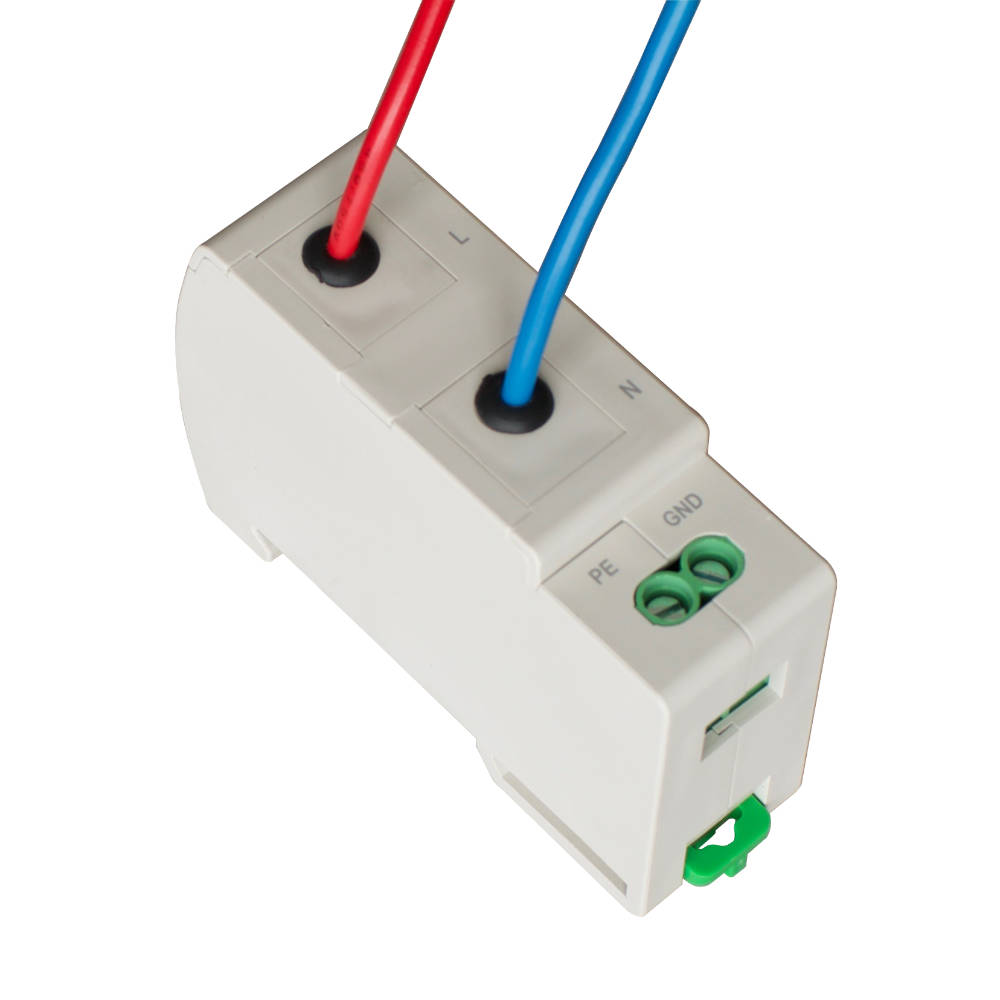

WTH-SG/TL10-275
www.watchfuleyesolutions.com Surge Protective Device for LED Module
Description
In accordance with: IEC 61643-1 - Class III and UL1449 Type 4 Location
Location of use: fine surge protection at equip area
Technical Data
Model WTH-SG/TL10-275
Ordering code US121062
Nominal operating voltage (Un) 240V
Frequency 50/60Hz
Max. continuous operating voltage (Uc) 275V
Requirement Class to IEC61643-1 Class III
IEEE Category Rating A
Nominal Discharge Current (In) 5kA
Max. Discharge Current (Imax, Per Line) 10kA
Open circuit voltage (Uoc) 10kV
Voltage protection level (Up) 1.2kV
Residual voltage (Ures @6kV/3kA) 1.1kV
Protection Modes L-PE, N-PE, L-N
Protective Element MOV
Follow Current (If) NO
Response Time (tA) <25ns
Leakage Current (at 75%U1mA) 20μA
Thermal Protection YES
Protection Rating (IP Code) IP 67
Back-up Fuse 10A gL
Surge Life at 3kA (8/20μs) >2000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Housing Material Thermoplastic (UL94 V-0)
Net Weight Per Unit -
Package Dimension (W×H×D) 46mm×26mm×47mm
Connection Diagram
