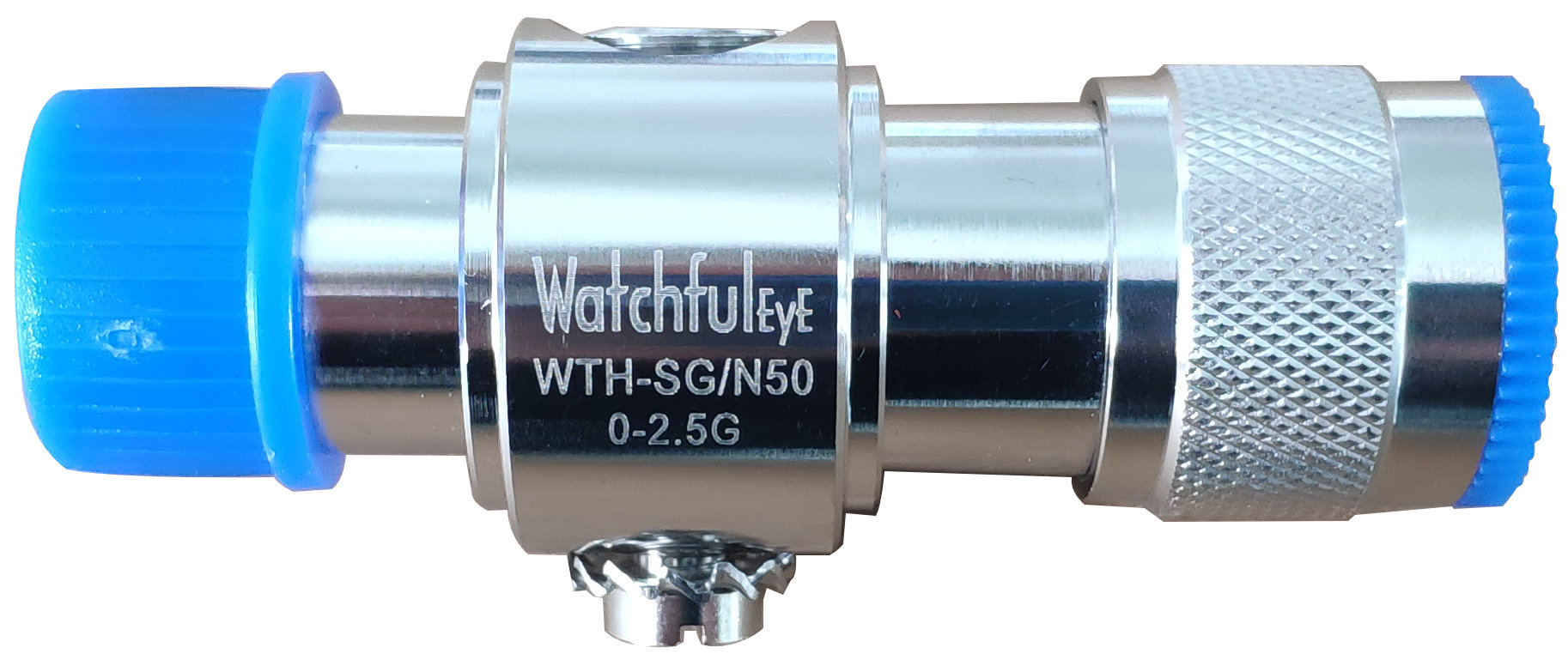

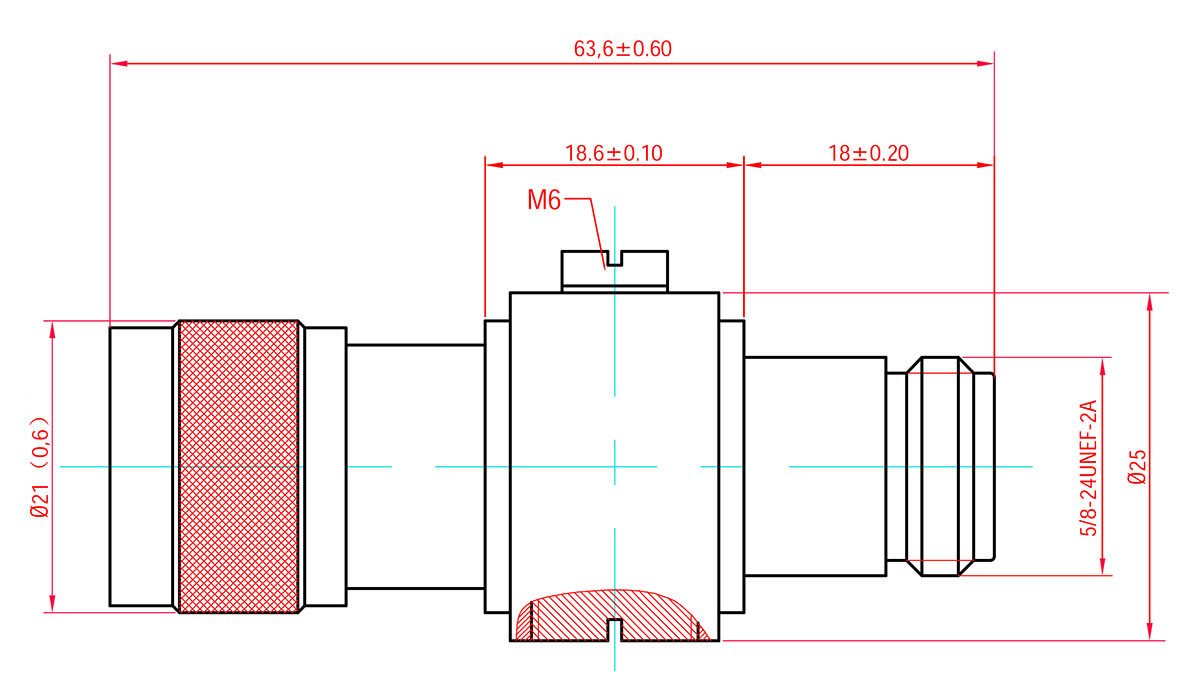

| Model |
WTH-SG/N50 0-2.5G |
| Ordering code |
US121206 |
| Characteristic impedance |
50Ω |
| Frequency range |
0-2500 (MHz) |
| Maximum transmission capability |
70W |
| Contact resistance (normal) |
≤0.4mΩ (inner conductor) |
| Contact resistance (normal) |
≤1.5mΩ (outer conductor) |
| DC pass |
20A @ 50V (90V gas capsule) |
| RF leakage |
<-128dBm@1GHz |
| Third-order cross intermodulation |
≤-110dBm@2X20w |
| Standing-wave ratio (return loss) |
≤1.3 (≤20.828) |
| Insertion loss (absolute value) |
≤0.3 dB |
| Nominal impulse discharge current (In) |
10kA |
| Max. impulse discharge current (Imax) |
20kA |
| Residual voltage (20kA 8/20 μs) |
≤650 |
| Residual voltage (4kV 1.2/50μs, 2kA 8/20 μs) |
≤650 |
| Residual energy (4kV 1.2/50μs, 2kA 8/20 μs) |
≤1mJ |
| Interface contact |
N-female ~ N-male |
| Mating cycles |
min. 500 |
| Coupling nut retention |
≥1000 N |
| Center contact captivation: axial |
≥200 N |
| Center contact captivation: radial |
≥2 Ncm |
| Coupling torque (recommended) |
25 to 30 Nm |
| Proof torque |
max. 35 Nm |
| Protection rating (IP Code) |
IP67 |
| Surge protection response time (tA) |
<100ns |
| Surge life at 1kA (8/20μs) |
>1000 events |
| Temperature range |
- 49°F to 185°F (-45°C to 85°C) |
| Relative humidity |
0% to 95% noncondensing |
| Maximum operating altitude |
10,000 feet (3000m) |
| Net Weight Per Unit |
0.55Lb (250g) |
