WatchfulEyeSolutions
WTH-225/LAN
www.watchfuleyesolutions.com WatchfulEyE Cloud Service LAN Extender

Product Name: WatchfulEyE Cloud Service LAN Extender
Model: WTH-225/LAN
Ordering Code:US127301


WTH-225/LAN Connecting Wires
①Connect 485 cable(-/+, RS485)
Remote control +/- terminals of the device’s RS485 cable to connect with the 485 connectors of WTH-225/LAN
②Connect networking cable (RJ45, Ethernet)
Connect a networking cable to WTH-225/LAN, a connector can surf the internet by connecting the cable with a Broardband Router (Use a computer to test network availability firstly)
③Connect power cable (DC, 9-24V)
Turn on the power to extend to WatchfulEyE Cloud Service
④Connect serial port lines
Note: only use either of the two wiring methods(either ①RS485 or ④RS232)
Panel Indicators
Active: blue light flashes while sending data to Cloud Service
Link: green light is normally on when networking is normal
Power: red light is normally on when power is turned on
Log on WatchfulEyE Cloud Service
1. Log on the Cloud Service on a computer on the website: www.wthny.com
2. Register a Cloud Service user account with an email address.
3. After logging on, input the device number and verification code on settings which are related to the monitoring devices.
4. You can log on Cloud Service on any computer which has been connected to Internet to browse the latest data in real time.

For more information, please read the WatchfulEyE Cloud Service operational manual.

WTH-225/LAN WatchfulEyE Cloud Service LAN Extender Page 02

The functions realized by WTH-225/LAN extension (for free):
www.wthny.com Surge/Lightning Protection Remote Intelligent Monitoring System---based on Cloud Service Platform of Internet of Things.
1. Internet of Things: each Cloud Service Networking device owns a unique device serial number and infinite node networking at the same time.
2. Cloud Connection: remote monitoring devices can be extended to RJ45 Networking by connecting with WTH-225/LAN with RS232/RS485, making the Cloud Management come true.
3. Unattended operation: log on the website www.wthny.com to browse the running condition of monitoring on-site surge protective devices (hereinafter called SPDs) on any computer which has been connected to Internet, making the telecommuting come true.
4. Real-time Data: log on Cloud Service to browse the real-time data at any time. Once an SPD fails or is broken by surge or lightning, the remote monitoring device will send out an audible and visual alert and meanwhile the Cloud Service displays the changes of running status of surge protection system. Then the maintenance staff shall go for a trouble shoot to prevent the risk of the following lightning strikes or surge.
5. Cloud Storage: all the data can be saved in Cloud Server, free for one month.

Cloud Service VIP Extensive Functions (Chargeable):
1. Set the Cloud Service alerts
2. Alert sending: set an E-mail address for receiving alerts. Once an SPD fails or is broken by surge or lightning, the remote monitoring device will send out an audible and visual alert and meanwhile the Cloud Service will send the alerts to the E-mail address. Then the maintenance staff can receive the alarm alerts in timely and go for a trouble shoot to prevent the risk of the following lightning strikes or surge.
3. Setting the Longitude and Latitude data of the Remote Monitoring Devices. It’s clearer to browse the map directions of SPDs when centralizing management.
4. Log on the Cloud Service to browse the data of the latest 6 months on any computer which has been connected to Internet. It can be set up to save more information of longer prior periods for some important monitoring sites, which can be used as “a black box”.
5. The Cloud platform can realize the multi-user hierarchical centralized management.

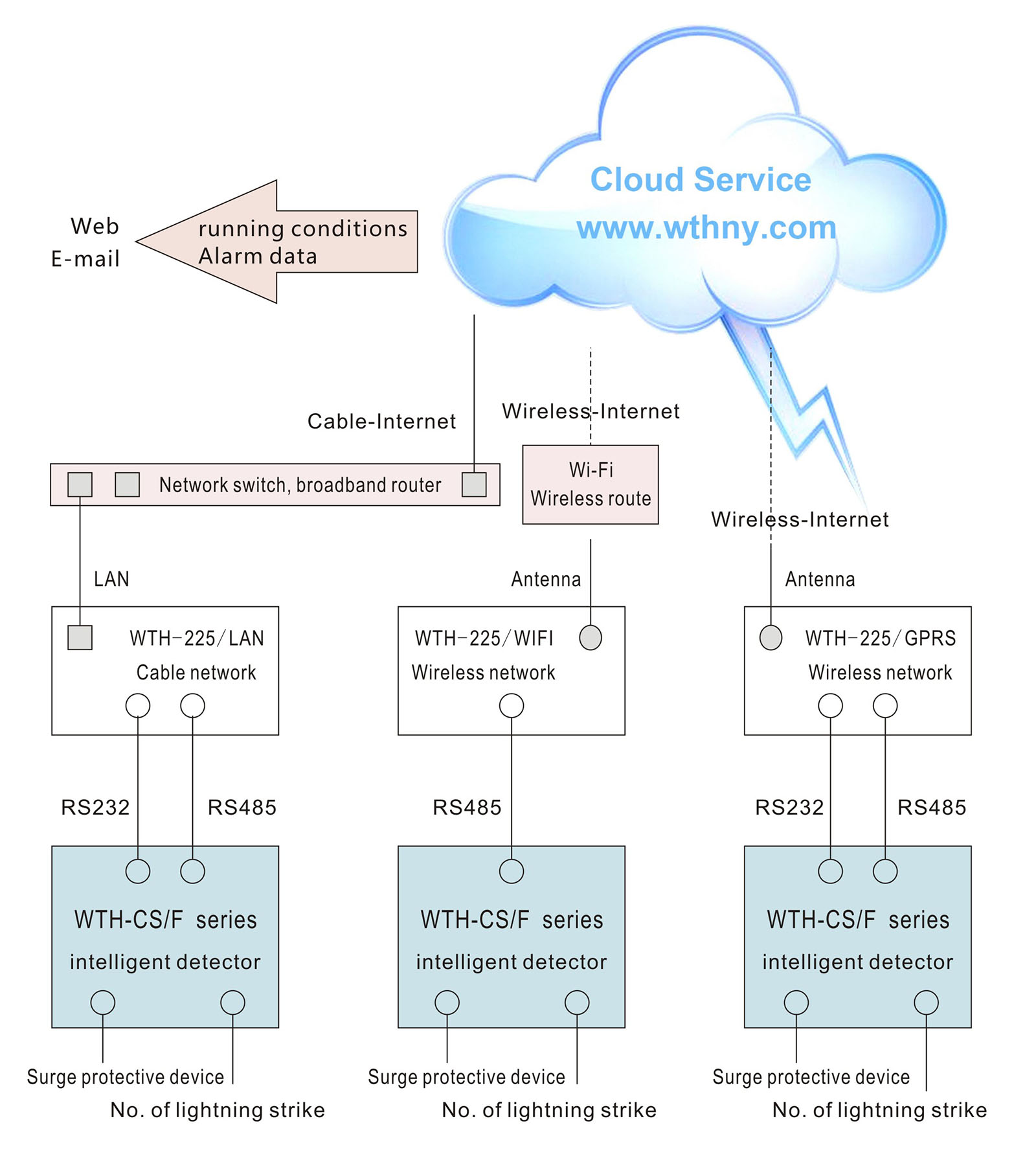

WatchfulEyE Cloud Service System Structure Diagram
