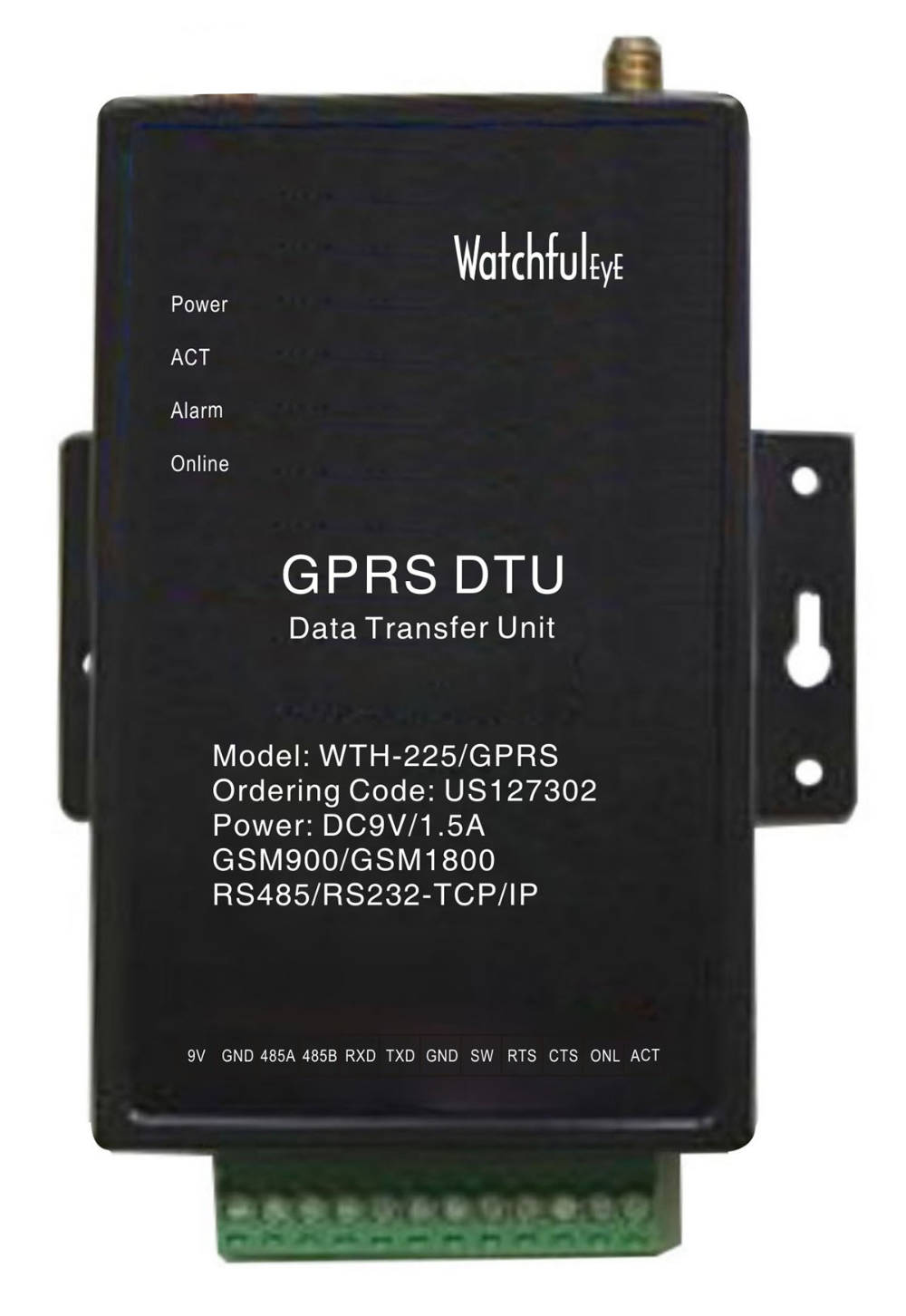

Product Name: WatchfulEyE Cloud Service GPRS Extender
Model: WTH-225/GPRS
Ordering Code:US127302

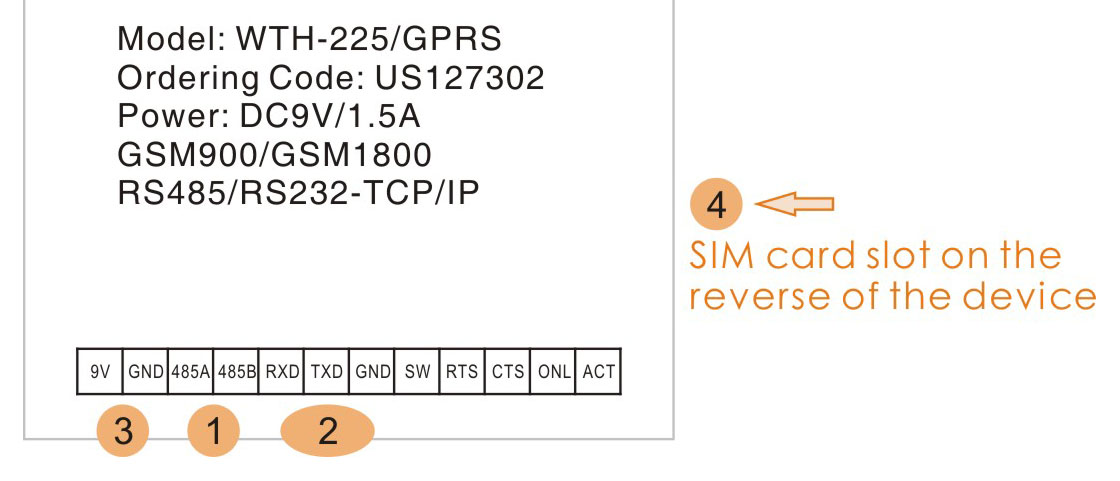

WTH-225/GPRS Connecting Wires
①Connect 485 cable(485A/485B, RS485)
Remote control 485A/485B terminals of the device’s RS485 cable to connect with the 485 connectors of WTH-225/GPRS
②Connect serial port line(RXD/TXD/GND，RS232)
Note: only use either of the two wiring methods(either ①RS485 or ②RS232)
③Connect power wire (9V/GND, DC)
Turn on the power to extend to WatchfulEyE Cloud Service
④Insert the SIM card
Panel Indicator
Power: red light is normally on when power is turned on
ACT: blue light flashes while sending data to Cloud Service
Alarm: reserve for systems
Online: green light is normally on when networking is normal
Log on WatchfulEyE Cloud Service
1. Log on the Cloud Service on a computer on the website: www.wthny.com
2. Register the Cloud Service user account with an E-mail address.
3. After logging on, input the device number and verification code on settings which are related to the monitoring devices.
4. You can log on Cloud Service on any computer which has been connected to Internet to browse the newest data in real time.
For more information, please read the WatchfulEyE Cloud Service operational manual.
WTH-225/GPRS WatchfulEyE Cloud Service GPRS Extender Page 02
The functions realized by WTH-225/GPRS extension (for free):
www.wthny.com Surge/Lightning Protection Remote Intelligent Monitoring System---based on Cloud Service Platform of Internet of Things.
1. Internet of Things: each Cloud Service Networking device owns a unique device serial number, infinite node networking at the same time.
2. Cloud Connection: remote monitoring devices can be extended to RJ45 Networking connection by connecting with WTH-225/GPRS with RS232/RS485, making the Cloud Management come true.
3. Unattended operation: log on the website www.wthny.com to browse the running condition of monitoring on-site surge protective devices (hereinafter called SPDs) on any computer which has been connected to Internet, making the telecommuting come true.
4. Real-time Data: log on Cloud Service to browse the real-time data at any time. Once an SPD fails or is broken by surge or lightning, the remote monitoring device will send out an audible and visual alert and meanwhile the Cloud Service displays the changes of running status of surge protection system. Then the maintenance staff shall go for a trouble shoot to prevent the risk of following lightning strikes or surge.
5. Cloud Storage: all the data can be saved in Cloud Server, free for one month.
Cloud Service VIP Extensive Function (Chargeable):
1. Set the Cloud Service alerts
2. Alert sending: set an E-mail address for receiving alerts. Once an SPD fails or is broken by surge or lightning, the remote monitoring device will send out an audible and visual Alert and meanwhile the Cloud Service will send alerts to the E-mail address. Then the maintenance staff can receive the alerts in timely and go for a trouble shoot to prevent the risk of the following lightning strikes or surge.
3. Setting the Longitude and Latitude data of the Remote Monitoring Devices. It’s clearer to browse the map directions of SPDs when centralizing management.
4. Log on the Cloud Service to browse the data of the latest 6 months on any computer which has been connected to Internet. It can be set up to save more information of longer prior periods for some important monitoring sites, which can be used as “a black box”.
5. The Cloud platform can realize multi-user hierarchical centralized management.
WatchfulEyE Cloud Service System Structure Diagram
