WTH-CS/AC
www.watchfuleyesolutions.com Smart Surge Protective Device
Description
Smart surge protector WTH-CS/… AC series are perfect suit for your power supply system as well as Data and Control System. The smart monitoring system came with multiple connection choice: RS485 - Cloud, Modbus. Easily extend cloud service capability, allows real-time remote monitoring and managing your surge protection system through cloud service.
WTH-CS/… AC serie splits currents to protect surge protector against potential damage from overvoltage. Widely used in data center or front-end equipment to protect power supply and cable from surge.
In accordance with: IEC 61643-1 - Class I and UL1449 Type 4 Location
WTH-CS/… AC Series
Model Network Remote Monitoring Surge Count Ordering Code
WTH-CS/RS485/AC3P-R RS485/Modbus ✔︎ ✔︎ USR127345
WTH-CS/RS485/AC3P - - ✔︎ US127345
WTH-CS/AC380 - - - US127346
※ RS485-Cloud: Remote monitoring, alerts sent by E-mail
※ Modbus: Convenient for the secondary development
Technical Data
Surge Protection Power
Nominal operating voltage (Un) 380V (3P4W)
Max. continuous operating voltage (Uc) 265VAC (L-N/PE)
Nominal Discharge Current (In) 5kA
Max. Discharge Current (Imax) 10kA
Voltage protection level (Up @line-line) 1300V
Voltage protection level (Up @line-PE) 1300V
Insertion Loss -
Protective Element MOV
Response Time (tA) <25ns
Wiring Terminal L1, L2, L3, N, PE
Leakage Current (at 75%U1mA) <20μA
Thermal Protection YES
Protection Rating (IP Code) IP 20
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid)
Stripping Length Contacts 15mm
Max. Terminal Screw Torque 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 72mm (4TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Modular design
Net Weight Per Unit 250g
Package Dimension (W×H×D) 72mm×90mm×69mm
Smart Monitoring
Lightning Count 0-999
Remote Contacts Yes
Colud Service www.greenspd.com

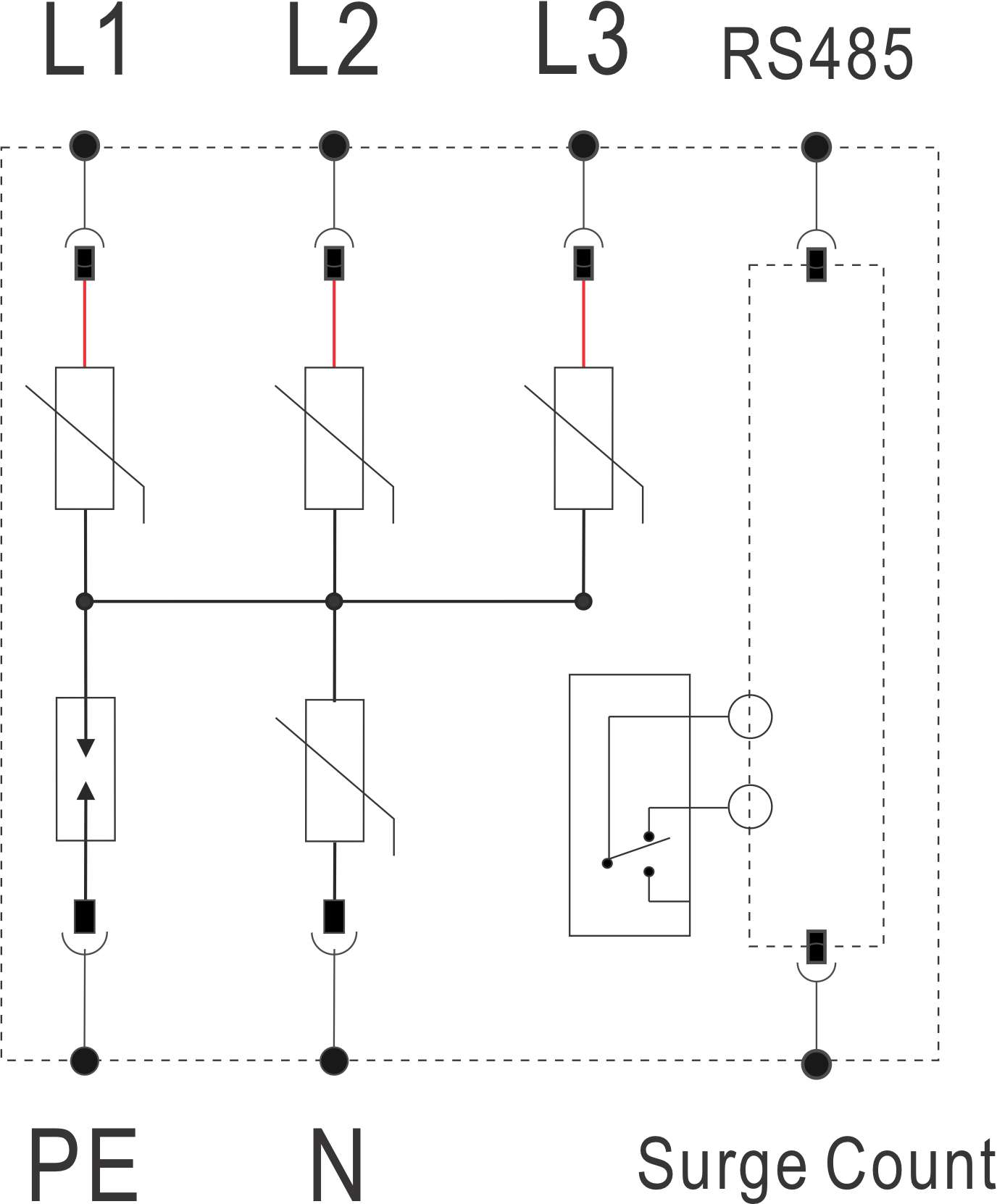

Connection Diagram
