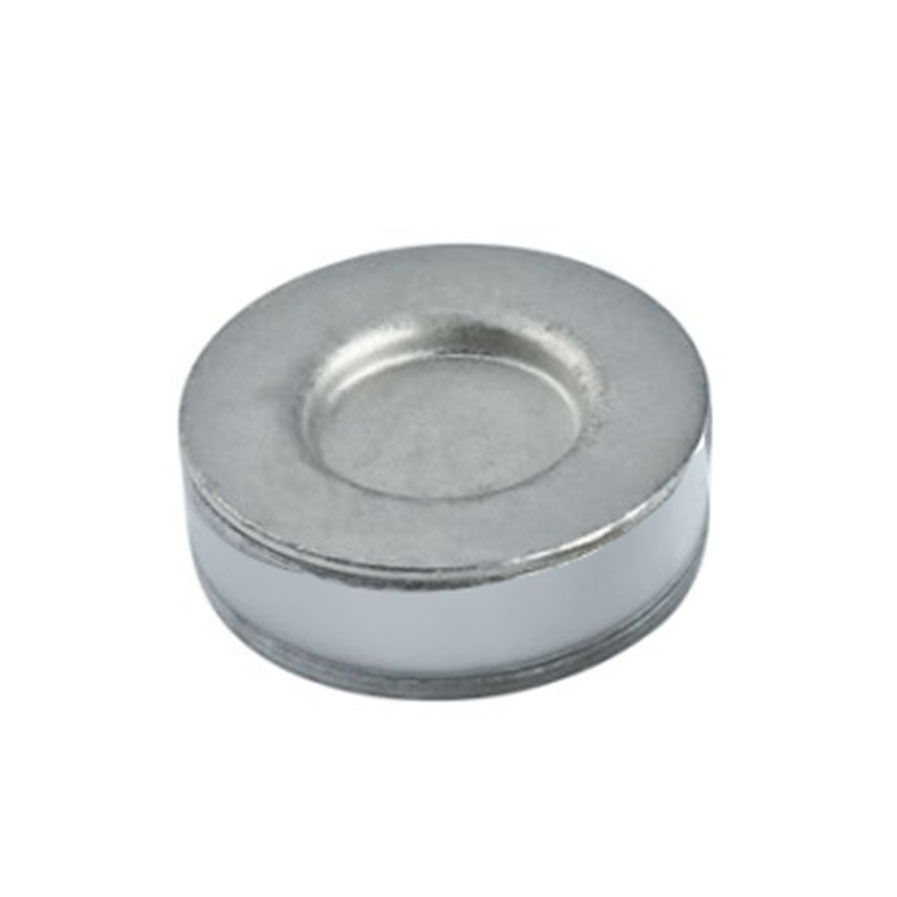

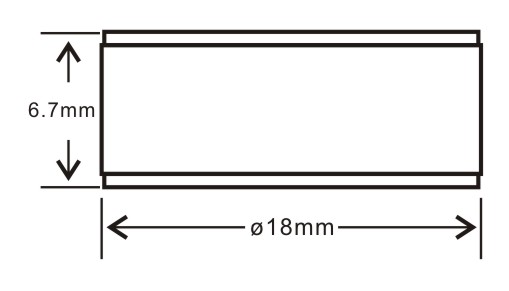

www.watchfuleyesolutions.com Gas Discharge Tube (GDT)

W18G-800 is GDT designed for protection of power lines. Low insertion loss is also perfectly suited to broadband equipment applications.
The GDT operates as a symmetrical voltage-dependent switch. Features as very high surge current handling capability, very high insulation resistance and ultra-low capacitance meet almost perfectly all requirements made on a protective element.

Technical Data
Model W18G-800
Ordering Code US129134
Max. continuous operating voltage (Uc) 255V
Frequency 50/60Hz
DC Breakdown Voltage Range (@100 V/s) 800V±20%
Impulse Breakdown in Volts (6kV 1.2/50μs) 1500V
Requirement Class to IEC61643-1 Class I, II
IEEE Category Rating B & A
Nominal Impulse Discharge Current (In) 60kA
Max. Impulse Discharge Current (Imax) 80kA
Pulsed Current (Iimp) 25kA
Measured Limiting Voltage (MLV @3kA) 1290Vpk
Protection Modes N-PE
Follow Current (If) 100A rms
Insulation Resistance @100V DC 1000MΩ
Capacitance @1MHz <2pF
Response Time (tA) <100ns
Leakage Current (at 75%U1mA) None
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Net Weight Per Unit 8g

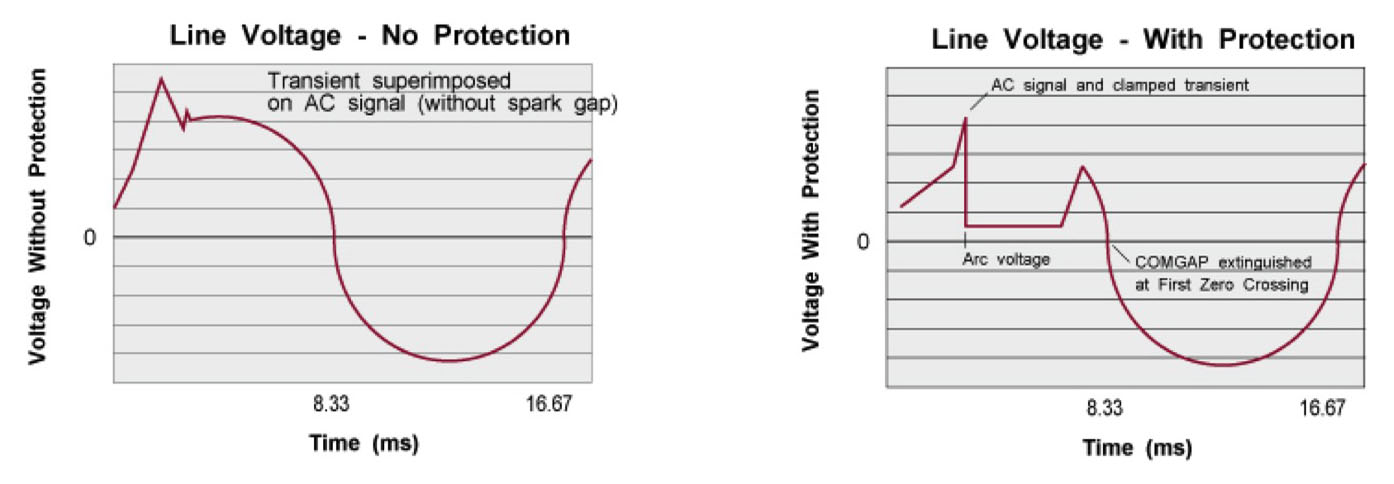

Performance Characteristics

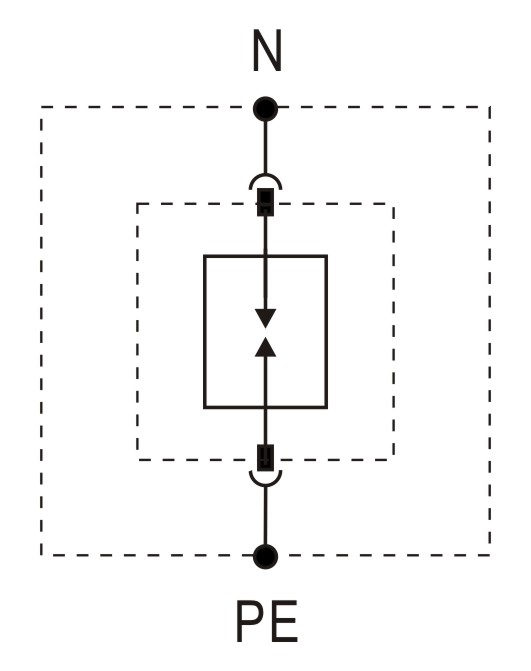

Connection Diagram
