Description
Smart surge protector WTH-CS/… AC380 series are perfect suit for your power supply system as well as Data and Control System. The smart monitoring system came with multiple connection choice: Wi-Fi, RS485 - Cloud, Modbus. Easily extend cloud service capability, allows real-time remote monitoring and managing your surge protection system through cloud service.
WTH-CS/… AC380 serie splits currents to protect surge protector against potential damage from overvoltage. Widely used in data center or front-end equipment to protect power supply and cable from surge.
In accordance with: IEC 61643-1 - Class I and UL1449 Type 4 Location
WTH-CS/… AC380 Series
| Model |
Network |
Contact |
Signal |
Ordering code |
| WTH-CS/Wi-Fi/AC380 |
Wi-Fi |
- |
- |
USW127341 |
| WTH-CS/Wi-Fi/AC380R |
Wi-Fi |
✔︎ |
- |
USW127342 |
| WTH-CS/Wi-Fi/AC380S |
Wi-Fi |
- |
✔︎ |
USW127343 |
| WTH-CS/485/AC380R |
RS485/Modbus |
✔︎ |
- |
USR127345 |
| ※ Wi-Fi, RS485-Cloud: |
Cloud Service, remote monitoring, alerts sent by E-mail |
| ※ Modbus: |
Convenient for the secondary development |
Technical Data
| Surge Protection |
Power |
Signal |
| Nominal operating voltage (Un) |
380V (3P4W) |
5-24VDC |
| Max. continuous operating voltage (Uc) |
265VAC (L-N/PE) |
33VDC |
| Nominal Discharge Current (In) |
5kA |
3kA |
| Max. Discharge Current (Imax) |
10kA |
20kA |
| Voltage protection level (Up @line-line) |
1300V |
60V |
| Voltage protection level (Up @line-PE) |
1300V |
65V |
| Insertion Loss |
- |
<0.5dB @10MHz |
| Protective Element |
MOV |
GDT, TVS |
| Response Time (tA) |
<25ns |
<1ns |
| Wiring Terminal |
L1, L2, L3, N, PE |
1-2, 3-4 |
| Leakage Current (at 75%U1mA) |
<20μA |
- |
| Thermal Protection |
YES |
- |
| Protection Rating (IP Code) |
IP 20 |
| Surge Life at 3kA (8/20μs) |
>5000 events |
| Temperature Range |
- 40°F to 176°F (-40°C to 80°C) |
| Relative Humidity |
0% to 95% noncondensing |
| Maximum Operating Altitude |
10,000 feet (3000m) |
| Terminal Cross Section |
35mm² (solid) |
1.5mm² |
| Stripping Length Contacts |
15mm |
6-7mm |
| Max. Terminal Screw Torque |
3.5Nm |
0.25Nm |
| DIN Rail EN60715 |
35mm top-hat rail |
| Dimensions DIN 43880 |
72mm (4TE) |
| Housing Material |
Thermoplastic (UL94 V-0) |
| Housing Design |
Modular design |
| Net Weight Per Unit |
250g |
| Package Dimension (W×H×D) |
72mm×90mm×69mm |
| Smart Remote Monitoring |
YES |
| Surge Count |
0-999 |
| Network Connection |
Wi-Fi |
| SPD Module Monitoring |
Built-in Integration |
| GreenSPD Cloud |
http://www.greenspd.com |
| Technical Manual: http://datasheet.watchfuleyesolutions.com/USW000.html |
|

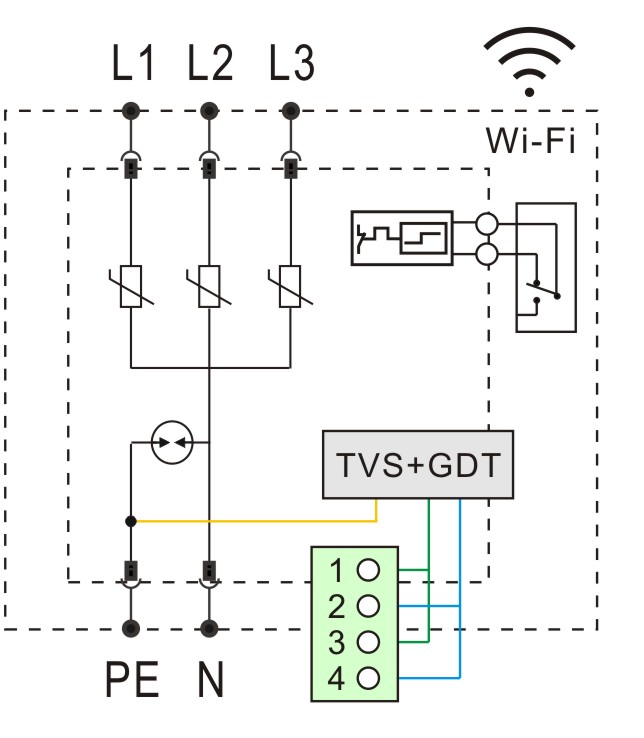

Connection Diagram
