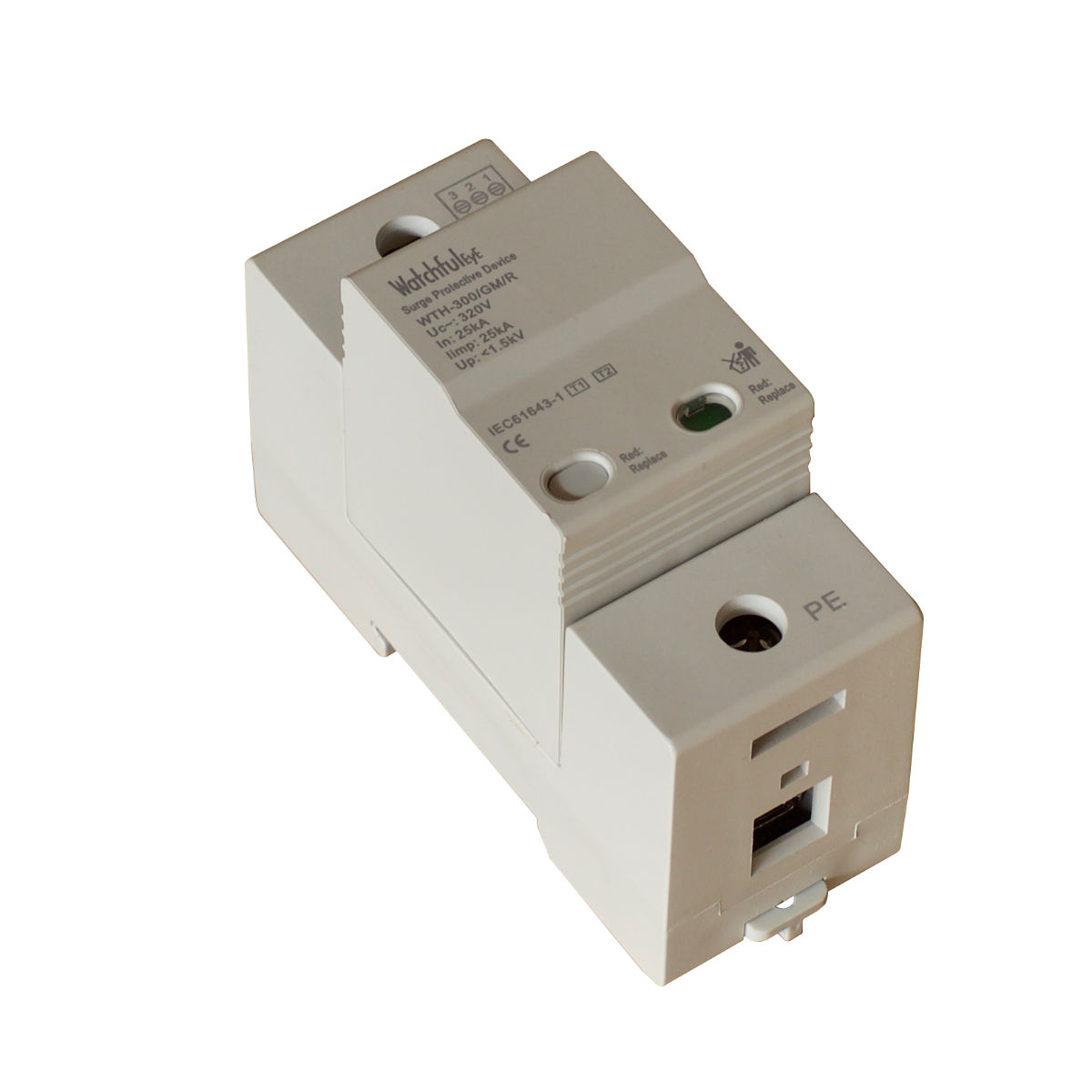

WTH-300/GM/R/1P-320
www.watchfuleyesolutions.com Surge Protective Device for AC Power Supply System
Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US120280.html
Description
In accordance with: IEC 61643-11 - Class I and UL1449 Type 4 Location
Location of use: main sub-distribution boards
Built-in 3-layer High Energy GDT+MOV: Safely applied to L-PE mode to realize Class I surge protection.
Ordering Information
Model Ordering code
WTH-300/GM/R/1P-320 US120280
WTH-300/GM/R/1P-320 x2pcs US120280x2
WTH-300/GM/R/1P-320 x3pcs US120280x3
WTH-300/GM/R/1P-320 x4pcs US120280x4

Technical Data
Model WTH-250/GM/R/1P-320
Max. Continuous Operating Voltage (Uc) 320VAC 50/60Hz
Dc spark-over voltage at 100 V/s >500V
Requirement Class to IEC61643-1 Class I+II
IEEE Category Rating C & B
Nominal Discharge Current (In) 25kA
Max. Discharge Current (Imax) 50kA
Pulsed Current (Iimp) 25kA
Residual Voltage (Ures @6kV/3kA) 1.5kV
Protection Modes L-PE, N-PE
Protective Element 3-layer High Energy GDT+MOV
Follow Current (If) 3kA rms (at 320V) / 5kA rms (at 255V)
Response Time (tA) <100ns
Activation YES
Thermal Protection YES
Leakage Current (at 75%U1mA) YES
Fault Indication YES
Protection Rating (IP Code) IP 20
Short Circuit Current Ratings (SCCR) 25kA rms
Max. Back-up Fuse (if mains >315A) 315A gL (circuit-breaker: <160A)
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid) / 25mm² (stranded)
Stripping Length Contacts 0.6inches (15mm)
Terminal Screw Torque Max. 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 35.8mm (2TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Modular design
Net Weight Per Unit 0.57Lb (259g)
Package Dimension (W×H×D) 1.4"×3.6"×2.6" (35.8mm×99mm×66.5mm)
Remote Contacts YES
Contact Ratings 125VAC/3A, 250VAC/1.5A
Terminal Cross Section Max. 1.5mm²
Stripping Length Contacts 0.25inches (6-7mm)
Remote Terminal Torque 0.25Nm
