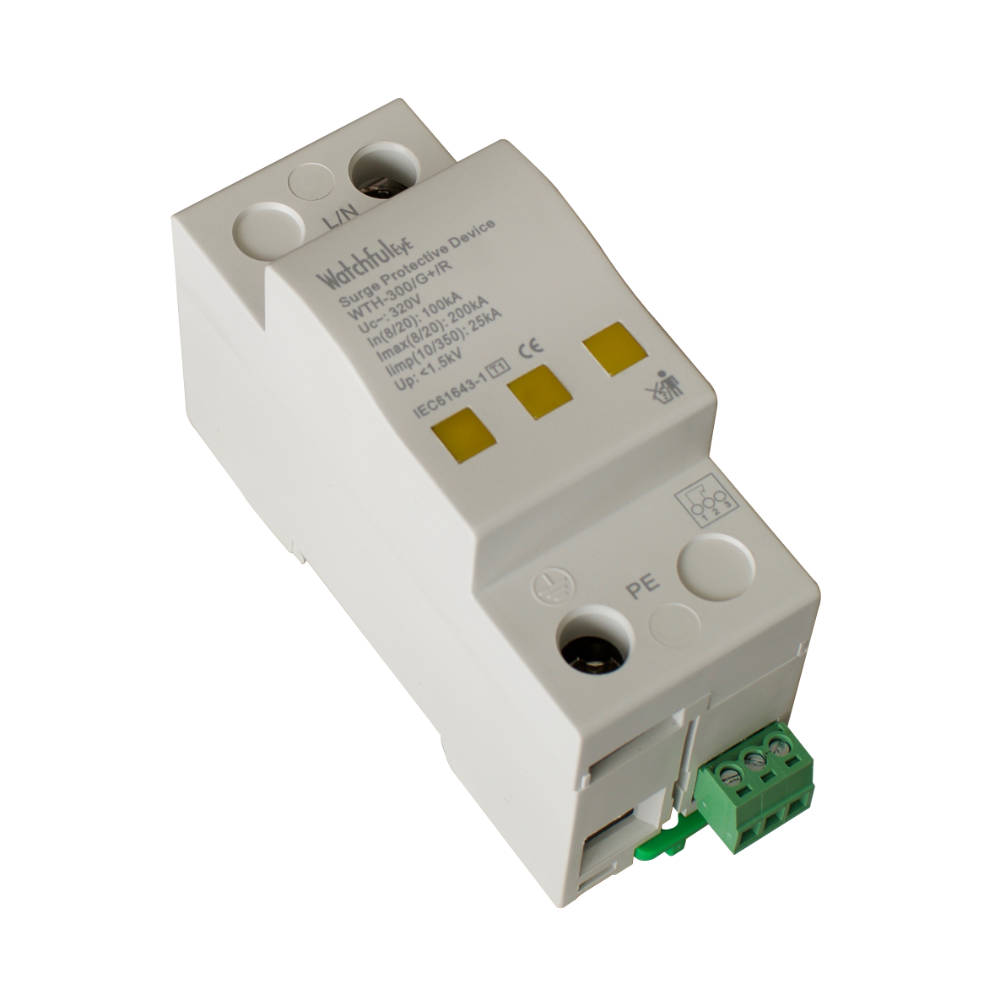

WTH-300/G/...320
www.watchfuleyesolutions.com Surge Protective Device for AC Power Supply System

Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US120281x3.html

Description
In accordance with: IEC 61643-1 - Class I and UL1449 Type 4 Location
Location of use: main sub-distribution boards
Built-in 7-layer High Energy GDT: Safely applied to L-PE mode to realize Class I surge protection.

Ordering Information
Model Ordering code
WTH-300/G/1P-320 US120281
WTH-300/G/1P-320 x2pcs US120281x2
WTH-300/G/1P-320 x3pcs US120281x3
WTH-300/G/1P-320 x4pcs US120281x4

Technical Data
Model WTH-300/G/1P-320
Max. Continuous Operating Voltage (Uc) 320V 50/60Hz
Dc spark-over voltage at 100 V/s >500V
Requirement Class to IEC61643-1 Class I
IEEE Category Rating C & B
Nominal Discharge Current (In) 100kA
Max. Discharge Current (Imax) 200kA
Pulsed Current (Iimp) 25kA
Residual Voltage (Ures @6kV/3kA) 1.5kV
Protection Modes L-PE, N-PE
Protective Element 7-layer High Energy GDT
Follow Current (If) 3kA rms (at 320V) / 5kA rms (at 255V)
Response Time (tA) <100ns
Leakage Current (at 75%U1mA) None
Fault Indication NO
Protection Rating (IP Code) IP 20
Short Circuit Current Ratings (SCCR) 25kA rms
Max. Back-up Fuse (if mains >315A) 315A gL (circuit-breaker: <160A)
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid) / 25mm² (stranded)
Stripping Length Contacts 0.6inches (15mm)
Terminal Screw Torque Max. 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 35.8mm (2TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Compact design
Net Weight Per Unit 0.57Lb (259g)
Package Dimension (W×H×D) 1.4"×3.6"×2.6" (35.8mm×90mm×66.5mm)
Remote Contacts NO
Contact Ratings 125VAC/3A, 250VAC/1.5A
Terminal Cross Section Max. 1.5mm²
Stripping Length Contacts 0.25inches (6-7mm)
Remote Terminal Torque 0.25Nm

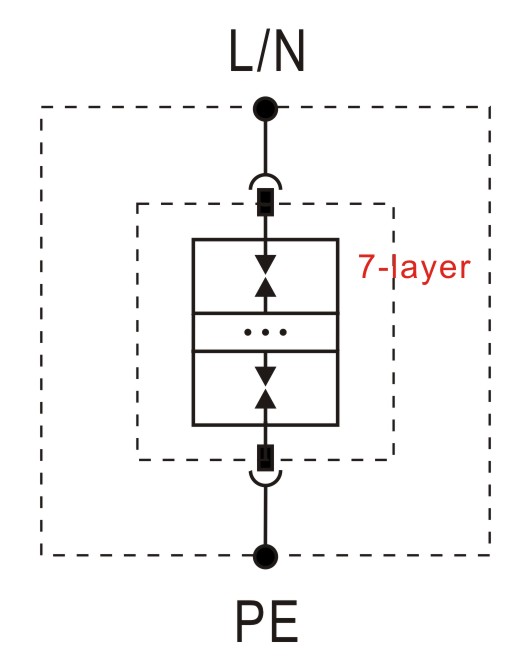

Connection Diagram

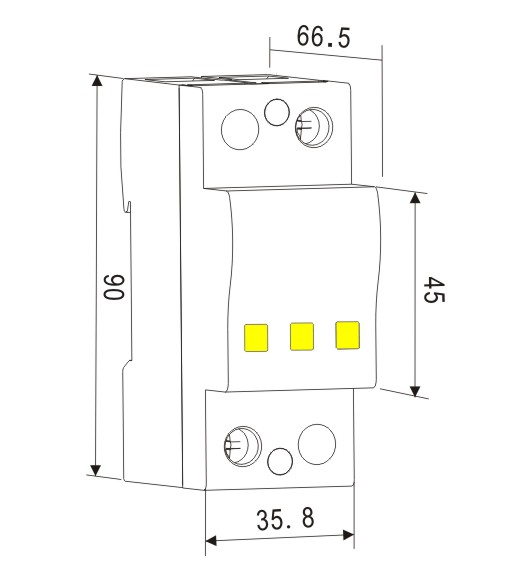

Dimensions
