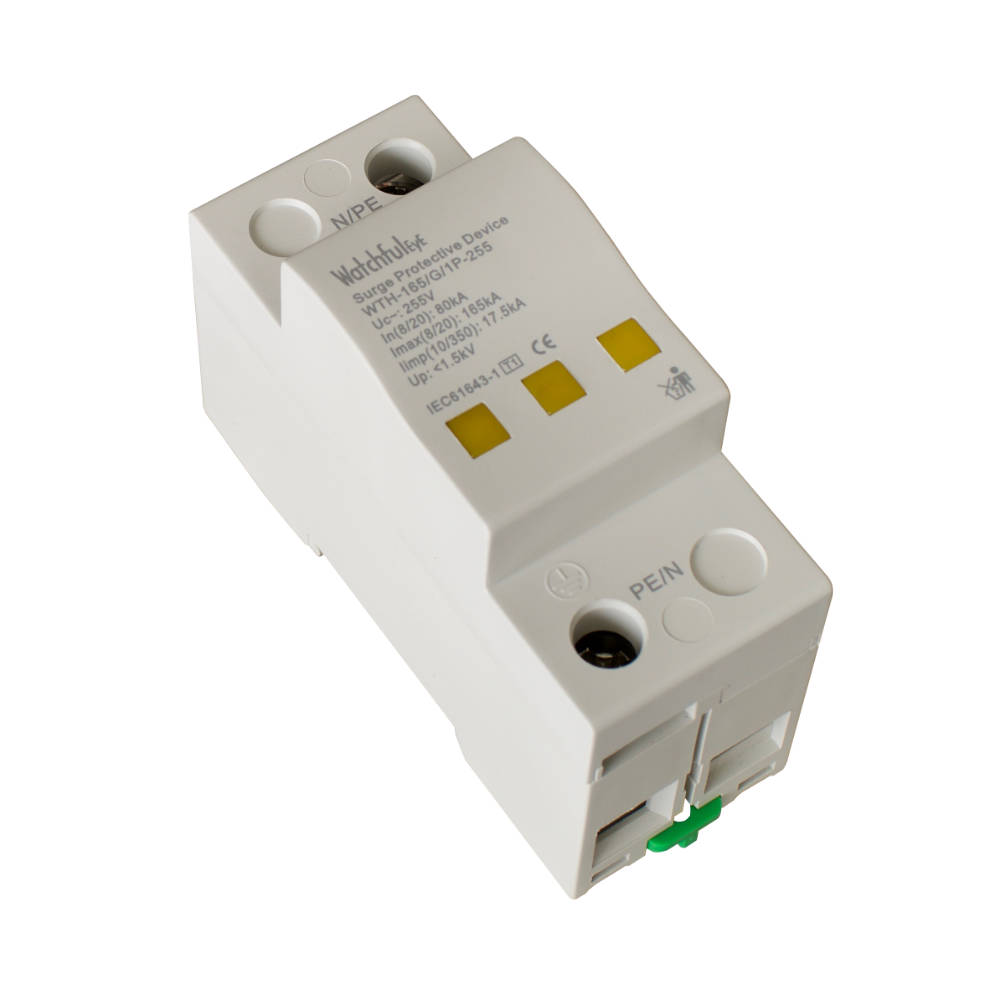

WTH-165/G/1P-255
www.watchfuleyesolutions.com Surge Protective Device for AC Power Supply System
Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US120289.html
Description
In accordance with: IEC 61643-1 - Class I and UL1449 Type 4 Location
Location of use: main sub-distribution boards
Built-in High Energy GDT: Safely applied to N-PE mode to realize Class I surge protection.
Technical Data
Model WTH-165/G/1P-255
Ordering Code US120289
Max. continuous operating voltage (Uc) 255V
Frequency 50/60Hz
Dc spark-over voltage at 100 V/s >500V (Uimp: 950V)
Requirement Class to IEC61643-1 Class I
IEEE Category Rating C & B
Nominal Discharge Current (In) 80kA
Max. Discharge Current (Imax) 165kA
Pulsed Current (Iimp) 52.5kA
Voltage protection level (Up) 1.5kV
Residual voltage (Ures @6kV/3kA) 1.0kV
Protection Modes N-PE
Protective Element High Energy GDT
Follow Current (If) 100A rms
Response Time (tA) <100ns
Leakage Current (at 75%U1mA) None
Thermal Protection NO
Fault Indication NO
Protection Rating (IP Code) IP 20
Short Circuit Current Ratings (SCCR) 20kA rms
Max. Back-up Fuse None
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid) / 25mm² (stranded)
Stripping Length Contacts 0.6inches (15mm)
Terminal Screw Torque Max. 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 35.8mm (2TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Compact design
Net Weight Per Unit 0.4Lb (180g)
Package Dimension (W×H×D) 1.4"×3.6"×2.6" (35.8mm×90mm×66.5mm)
Remote Contacts NO
Contact Ratings 125VAC/3A, 250VAC/1.5A
Terminal Cross Section Max. 1.5mm²
Stripping Length Contacts 0.25inches (6-7mm)
Remote Terminal Torque 0.25Nm

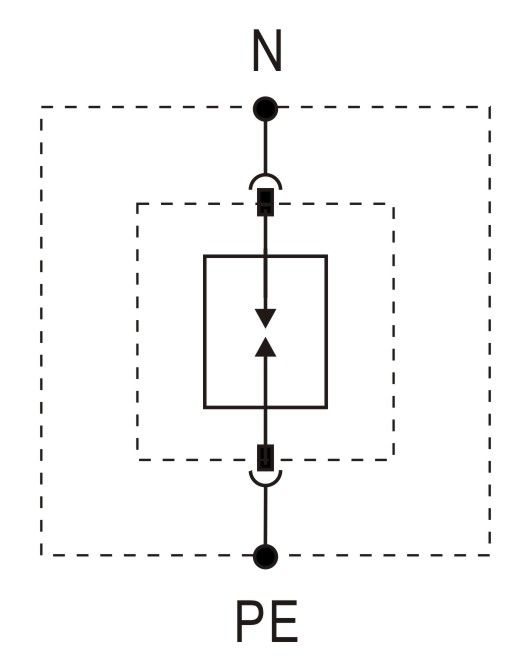

Connection Diagram
