Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121002.html

Model & Ordering Code

Model Ordering Code Connection Un Uc Up
WTH-SG/TD-12 US121001 Series Connection 12V 18V 400V
WTH-SG/TD-24 US121002 Series Connection 24V 36V 400V
WTH-SG/TD-48 US121004 Series Connection 48V 60V 600V
※ Un: Nominal operating voltage
※ Uc: Max. continuous operating voltage
※ Up (8/20μs, @line-GND/PE): Voltage protection level

Certificates of Products

www.watchfuleyesolutions.com - Page 01 - Back to TOP -

Description
WTH-SG/TD series surge protective devices for DC power are applied to the front side of the device in power supply line of different voltage, such as computer system, modem, signal control, etc.
Providing protection against overvoltage arising from lightning or mis-operation.
(Standards compliance: IEC61643-11)
WTH-SG/TD Series Technical Data
Nominal Discharge Current (In @8/20μs) 5kA
Max. Discharge Current (Imax @8/20μs) 10kA
Max Load current 2.5A
Protective Element GDT, MOV
Connection Series Connection
Response Time (tA) <100ns (GDT), <25ns (MOV)
Protect mode Difference mode & Common mode
Connection mode Wiring terminal
Temperature Range - 40° to 176°F (-40° to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Protection Rating (IP Code) IP 20
Surge Life at 0.5kA (8/20μs) > 2000 events
DIN Rail EN60715 35mm top-hat rail
Housing Material Thermoplastic, UL94 V-0


Installation Instruction
The surge protective devices shall be employed in a Listed enclosure or closet that is only accessible to technicians or service personnels.

www.watchfuleyesolutions.com - Page 02 - Back to TOP -
.

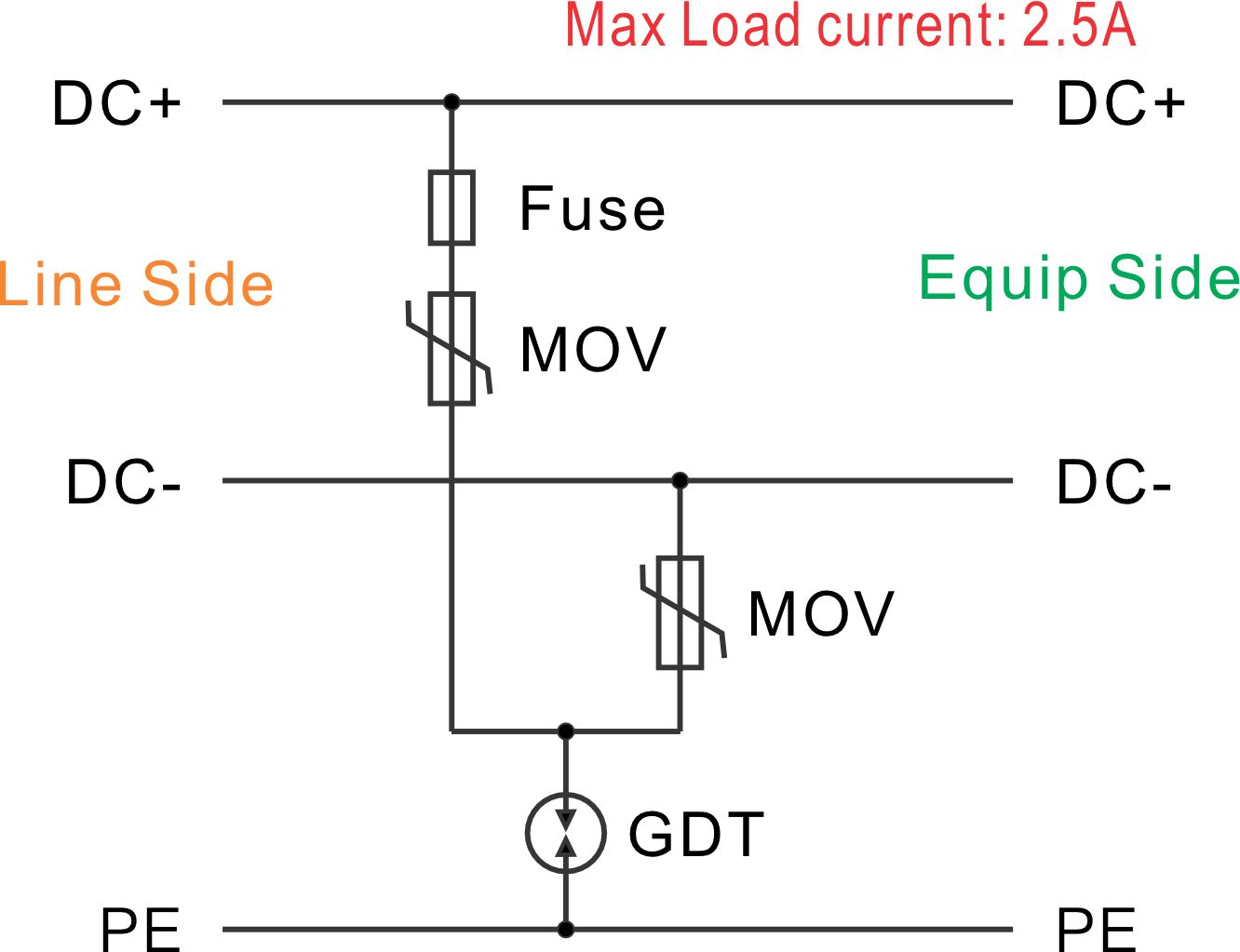

WTH-SG/TD Series Connection Diagram

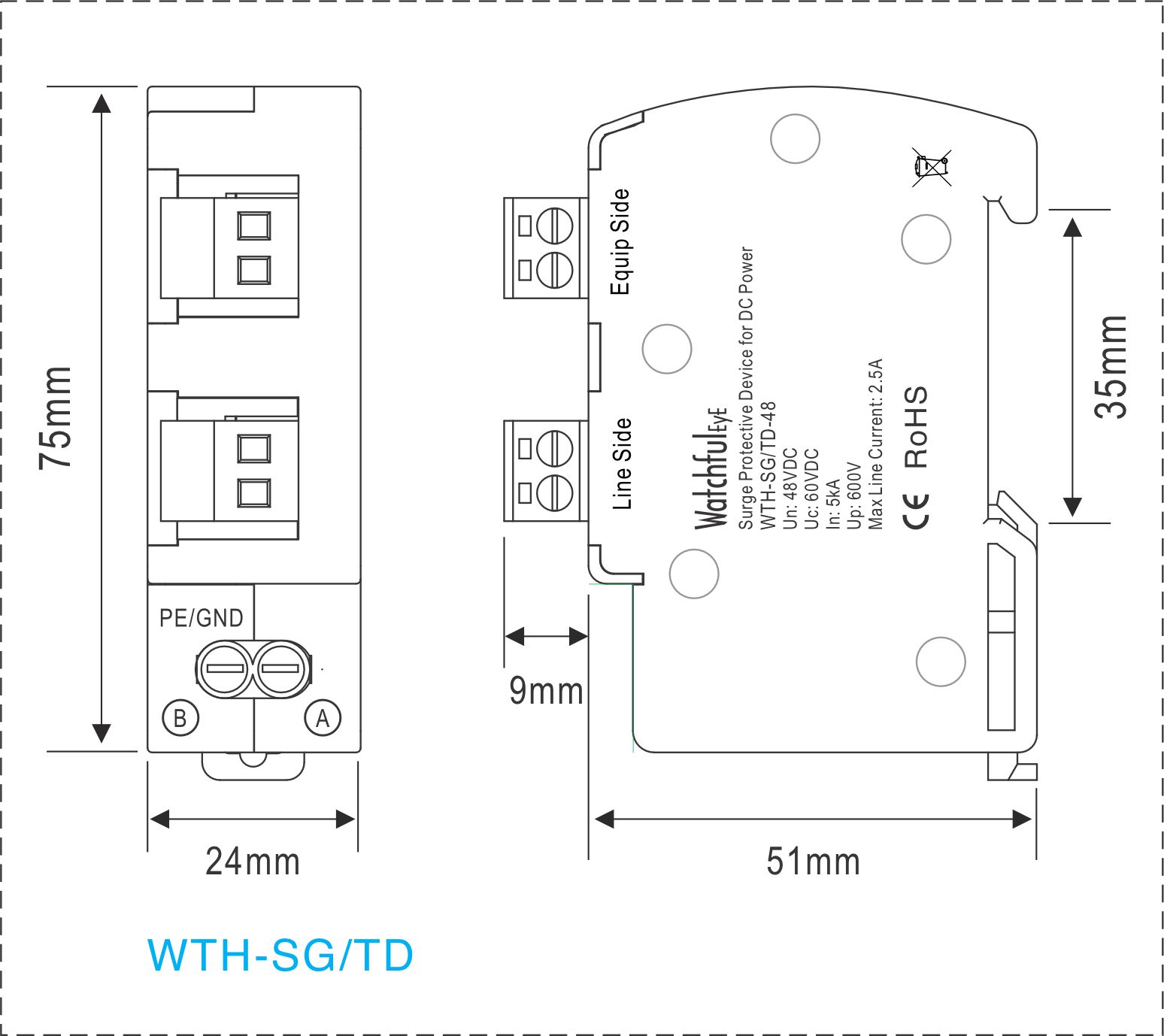

WTH-SG/TD Dimensions

www.watchfuleyesolutions.com - Page 03 - Back to TOP -

FAQ & Help
1. What should I do if I can't find the paper manual in the product packaging?
Watchful Eye products is committed to going green with paperless data sheets. On the side of each product enclosure is an engraved link with URL for downloading paperless data sheet and QR code of the website. If you need the paper data sheet, you can open the link and print the data sheet by yourself.


2. Model WTH-SG/TD has no LED status indicator. What instruments can be used to test whether its surge protection function is normal or not?
Test with a Watchful Eye surge protector tester.
If a system failure occurs, first remove the surge protector and restore the system to the wiring status without the surge protector. If the system failure is solved, it shows the surge protector is faulty. Using Watchful Eye Surge Protective Tester can more easily test whether the WTH-SG/TD series is normal or not.


www.watchfuleyesolutions.com - Page 04 - Back to TOP -
