WatchfulEyeSolutions

Paperless Datasheet

Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121145.html

Description

WTH-SG/RJ45 series surge protective devices are applied to surge protection for data communication systems.
WTH-SG/RJ45-KE series is connected in series in CAT6 network cables, compatible with 10/100/1000/10000 (10G) Base-T Ethernet systems, protecting the equipment which are connected to the network (e.g. computers, routers, PoE devices, etc.) against damages by over-voltage surge.
(Standards compliance: IEC61643-21, UL497B, IEEE 802.3af PoE/802.3 at PoE Plus)

Technical Data

Full Protection Model	WTH-SG/RJ45-KE
More Protection Modes & Ordering Code	View Page 2
Nominal operating voltage (Un)	2.8V(Ethernet)/48V(PoE)
Max. continuous operating voltage (UC)	3V(Ethernet)/60V(PoE)
Nominal Discharge Current (In @8/20μs)	3kA (line to line)
Max. Discharge Current (Imax @8/20μs)	20kA (line to GND/PE)
Voltage protection level (Up @line-line)	50V @ 3kV (1.2/50)
Voltage protection level (Up @line-GND/PE)	700/800V @ 3kV (1.2/50)
Max Line Current	600mA (PoE)
Data Rate	100/1000Mbps
Bandwidth (3db) per pair	>250MHz
Insertion Loss	<0.5dB @100MHz
Line-GND/PE Protected	8-line Protection
Pairs Protected	1-2, 3-6, 4-5, 7-8
Protective Element	GDT (line-GND/PE), TVS (line-line)
Voltage Breakdown Range, Vdc @ 100 V/s	2.4-188 (L-L) / 72-108(L-G)
Impulse Voltage Range,Vdc @ 100 V/µs	<1000
Line 5-8 Protected	YES
Response Time (tA)	<100ns (line-GND/PE), <1ns (line-line)
Connection mode	RJ45
Temperature Range	- 40° to 176°F (-40° to 80°C)
Relative Humidity	0% to 95% noncondensing
Maximum Operating Altitude	10,000 feet (3000m)
Protection Rating (IP Code)	IP 65
Surge Life at 0.5kA (8/20μs)	>2000 events
DIN Rail EN60715	35mm top-hat rail (Option)
Housing Material	Thermoplastic, UL94 V-0
Net Weight Per Unit	0.35Lb (160g)
Package Dimension (W×H×D)	5.4"×5.2"×1.9" (136mm×132mm×47mm)

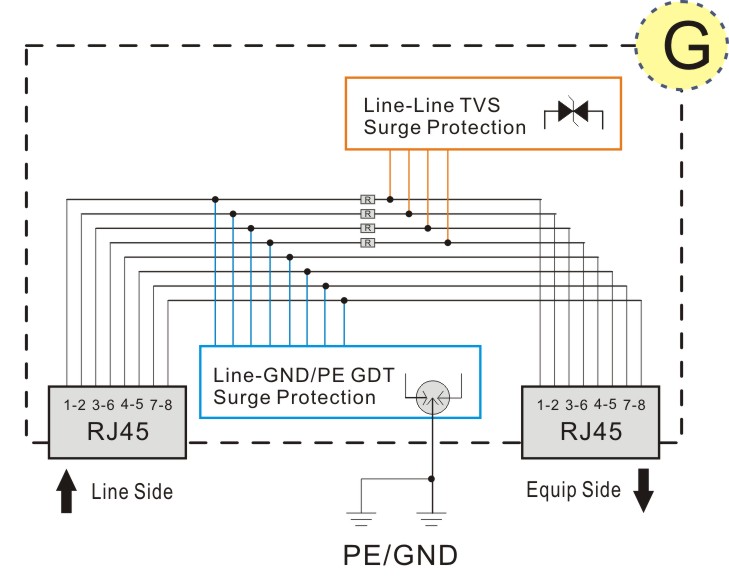

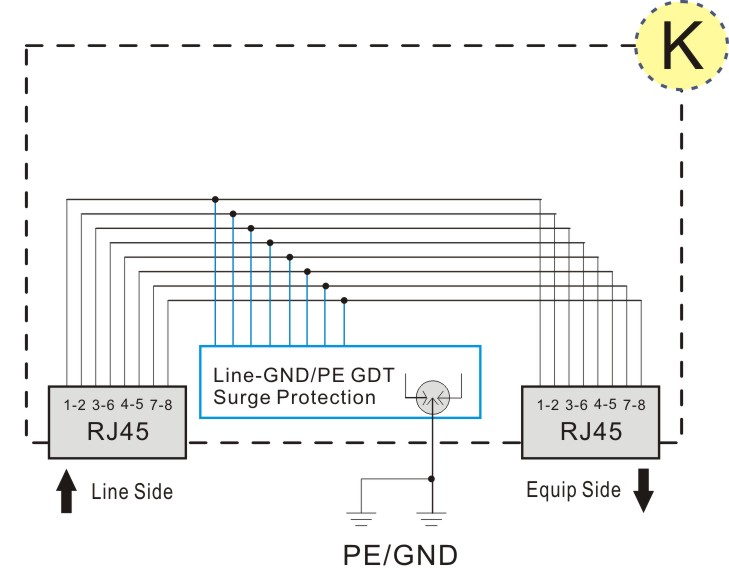

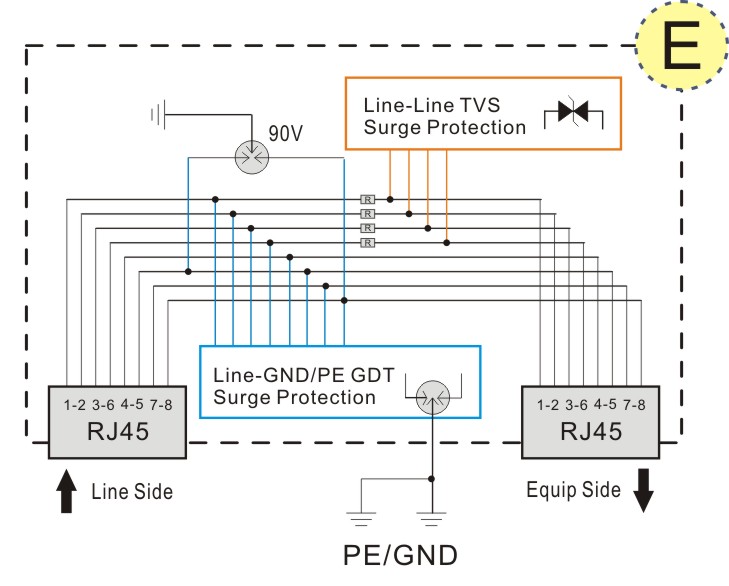

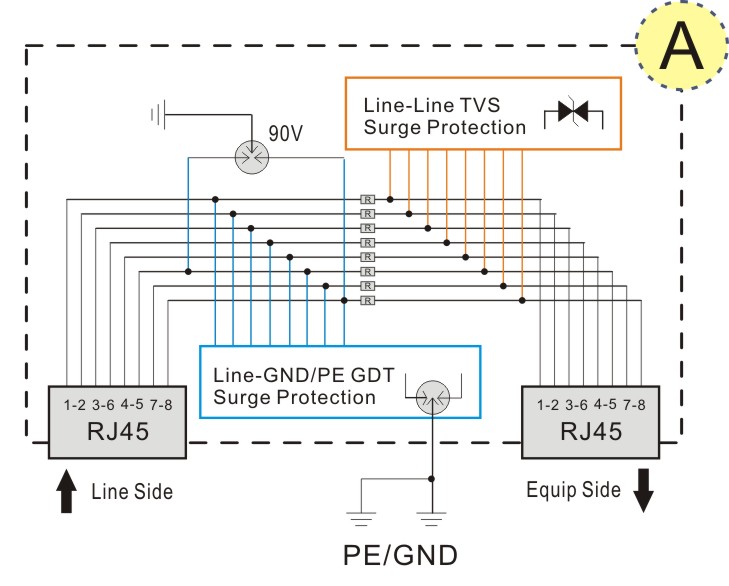

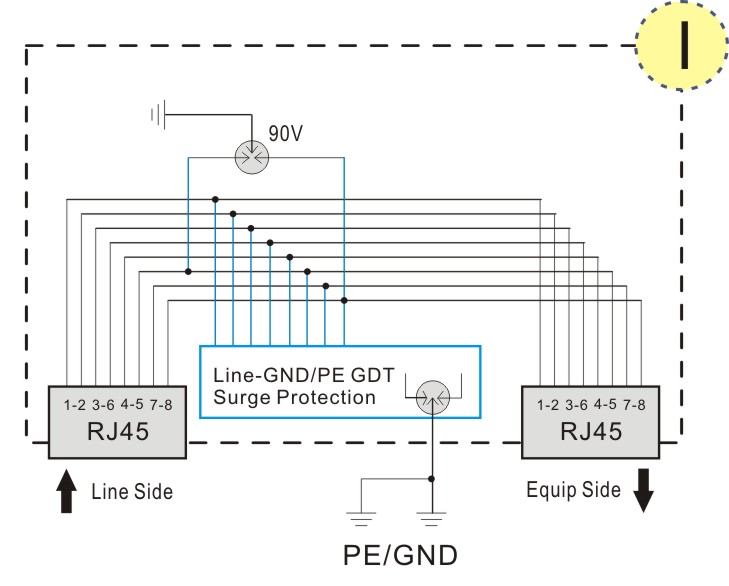

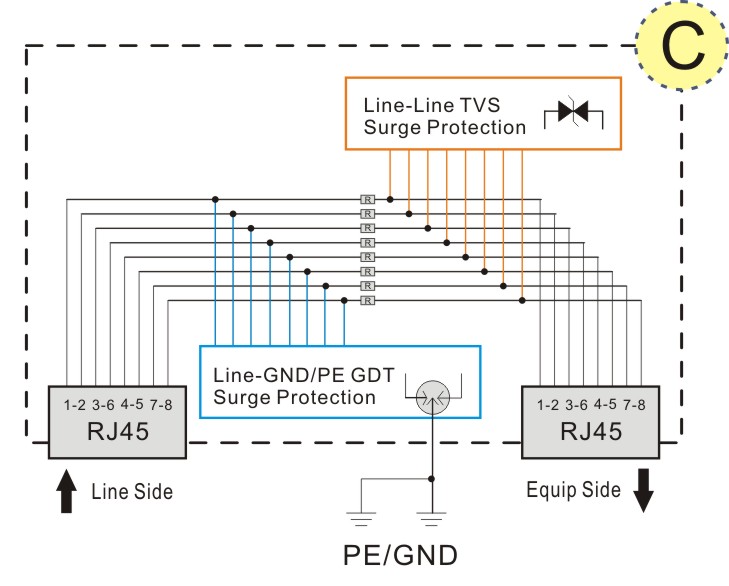

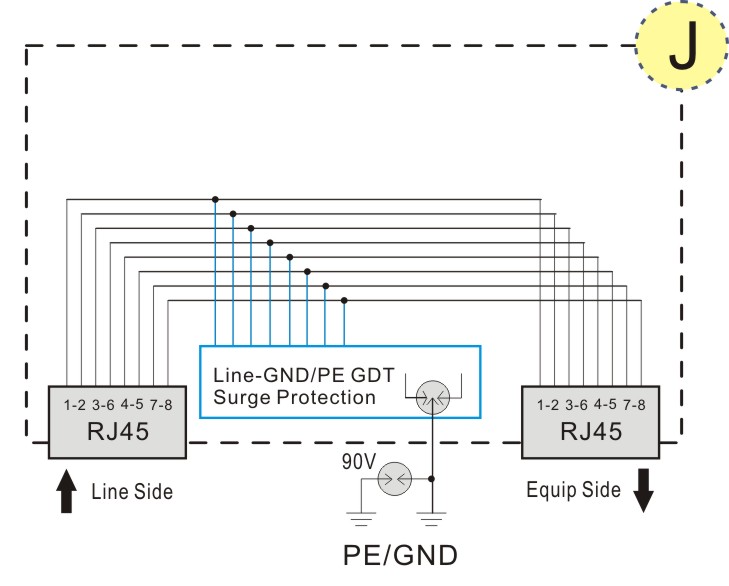

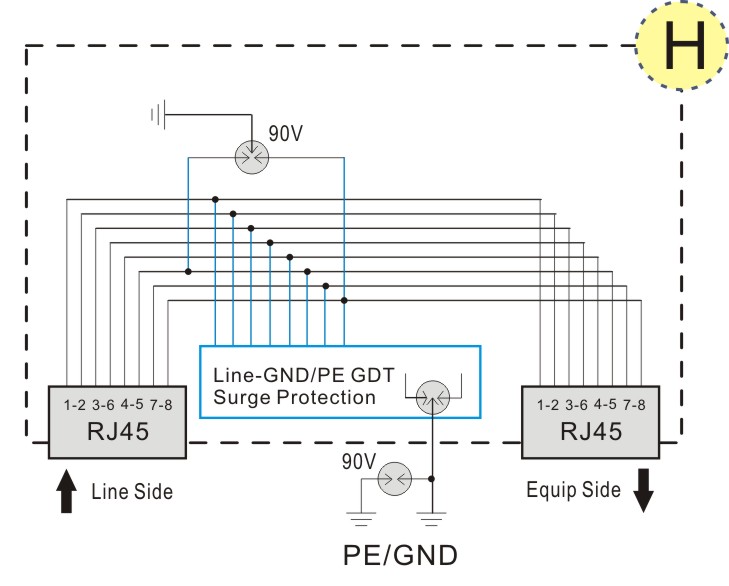

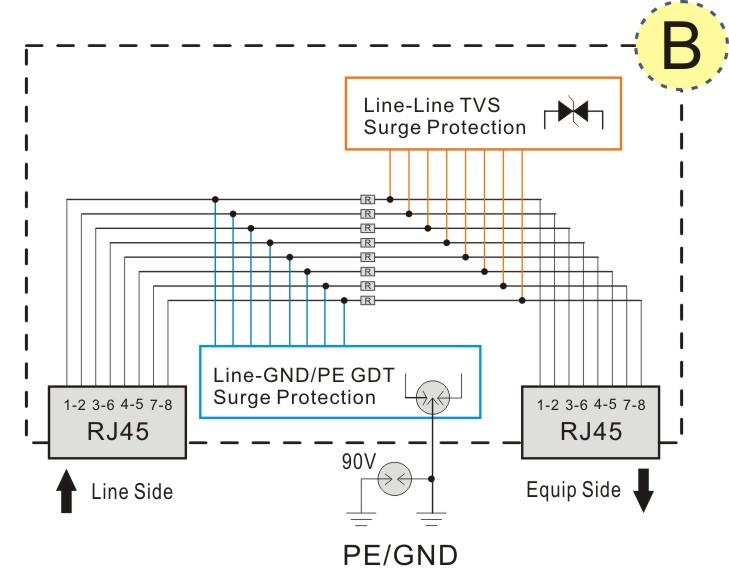

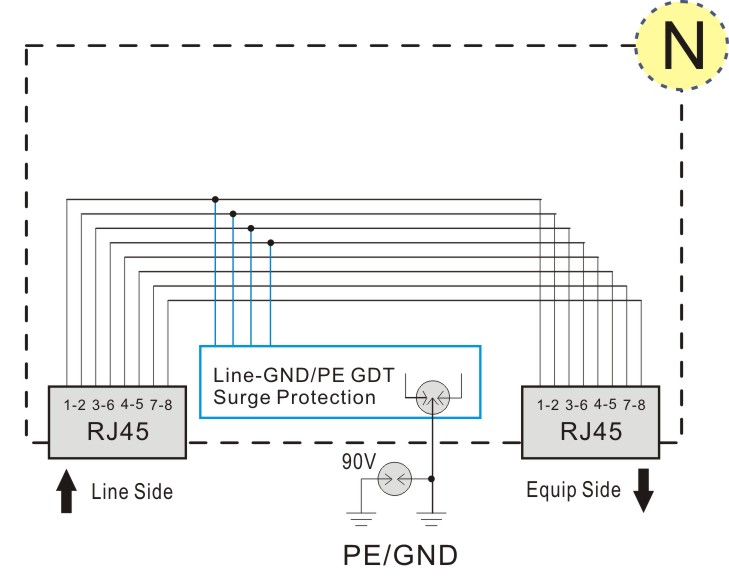

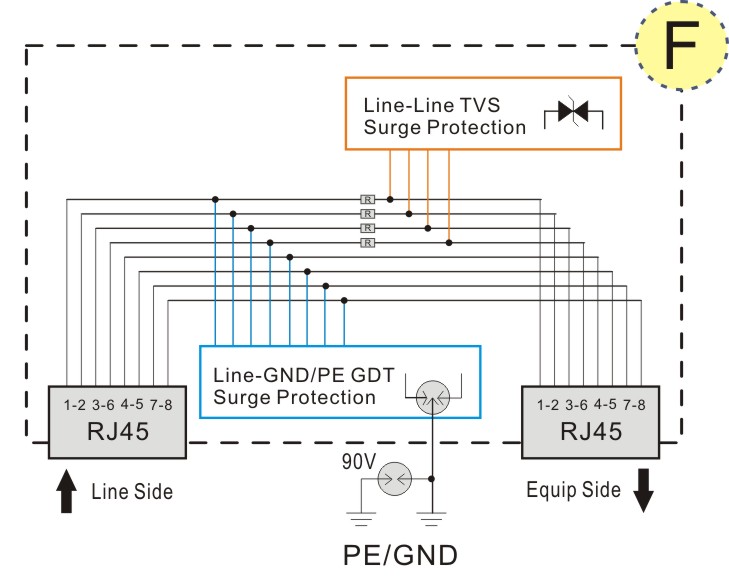

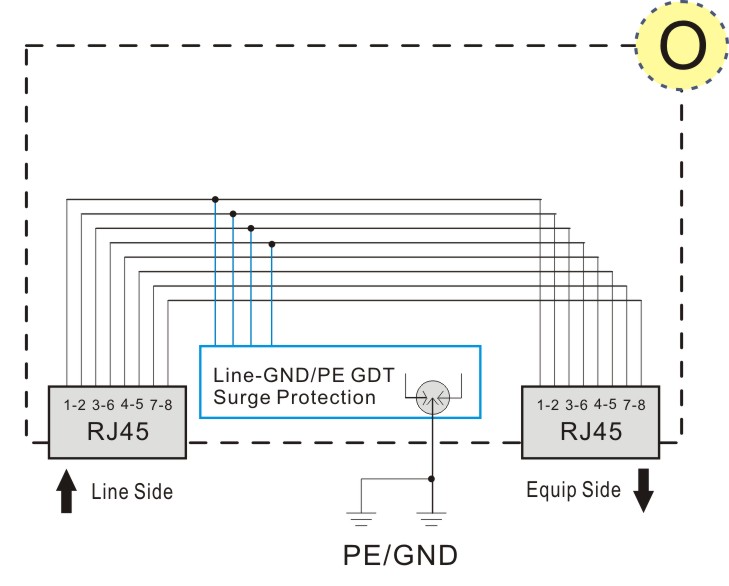

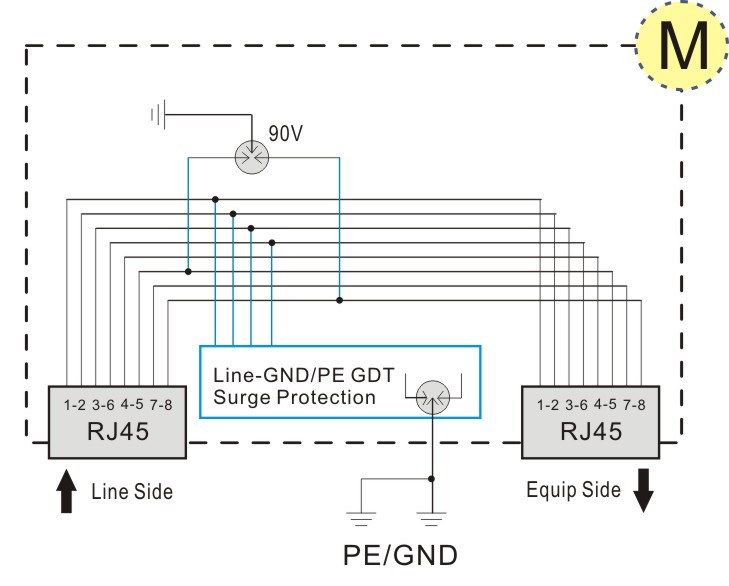

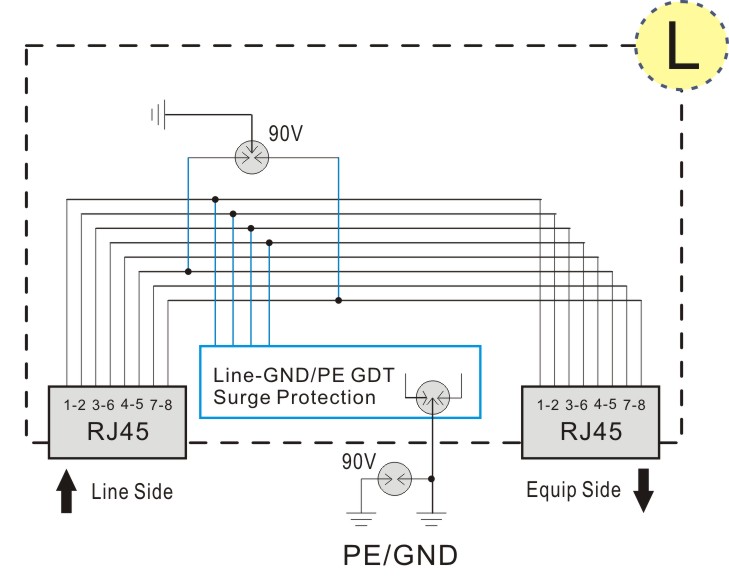

Connection Diagram

Dimensions

Visit us at

More Protection Modes:


WTH-SG/RJ45-KE (US121103)	WTH-SG/RJ45-KE-A (US121141)	WTH-SG/RJ45-KE-B (US121142)	WTH-SG/RJ45-KE-C (US121143)


WTH-SG/RJ45-KE-D (US121144)	WTH-SG/RJ45-KE-E (US121145)	WTH-SG/RJ45-KE-F (US121146)	WTH-SG/RJ45-KE-G (US121147)


WTH-SG/RJ45-KE-H (US121148)	WTH-SG/RJ45-KE-I (US121149)	WTH-SG/RJ45-KE-J (US121150)	WTH-SG/RJ45-KE-K (US121151)


WTH-SG/RJ45-KE-L (US121152)	WTH-SG/RJ45-KE-M (US121153)	WTH-SG/RJ45-KE-N (US121154)	WTH-SG/RJ45-KE-O (US121155)

	WTH-SG/RJ45-KE Series
www.watchfuleyesolutions.com	Surge Protective Device for Ethernet & PoE
