WTH-SG/RJ45-KG Series
www.watchfuleyesolutions.com Surge Protective Device for Ethernet & PoE

Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121176.html

Description
WTH­-SG/RJ45 series surge protective devices are applied to surge protection for data communication systems.
WTH-SG/RJ45-KG series is connected in series in CAT6 network cables, compatible with 10/100/1000/10000 (10G) Base-T Ethernet systems, protecting the equipment which are connected to the network (e.g. computers, routers, PoE devices, etc.) against damages by over-voltage surge.
(Standards compliance: IEC61643­-21, UL497B, IEEE 802.3af PoE/802.3 at PoE Plus)

Technical Data
Full Protection Model WTH-SG/RJ45-KG
More Protection Modes & Ordering Code View Page 2
Nominal operating voltage (Un) 2.8V(Ethernet)/48V(PoE)
Max. continuous operating voltage (UC) 3V(Ethernet)/60V(PoE)
Nominal Discharge Current (In @8/20μs) 3kA (line to line)
Max. Discharge Current (Imax @8/20μs) 20kA (line to GND/PE)
Voltage protection level (Up @line-line) 50V @ 3kV (1.2/50)
Voltage protection level (Up @line-GND/PE) 700/800V @ 3kV (1.2/50)
Max Line Current 600mA (PoE)
Data Rate 100/1000Mbps
Bandwidth (3db) per pair >250MHz
Insertion Loss <0.5dB @100MHz
Line-GND/PE Protected 8-line Protection
Pairs Protected 1-2, 3-6, 4-5, 7-8
Protective Element GDT (line-GND/PE), TVS (line-line)
Voltage Breakdown Range, Vdc @ 100 V/s 2.4-188 (L-L) / 72-108(L-G)
Impulse Voltage Range,Vdc @ 100 V/µs <1000
Line 5-8 Protected YES
Response Time (tA) <100ns (line-GND/PE), <1ns (line-line)
Connection mode RJ45
Temperature Range - 40° to 176°F (-40° to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Protection Rating (IP Code) IP 65
Surge Life at 0.5kA (8/20μs) >2000 events
Housing Material Thermoplastic, UL94 V-0
Net Weight Per Unit 0.36Lb (163g)
Product Dimension (W×H×D) 4.9"×3.5"x2.0" (122mm×89×50mm)



Dimensions

Visit us at

Page 02

More Protection Modes:

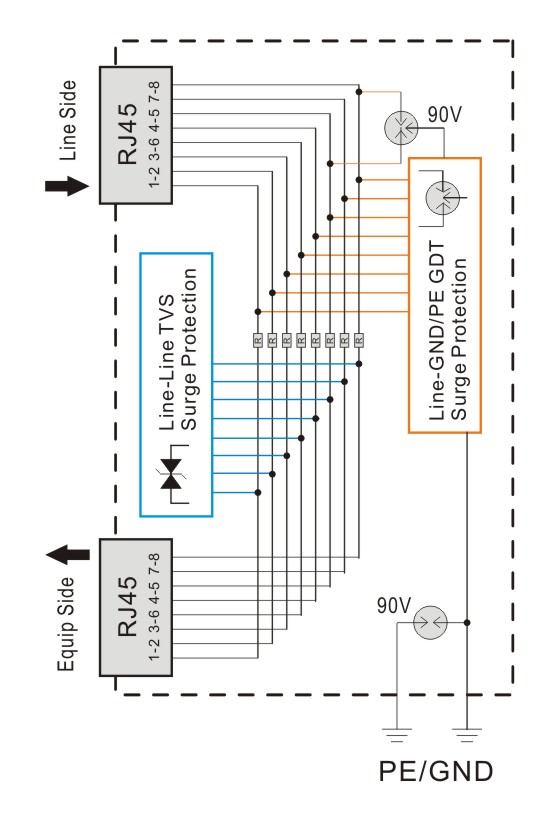

WTH-SG/RJ45-KG
(US121104)

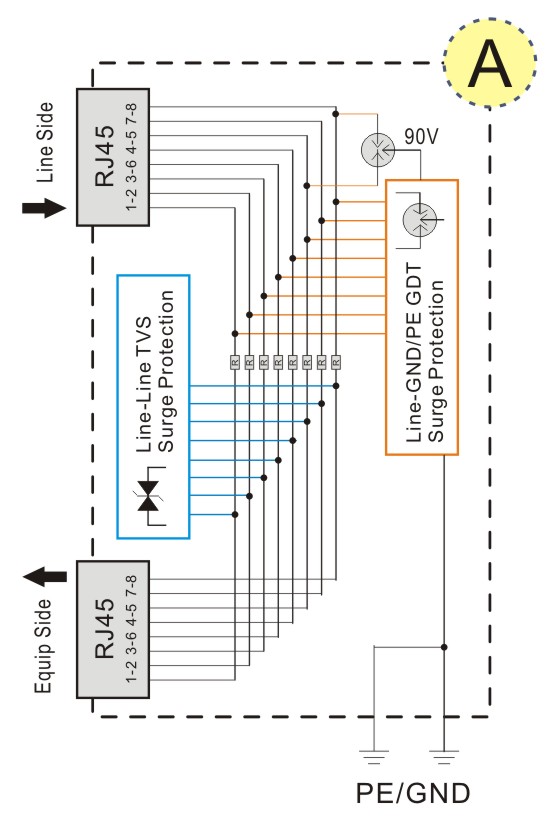

WTH-SG/RJ45-KG-A
(US121161)

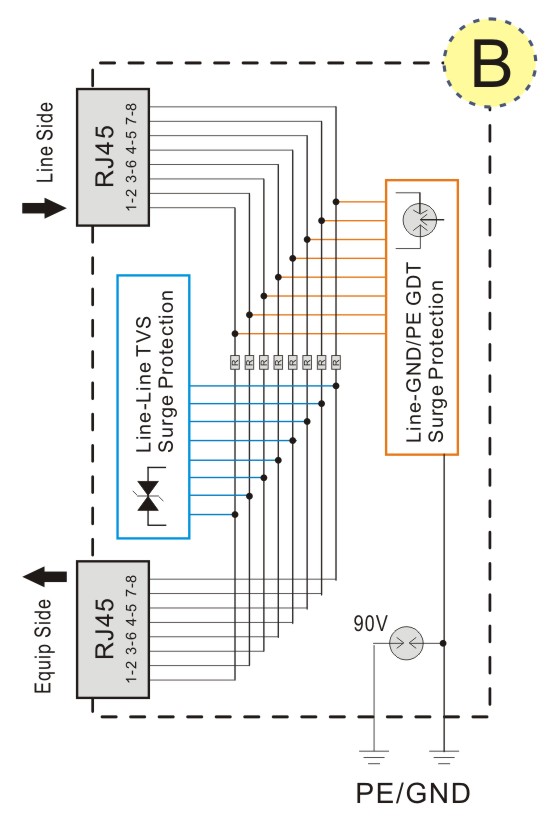

WTH-SG/RJ45-KG-B
(US121162)

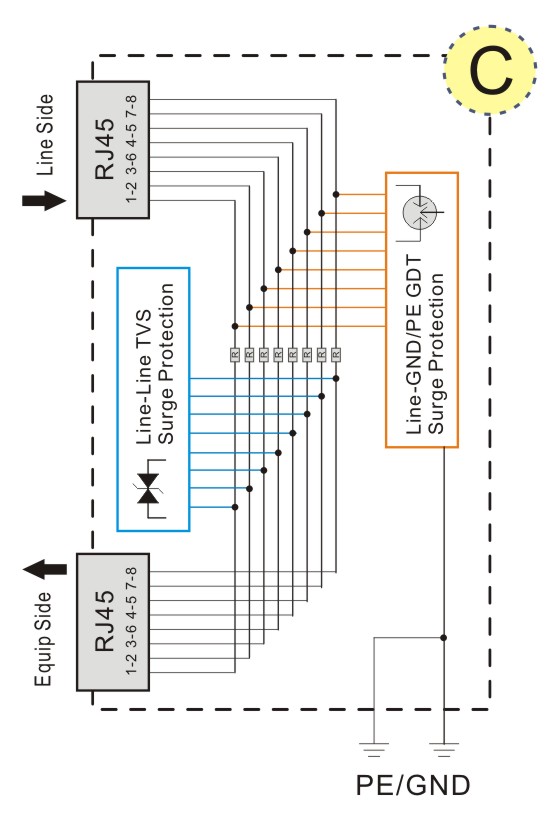

WTH-SG/RJ45-KG-C
(US121163)

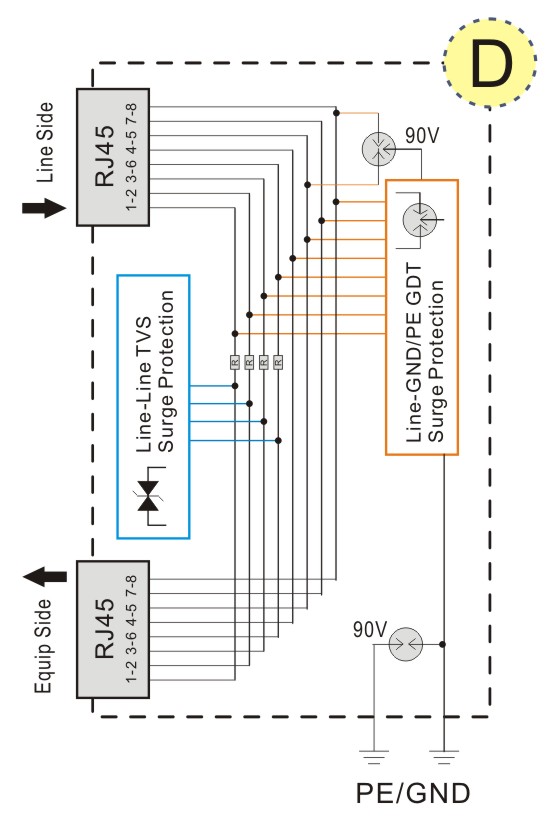

WTH-SG/RJ45-KG-D
(US121164)

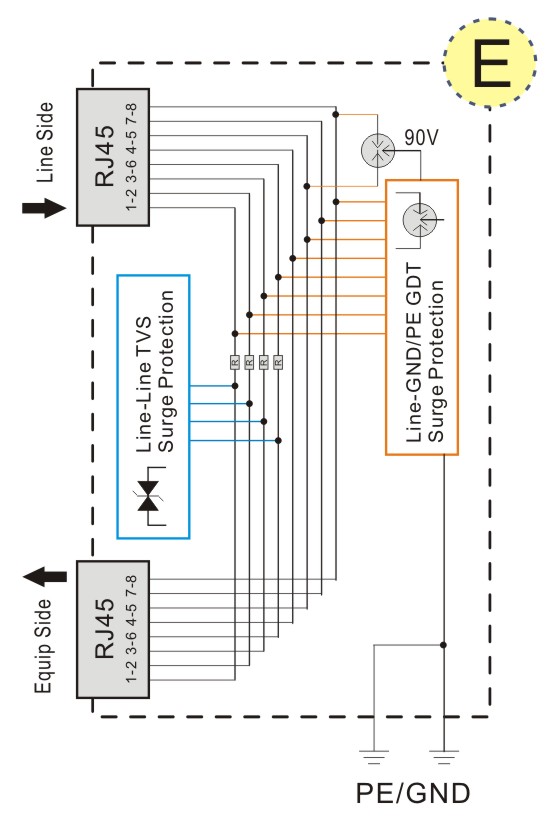

WTH-SG/RJ45-KG-E
(US121165)

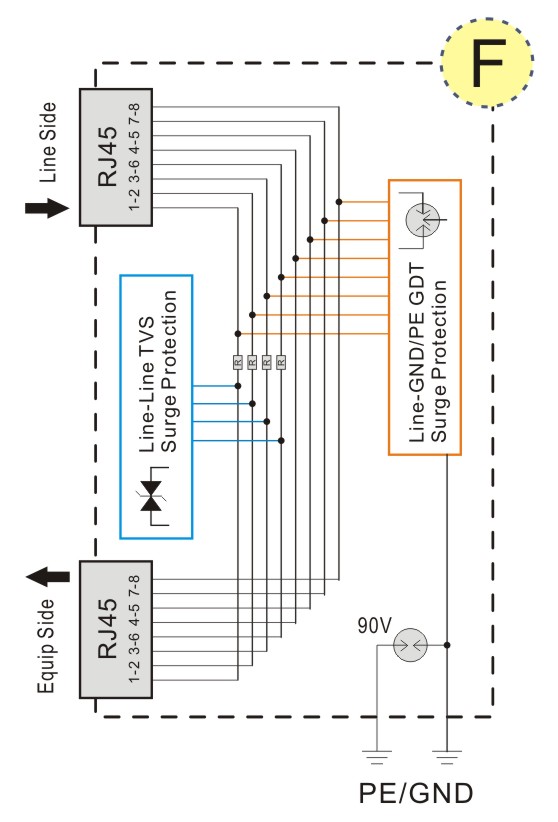

WTH-SG/RJ45-KG-F
(US121166)

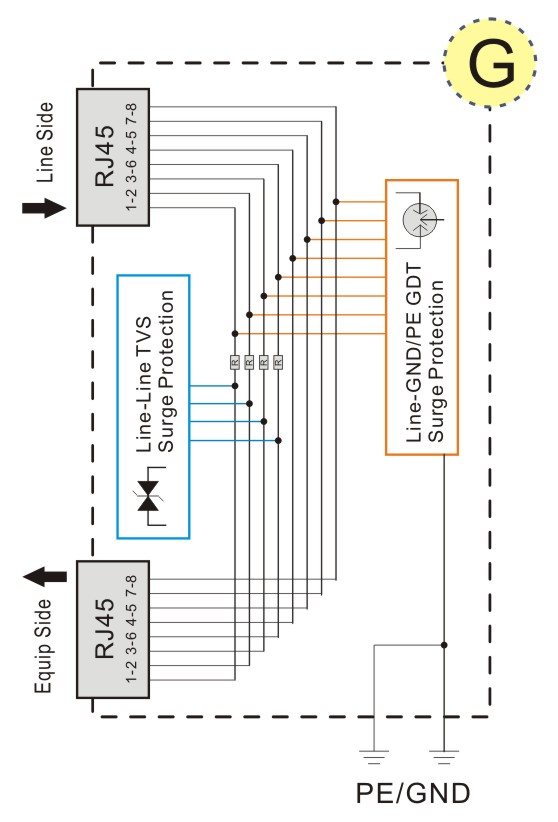

WTH-SG/RJ45-KG-G
(US121167)

WTH-SG/RJ45-KG-H
(US121168)

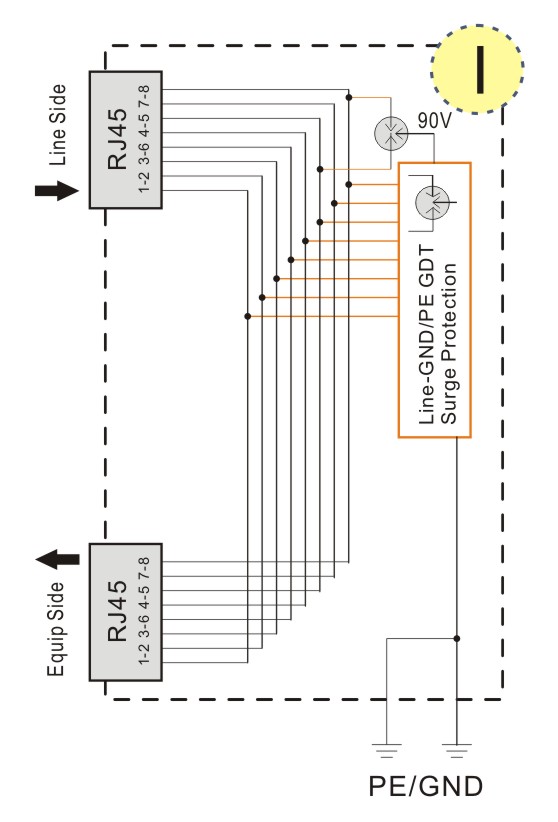

WTH-SG/RJ45-KG-I
(US121169)

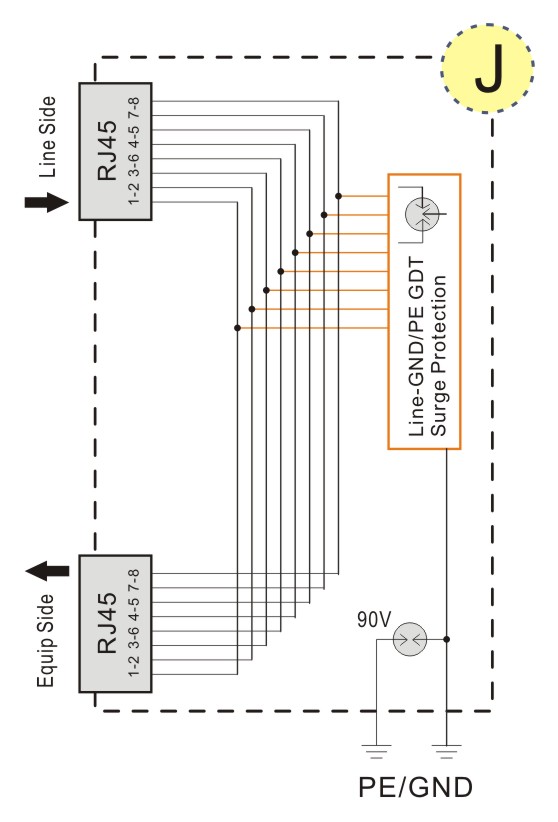

WTH-SG/RJ45-KG-J
(US121170)

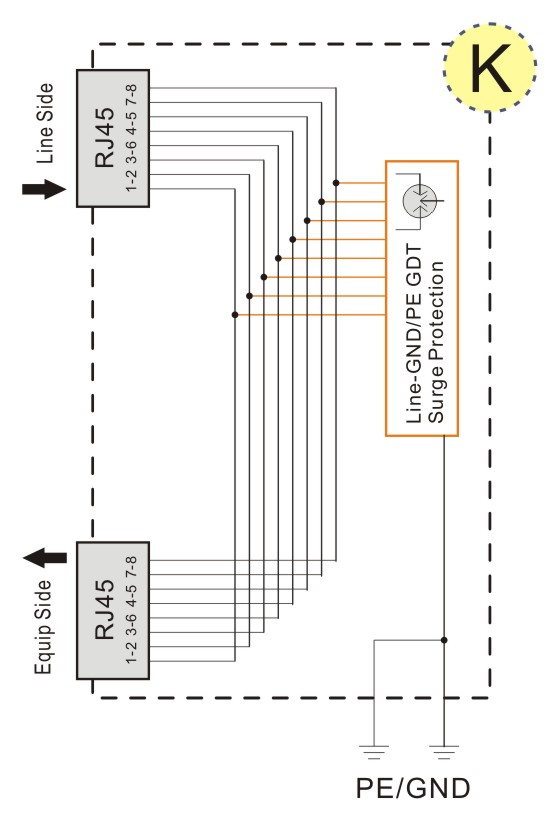

WTH-SG/RJ45-KG-K
(US121171)

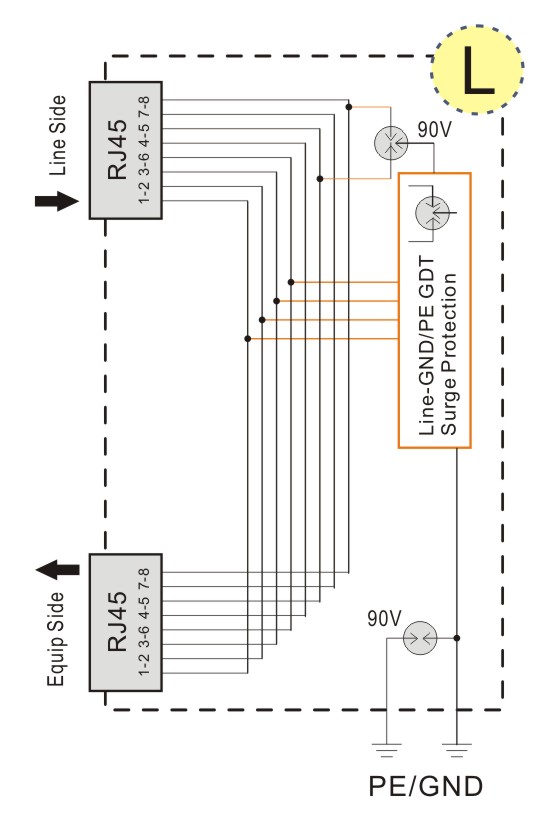

WTH-SG/RJ45-KG-L
(US121172)

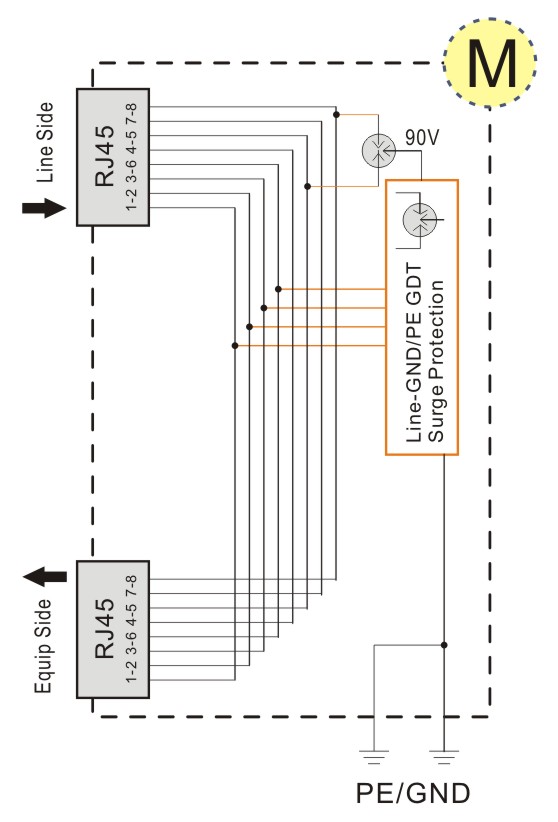

WTH-SG/RJ45-KG-M
(US121173)

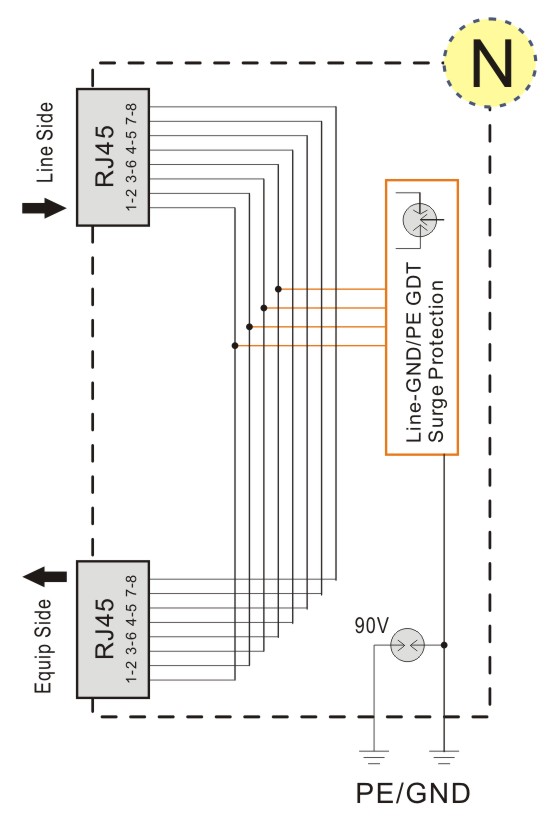

WTH-SG/RJ45-KG-N
(US121174)

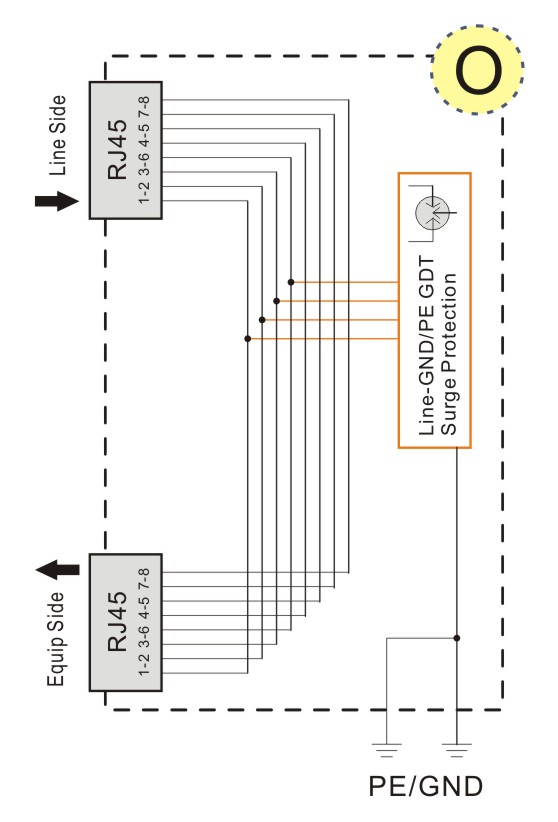

WTH-SG/RJ45-KG-O
(US121175)

Page 03

Application
