WTH-40/C/2P-PV RS485 Series
www.watchfuleyesolutions.com Surge Protective Device for Photovoltaic System
Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/USR120385.html
Description
In accordance with: IEC 61643-1 - Class II and UL1449 Type 4 Location
Location of use: Photovoltaic Combiner Box & Photovoltaic Power Supply Box
Plug-in module and separate base design enables convenient maintenance.
Network with RS485/Modbus, smart remote monitoring
WTH-40/C/...PV RS485 Series
Model Uc(pvdc) Up Ures Ordering code
WTH-40/C/2P-PV1000 RS485 1000V 3.4kV 2.8kV USR120391
WTH-40/C/2P-PV800 RS485 800V 2.8kV 2.2kV USR120392
WTH-40/C/2P-PV600 RS485 600V 2.5kV 1.9kV USR120332
WTH-40/C/2P-PV500 RS485 500V 2.2kV 1.6kV USR120385
WTH-40/C/2P-PV200 RS485 200V 1.5kV 1.0kV USR120337
WTH-40/C/2P-PV100 RS485 100V 1.3kV 0.8kV USR120333
※ Uc: Max. continuous operating voltage
※ Up: Voltage protection level ※ Ures @6kV/3kA: Residual voltage
Technical Data
Requirement Class to IEC61643-1 Class II
IEEE Category Rating B & A
Nominal Discharge Current (In) 20kA
Max. Discharge Current (Imax) 40kA
Pulsed Current (Iimp @10/350) N/A
Protection Modes DC+/PE, DC-/PE
Protective Element MOV
Follow Current (If) NO
Response Time (tA) <5ns
Leakage Current (at 75%U1mA) <20μA
Thermal Protection YES
Protection Rating (IP Code) IP 20
Short Circuit Current Ratings (SCCR) 20kA rms
Max. Back-up Fuse (if mains >80A) 80A gL (circuit-breaker: <40A)
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40°F to 176°F (-40°C to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Terminal Cross Section 35mm² (solid) / 25mm² (stranded)
Stripping Length Contacts 0.6inches (15mm)
Terminal Screw Torque Max. 3.5Nm
DIN Rail EN60715 35mm top-hat rail
Dimensions DIN 43880 54mm (3TE)
Housing Material Thermoplastic (UL94 V-0)
Housing Design Modular design
Net Weight Per Unit 0.71Lb (320g)
Package Dimension (W×H×D) 2.1"×3.9"×2.7" (54mm×98mm×69mm)
Smart Remote Monitoring YES
Surge Count 0-999
Network Connection RS485/Modbus
SPD Module Monitoring Built-in Integration

Smart Detector Connection Guide
1. Connect the induction coil of surge counter to the 2-port pluggable terminal block (no direction). Hitch the induction loop to the earthing line.
2. Connect USB line (5VDC) to micro usb port of surge counter, and then LED is on.

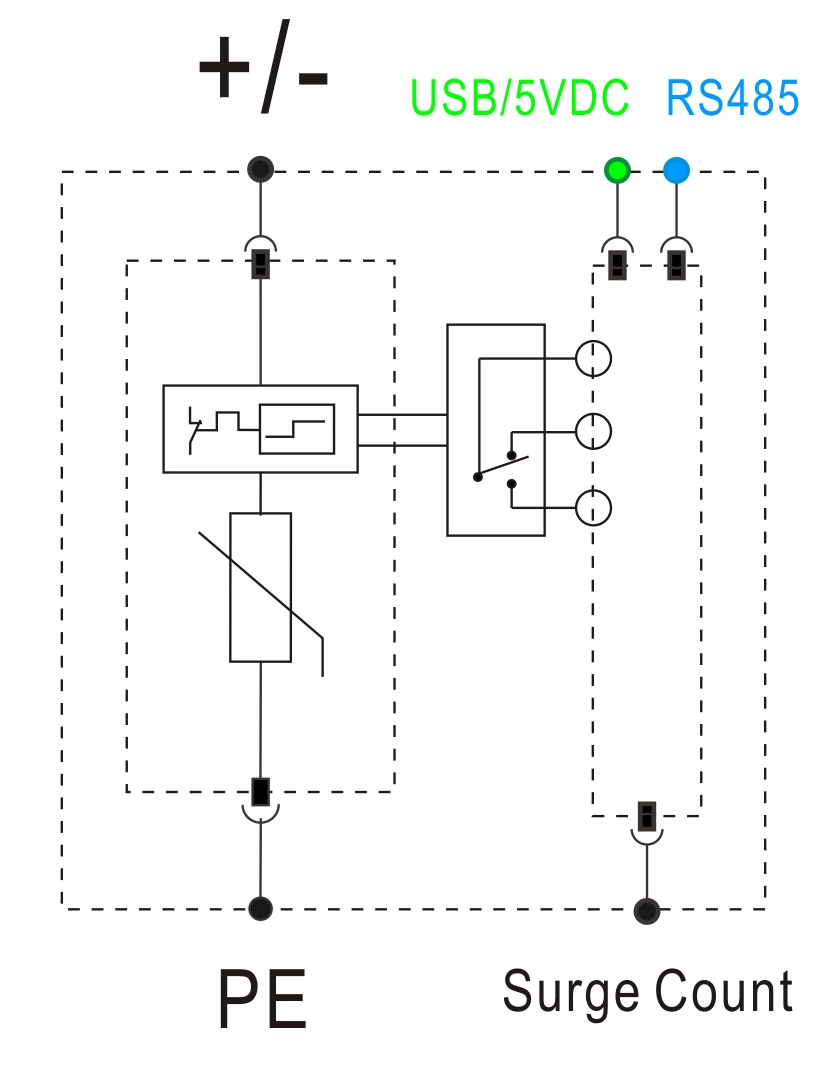

Connection Diagram
Dimensions
Fault Indication
