19" Rackmount 1U PDU Order Information

Shipping Packaging Information

Carton packaging
8 sets per box
Gross Weight:25.8Lb (11.7kg)
Packing size: 21.3x13.6x13 inch (54x34.5x33cm)

Configuration Comparison

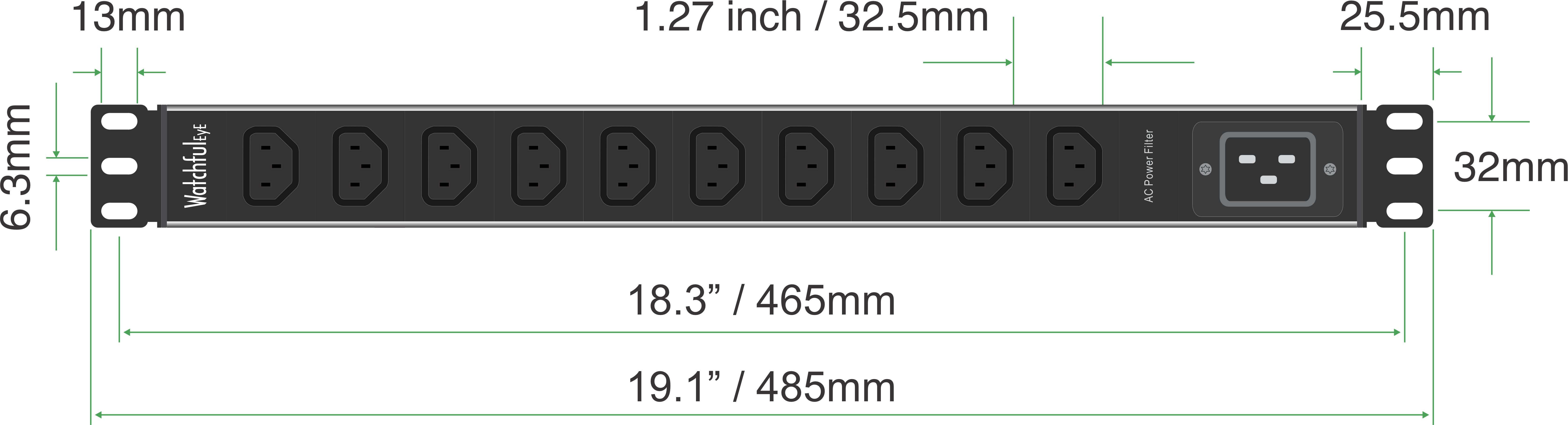

WTH-CS/PDU-C13-F Dimension

19 inch Rack mount, height: 1U (1.75 inch / 44.5mm), depth: 3.5 inch / 89mm

IEC320 C20 Input with AC Power Filter

Paperless Datasheet

Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121052F.html

Open End IEC320 C20 Input

Normally the length and plug type of input power cords are various depending on different projects. The power input interface of Open-End C20 provides maximum flexibility and convenience for project design.

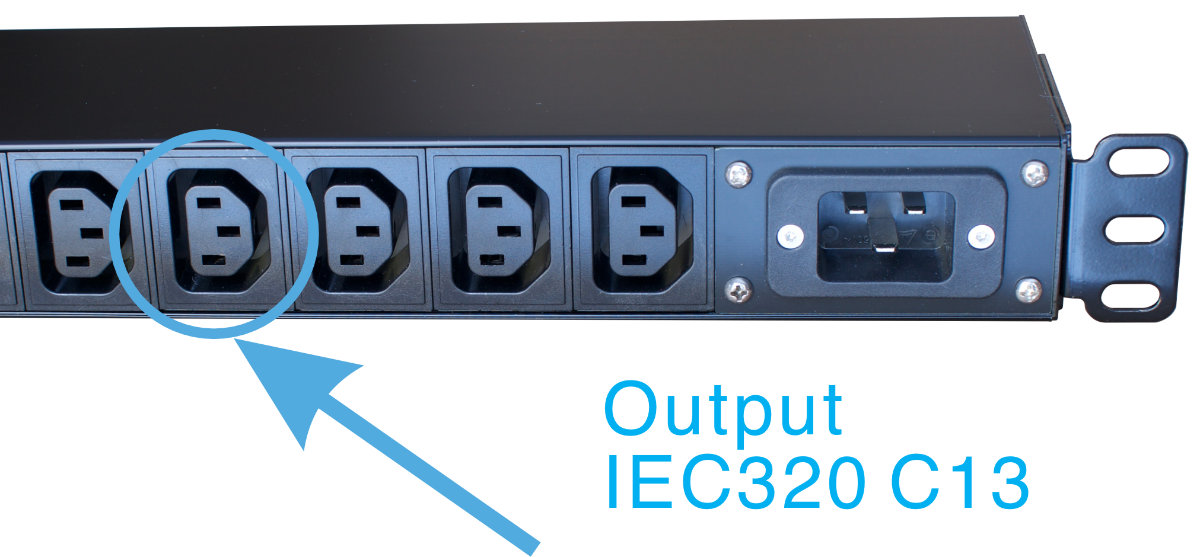

Output Connection IEC 320 C13

Derating curve of current

When ambient temperature is over 122℉(50°C), maximum applied current depends upon the following curve
IM/IR: Maximum current / Rated current 20A@122℉(50°C)

Typical filter attenuation

Insertion loss (dB) in 50Ohm system cisper 17
Common mode/Asymmetrical(L-G), Differential mode/Symmetrical(L-L)

Electrical schematic

Description
Input Type	IEC 320 C20 with AC power filter
Voltage Rating	100/240VAC 50/60Hz
Max Input Amps	20A
Input Cord	without power cord
Circuit Breaker	-
Interior Connection	12 AWG
Output	IEC320 C13 x10 ports
Housing Design	19-inch Rack
Dimension	19.1x3.5x1.75 inch (485x90x44.5mm)
Net Weight Per Unit	2.3Lb (1.05kg)
Gross Weight Per Unit	2.95Lb (1.34kg)
Temperature Range	- 40° to 176°F (-40° to 80°C)
Relative Humidity	0% to 95% noncondensing
Maximum Operating Altitude	10,000 feet (3000m)
Material of Construction	Black oxidized aluminum alloy

Certificates of Products

Note: input connection IEC320 C20 module UL listed

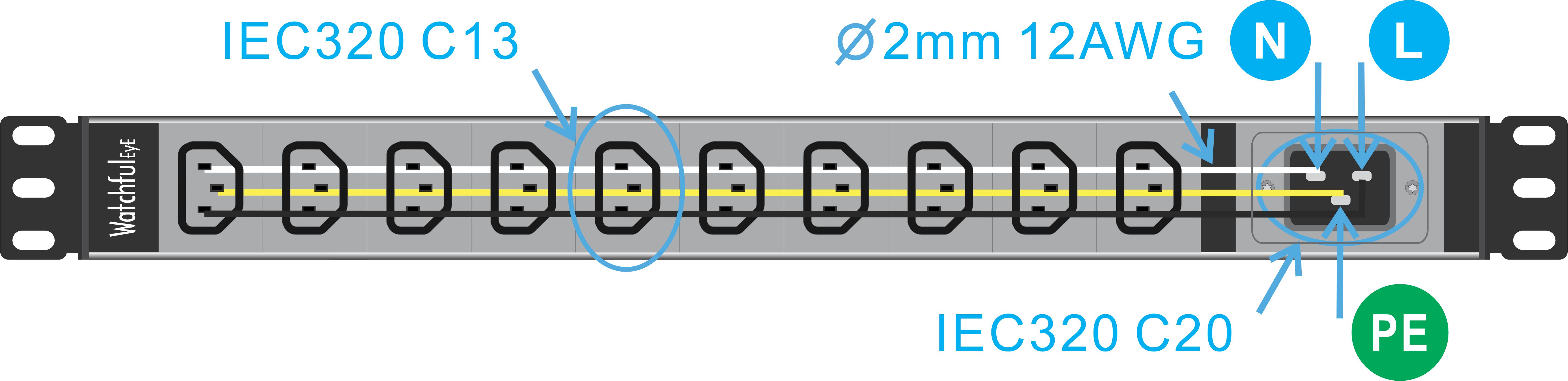

Interior Connection Diagram

Mounting Ears

Detachable mounting ears, reversible ears faces front or back in PDU

Independent Grounding Lug

Rack Mount Screw Kit

19-inch Rack Mounted

Installation Instruction

The PDU surge protectors shall be employed in a Listed enclosure or closet that is only accessible to technicians or service personnels.

FAQ & Help

1. What should I do if I can't find the paper manual in the product packaging?
Watchful Eye products is committed to going green with paperless data sheets. On the rear side of each product enclosure is an engraved link with URL for downloading paperless data sheet and QR code of the website. If you need the paper data sheet, you can open the link and print the data sheet by yourself.


2. Why is the PDU not equipped with a power cord?
For different projects, usually the input power cord length and input plug type are different. The power input interface of Open End C20 provides maximum convenience for your project design.

3. Can I customize a PDU that includes circuit breakers?
Of course, you can customize it, please click the blue button "Start Customize PDU" below

Customize your PDU

Step 1 Select quantity of each PDU module to customize your desired PDU style.
Step 2 After your PDU is created, click and drag the module up or down to adjust its location on the PDU.
Step 3 Request for a quote: fill in quantity of PDU, contact information, E-mail address and message. Click “SUBMIT” and wait for a quote to be sent to your mailbox.


Start Customize PDU

http://pdu.watchfuleyesolutions.com

Version Update

V1.1: Add "AC Power Filter" laser mark
V1.0: IEC320 C13 x10 ports outlet

Download WatchfulEyE Official App

To learn about more products and updates from company, please scan QR code to download the official App:

After-sale Services

Watchful Eye provides a 5-year quality warranty globally.
