Model & Ordering Code

WTH-CS/PDU-C13-E: Open End, Input C20, Output C13


WTH-CS/PDU-C13-F: Open End, Input C20 with AC Power Filter, Output C13


WTH-CS/PDU-C13-E Locking: Open End, Input C20, Output C13 Locking


WTH-CS/PDU-US-E: Open End, Input C20, Output NEMA 5-15R

Certificates of Products

Note: input connection IEC320 C20 module UL listed

Description

19-inch Rack Power Distribution Unit Open End, IEC 320 C20 input type, adapt as needed power cord, The modular design allows you to customize plug-in module combination based on your needs, thus can maximize the flexibility in use and be easily maintained. Easy installation from different directions.

Open End Basic PDU Technical Data
Input Type	IEC 320 C20
Max Input Amps	20A
Voltage Rating	100/240VAC 50/60Hz
Input Cord	without power cord
Output Connection	IEC320 C13 or NEMA 5-15R
Temperature Range	- 40° to 176°F (-40° to 80°C)
Relative Humidity	0% to 95% noncondensing
Maximum Operating Altitude	10,000 feet (3000m)
Material of Construction	Black oxidized aluminum alloy
Housing Design	19-inch Rack
Net Weight Per Unit	2.3Lb (1.05kg)

---

Open End Input

Independent Grounding Lug

Mounting Ears

Detachable mounting ears, reversible ears faces front or back in PDU

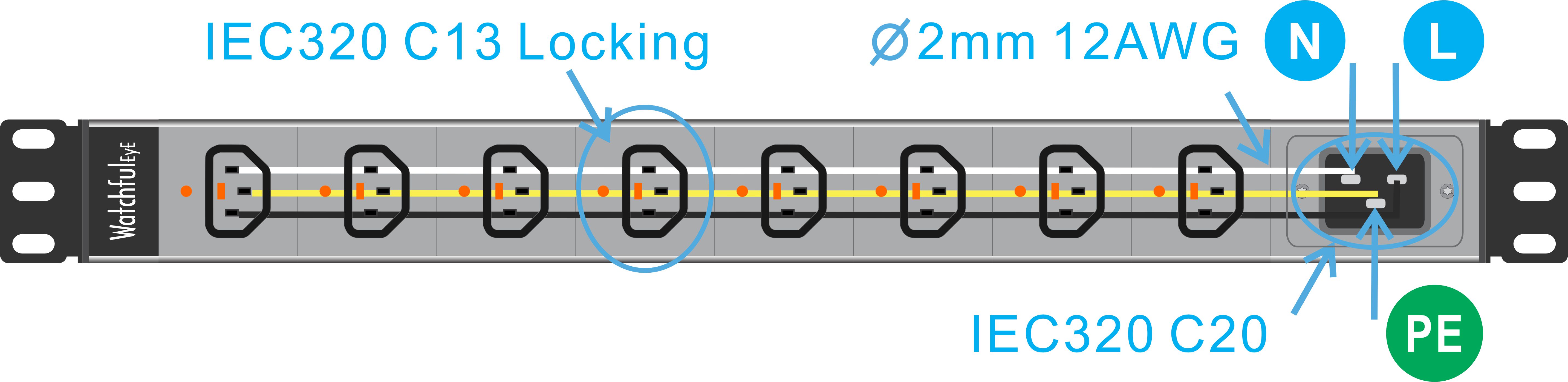

Output Connection IEC 320 C13

Output Connection IEC 320 C13 Locking

Output Connection NEMA 5-15R

Rack Mount Screw Kit

Heavy Duty Housing

19-inch Rack Mounted

Installation Instruction

The PDU surge protectors shall be employed in a Listed enclosure or closet that is only accessible to technicians or service personnels.

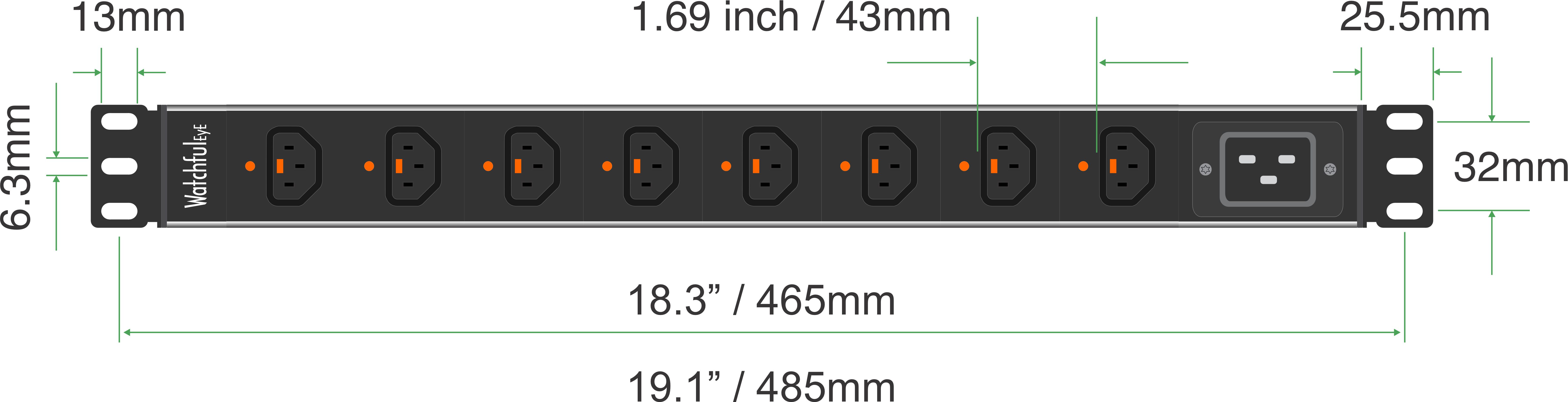

Dimension

Perfect structural design, 19 inch Rack mount, height: 1U (1.75 inch / 44.5mm), depth: 3.5 inch / 89mm

AC Power EMI/RFI Filter (WTH-CS/PDU-C13-F only)

Derating curve of current

When ambient temperature is over 122℉(50°C), maximum applied current depends upon the following curve
IM/IR: Maximum current / Rated current 20A@122℉(50°C)

Typical filter attenuation

Insertion loss (dB) in 50Ohm system cisper 17
Common mode/Asymmetrical(L-G), Differential mode/Symmetrical(L-L)

Electrical schematic

Customize your PDU

1. Is there a type of PDU with mounting ears which can be rotated for front, back, top or bottom mount?
The mounting ears for 1.5U PDU can be rotated for four direction mount.



2. Is there a type of PDU with C14 input?
Yes, 1.5U PDU has two options of input methods: IEC C14 or a power cord.



3. How can I customize other products of 19" rack?
In addition to 19-inch Rack Power Distribution Unit (PDU), there is 19-inch Rack Ethernet Surge Protector.
Modular design allows you to customize the plug-in modules to fit your needs, 19-inch standard dimension or other custom-sized dimensions maximize the ease of use and maintenance.


Click the blue button "Customize your PDU" to start


Customize your PDU

FAQ & Help

1. What should I do if I can't find the paper manual in the product packaging?
Watchful Eye products is committed to going green with paperless data sheets. On the rear side of each product enclosure is an engraved link with URL for downloading paperless data sheet and QR code of the website. If you need the paper data sheet, you can open the link and print the data sheet by yourself.
