Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121042E.html

Model & Ordering Code

Model Ordering Code Output Connection Input IEC320 C20
WTH-CS/PDU-C13-E US121052E 10x IEC320 C13 without power cord
WTH-CS/PDU-C13-F US121052F 10x IEC320 C13, AC power filter without power cord
WTH-CS/PDU-C13-E Locking US121055E 8x IEC320 C13 Locking without power cord
WTH-CS/PDU-US-E US121042E 10x NEMA 5-15R without power cord

WTH-CS/PDU-C13-E: Open End, Input C20, Output C13


WTH-CS/PDU-C13-F: Open End, Input C20 with AC Power Filter, Output C13


WTH-CS/PDU-C13-E Locking: Open End, Input C20, Output C13 Locking


WTH-CS/PDU-US-E: Open End, Input C20, Output NEMA 5-15R


Certificates of Products


Note: input connection IEC320 C20 module UL listed

www.watchfuleyesolutions.com - Page 01 - Back to TOP -

Description
19-inch Rack Power Distribution Unit Open End, IEC 320 C20 input type, adapt as needed power cord, The modular design allows you to customize plug-in module combination based on your needs, thus can maximize the flexibility in use and be easily maintained. Easy installation from different directions.
Open End Basic PDU Technical Data
Input Type IEC 320 C20
Max Input Amps 20A
Voltage Rating 100/240VAC 50/60Hz

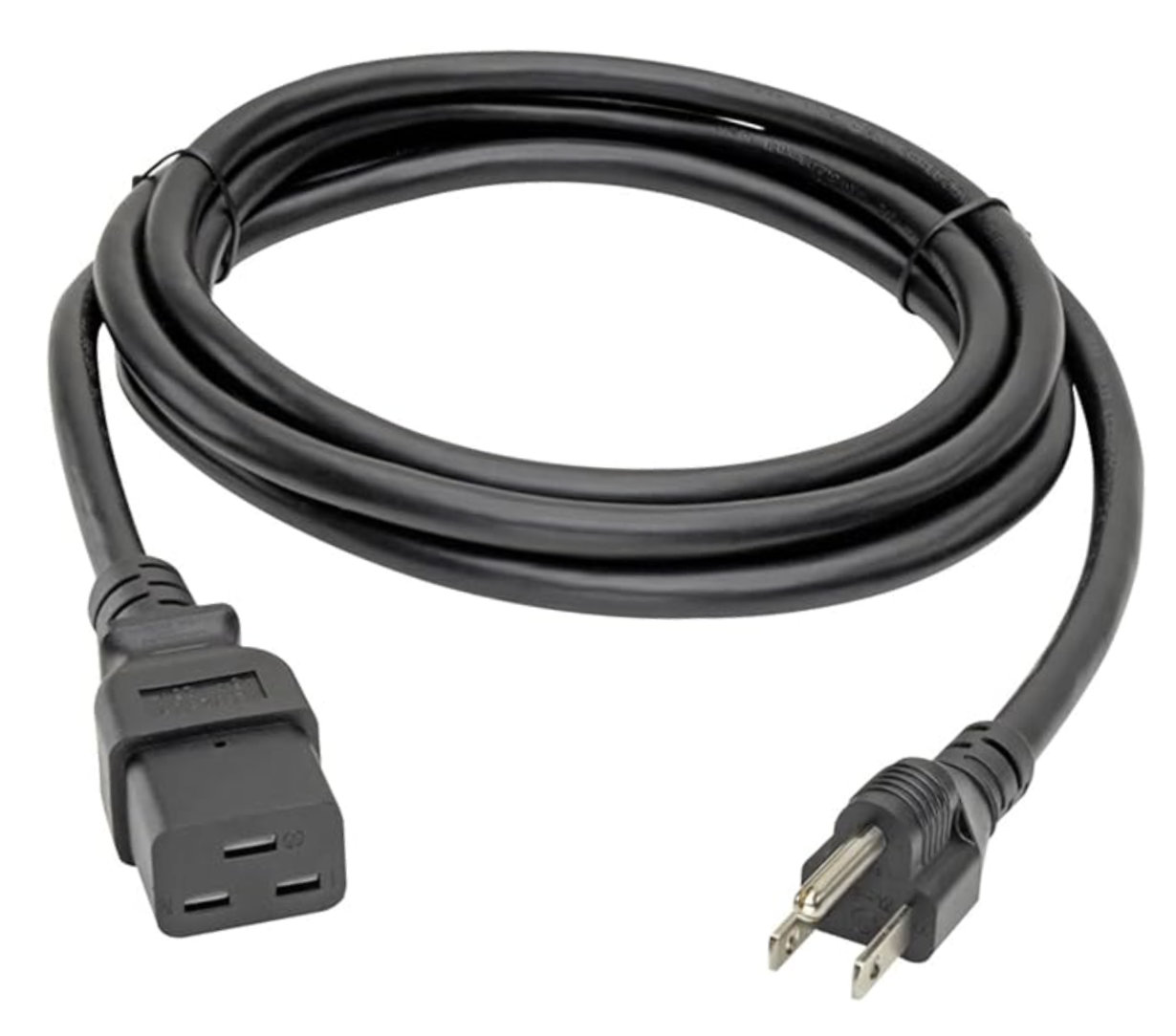

Input Cord without power cord
Output Connection IEC320 C13 or NEMA 5-15R
Temperature Range - 40° to 176°F (-40° to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Material of Construction Black oxidized aluminum alloy
Housing Design 19-inch Rack
Net Weight Per Unit 2.3Lb (1.05kg)

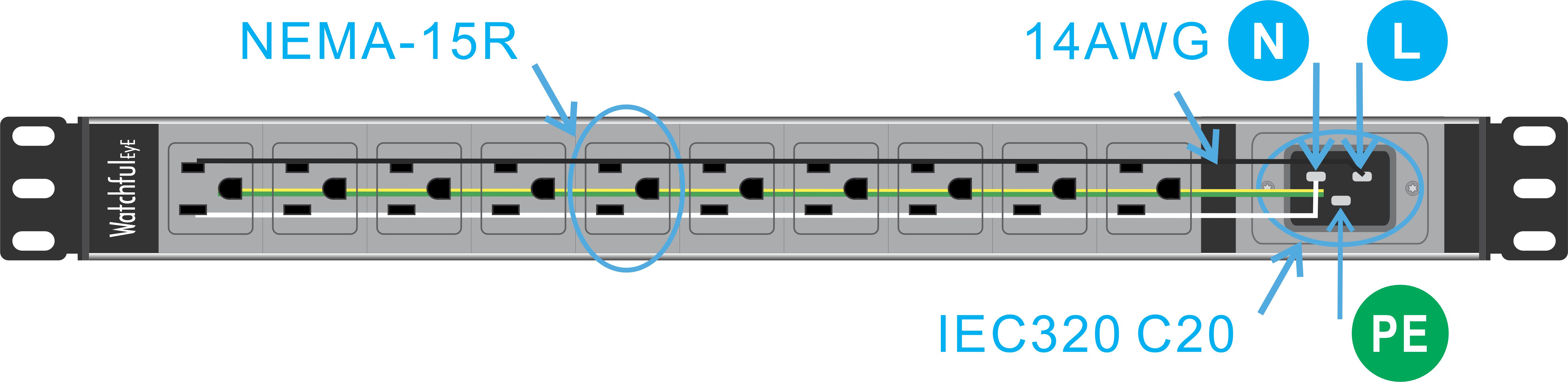

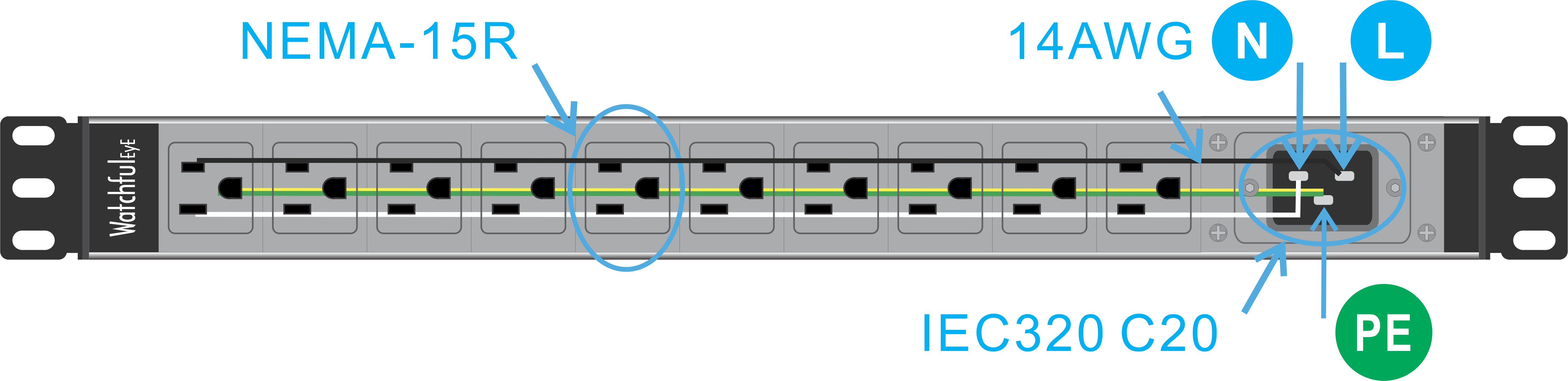

Interior Connection Diagram


www.watchfuleyesolutions.com - Page 02 - Back to TOP -
.

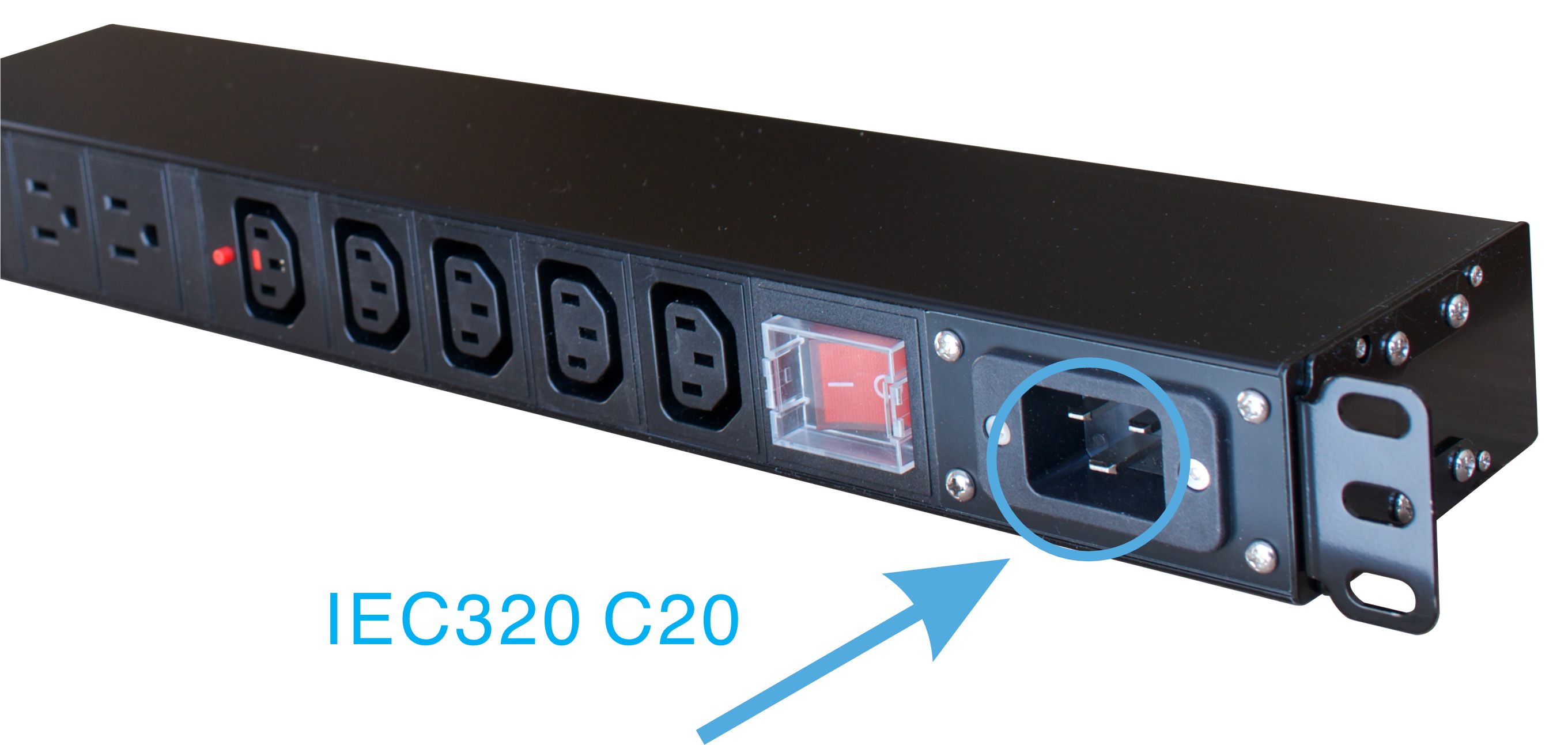

Open End Input


Independent Grounding Lug

Mounting Ears
Detachable mounting ears, reversible ears faces front or back in PDU

www.watchfuleyesolutions.com - Page 03 - Back to TOP -
.

Output Connection IEC 320 C13


Output Connection IEC 320 C13 Locking

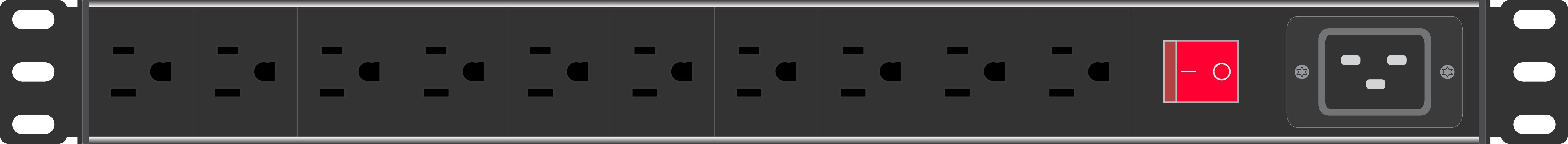

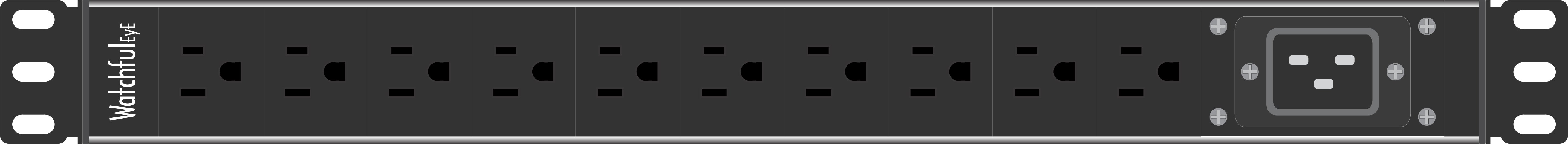

Output Connection NEMA 5-15R


www.watchfuleyesolutions.com - Page 04 - Back to TOP -
.

Rack Mount Screw Kit

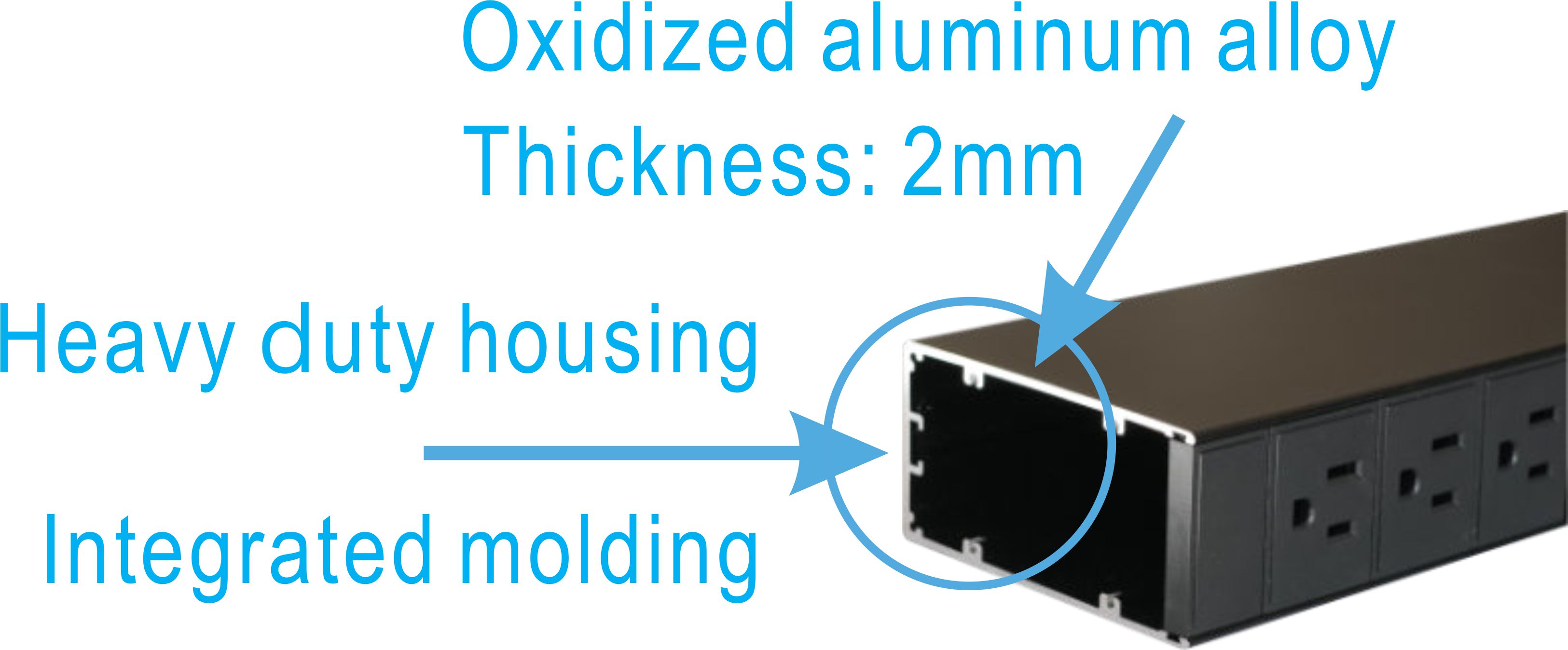

Heavy Duty Housing

www.watchfuleyesolutions.com - Page 05 - Back to TOP -
.

19-inch Rack Mounted

Installation Instruction
The PDU surge protectors shall be employed in a Listed enclosure or closet that is only accessible to technicians or service personnels.

www.watchfuleyesolutions.com - Page 06 - Back to TOP -
.

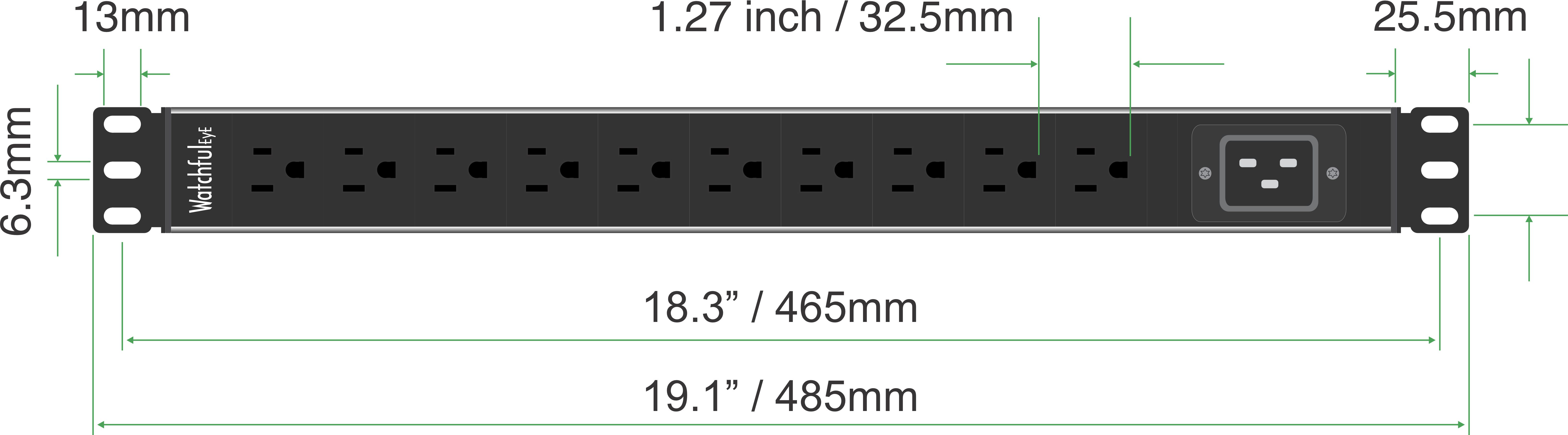

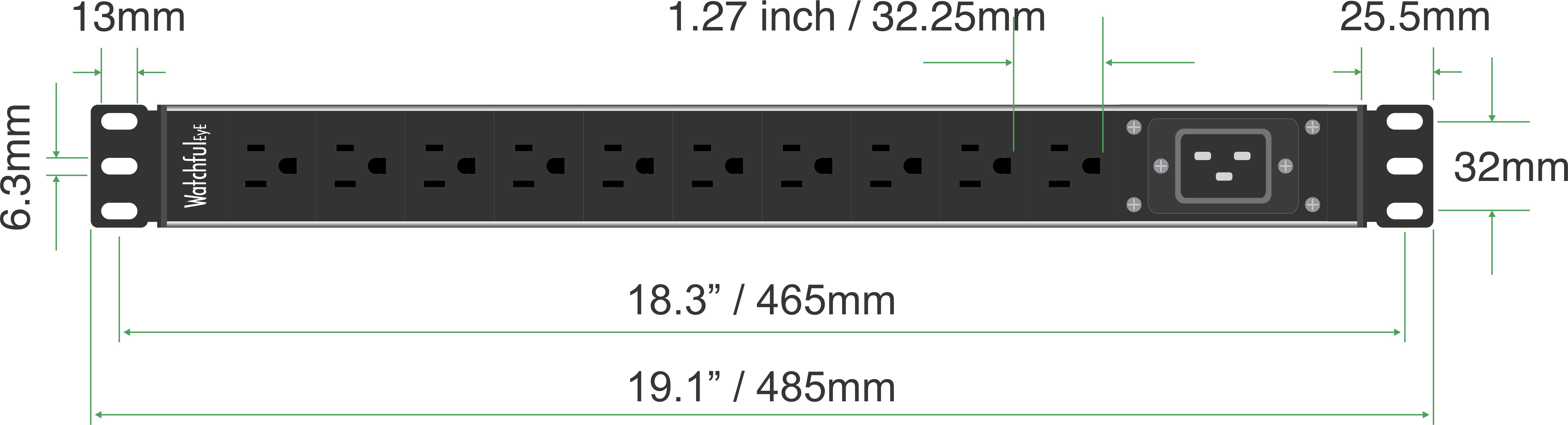

Dimension
Perfect structural design, 19 inch Rack mount, height: 1U (1.75 inch / 44.5mm), depth: 3.5 inch / 89mm




www.watchfuleyesolutions.com - Page 07 - Back to TOP -

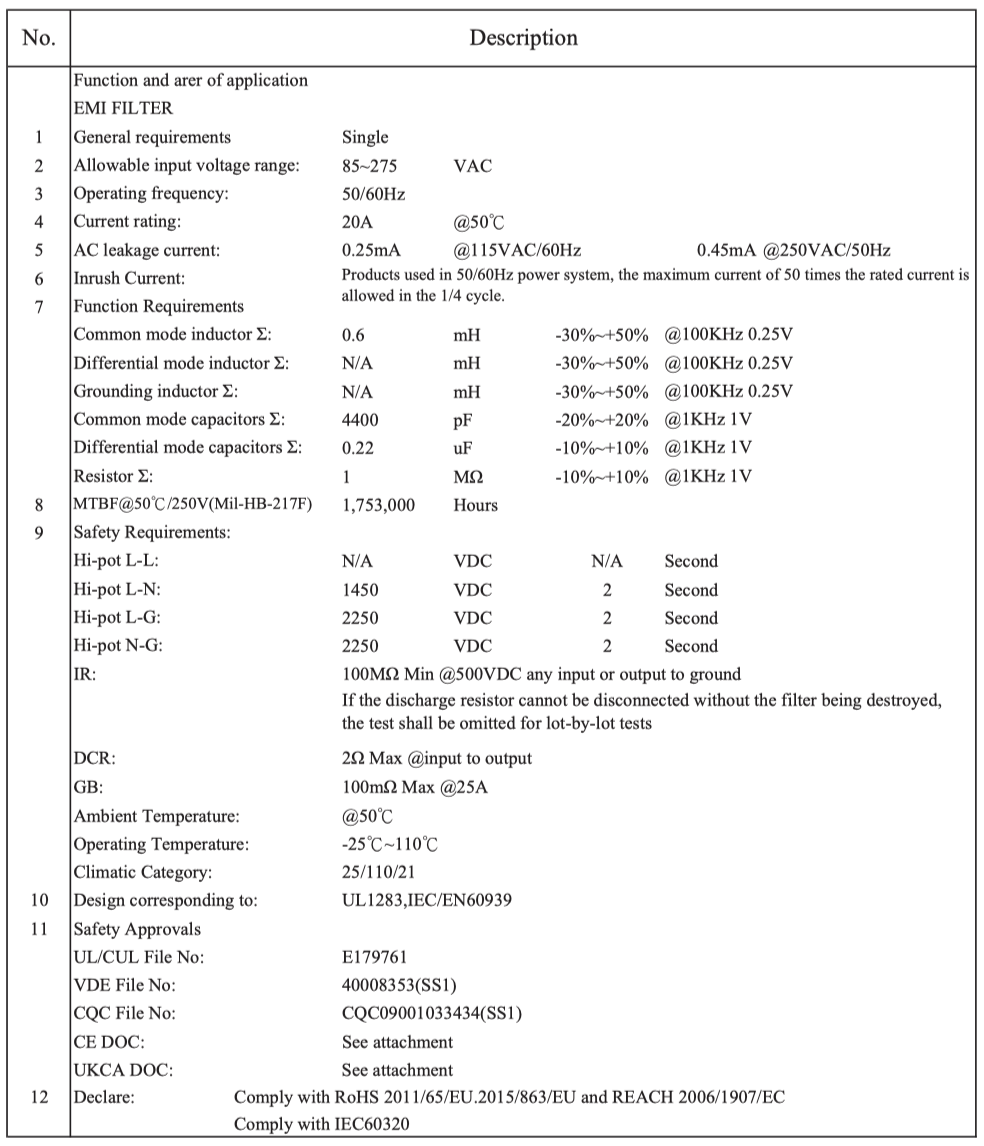

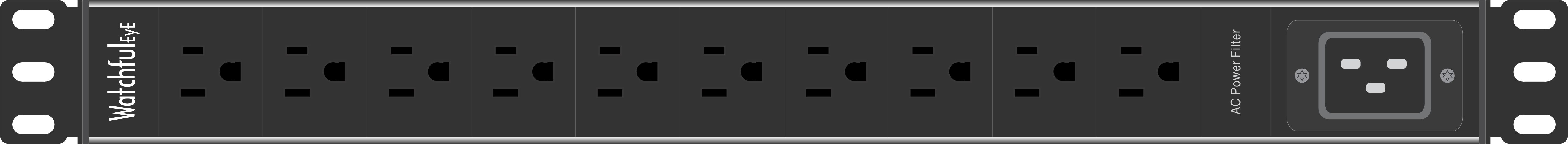

AC Power Filter Module Description (WTH-CS/PDU-C13-F only)
1 General requirements Single
2 Allowable input voltage range: 85-275 VAC
3 Operating frequency: 50/60Hz
4 Current rating: 20A @50°C
5 AC leakage current: 0.25mA @115VAC/60Hz 0.45mA @250VAC/50Hz
6 Inrush Current: Products used in 50/60Hz power system, the maximum current of 50 times the rated current is allowed in the 1/4 cycle.
7 Function Requirements
Common mode inductor ∑: 0.6 mH -30%~+50% @100KHz 0.25V
Common mode capacitors ∑: 4400 pF --20%~+20% @1KHz1V
Differential mode capacitors ∑: 0.22 µF --20%~+20% @1KHz1V
Resistor ∑: 1 --20%~+20% @1KHz1V
8 MTBF@50°C/250V(Mil-HB-217F) 1,753,000 Hours
9 Safety Requirements:
Hi-pot L-N: 1450 VDC 2 Second
Hi-pot L-G: 2250 VDC 2 Second
Hi-pot N-G: 2250 VDC 2 Second
IR 100MΩ Min @500VDC any input or output to ground
If the discharge resistor cannot be disconnected without the filter being destroyed. the test shall be omitted for lot-by-lot tests
DCR: 2Ω Max @input to output
GB: 100mΩ Max @25A
Ambient Temperature: @50°C
Operating Temperature: -25°C~110°C
Climatic Category: 25/110/21
10 Design corresponding to: UL 1283, IEC/EN60939
11 Safety Approvals
UL/CUL File No: E179761
VDE File No: 40008353(SS1)
12 Declare: Comply with RoHS 2011/65/EU.2015/863/EU and REACH 2006/1907/EC Comply with IEC60320


www.watchfuleyesolutions.com - Page 08 - Back to TOP -
.

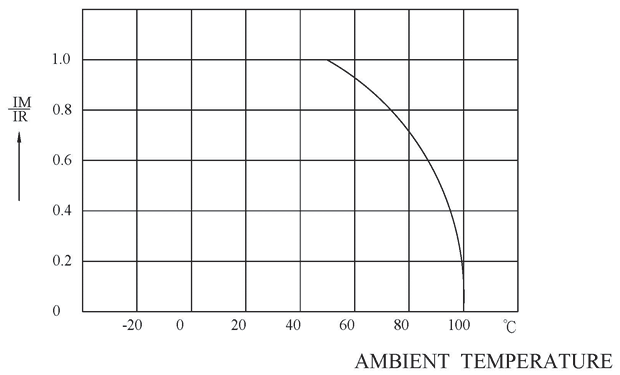

Derating curve of current
When ambient temperature is over 122℉(50°C), maximum applied current depends upon the following curve
IM/IR: Maximum current / Rated current 20A@122℉(50°C)

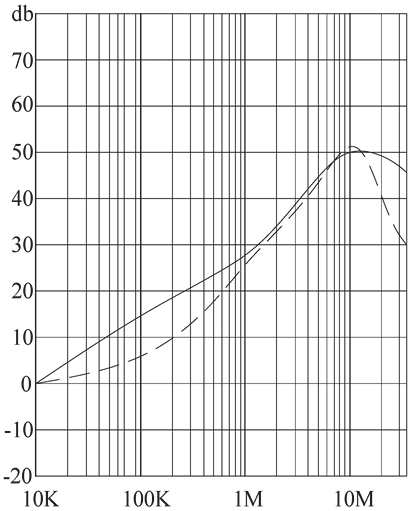

Typical filter attenuation
Insertion loss (dB) in 50Ohm system cisper 17
Common mode/Asymmetrical(L-G), Differential mode/Symmetrical(L-L)

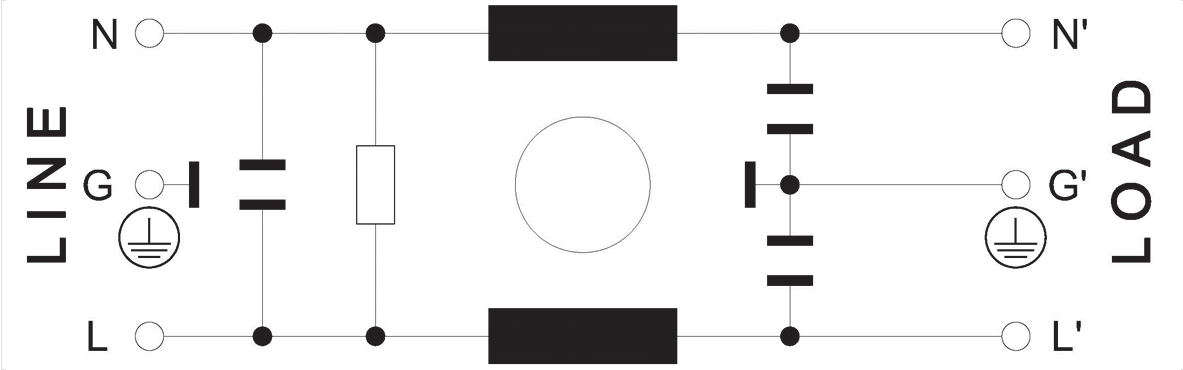

Electrical schematic

www.watchfuleyesolutions.com - Page 09 - Back to TOP -

Customize your PDU
1. Is there a type of PDU with mounting ears which can be rotated for front, back, top or bottom mount?
The mounting ears for 1.5U PDU can be rotated for four direction mount.



2. Is there a type of PDU with C14 input?
Yes, 1.5U PDU has two options of input methods: IEC C14 or a power cord.



3. How can I customize other products of 19" rack?
In addition to 19-inch Rack Power Distribution Unit (PDU), there is 19-inch Rack Ethernet Surge Protector.
Modular design allows you to customize the plug-in modules to fit your needs, 19-inch standard dimension or other custom-sized dimensions maximize the ease of use and maintenance.


Click the blue button "Customize your PDU" to start


Customize your PDU

www.watchfuleyesolutions.com - Page 10 - Back to TOP -

FAQ & Help
1. What should I do if I can't find the paper manual in the product packaging?
Watchful Eye products is committed to going green with paperless data sheets. On the rear side of each product enclosure is an engraved link with URL for downloading paperless data sheet and QR code of the website. If you need the paper data sheet, you can open the link and print the data sheet by yourself.



www.watchfuleyesolutions.com - Page 11 - Back to TOP -

Download WatchfulEyE Official App
To learn about more products and updates from company, please scan QR code to download the official App:

After-sale Services
Watchful Eye provides a 5-year quality warranty globally.
