Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. WatchfulEye products have the links of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/XCW8217.html

Model & Ordering Code

Model Ordering Code Packing UPC/EAN Code
RACK 3517 XCW8217 1 set (0) 811914031994

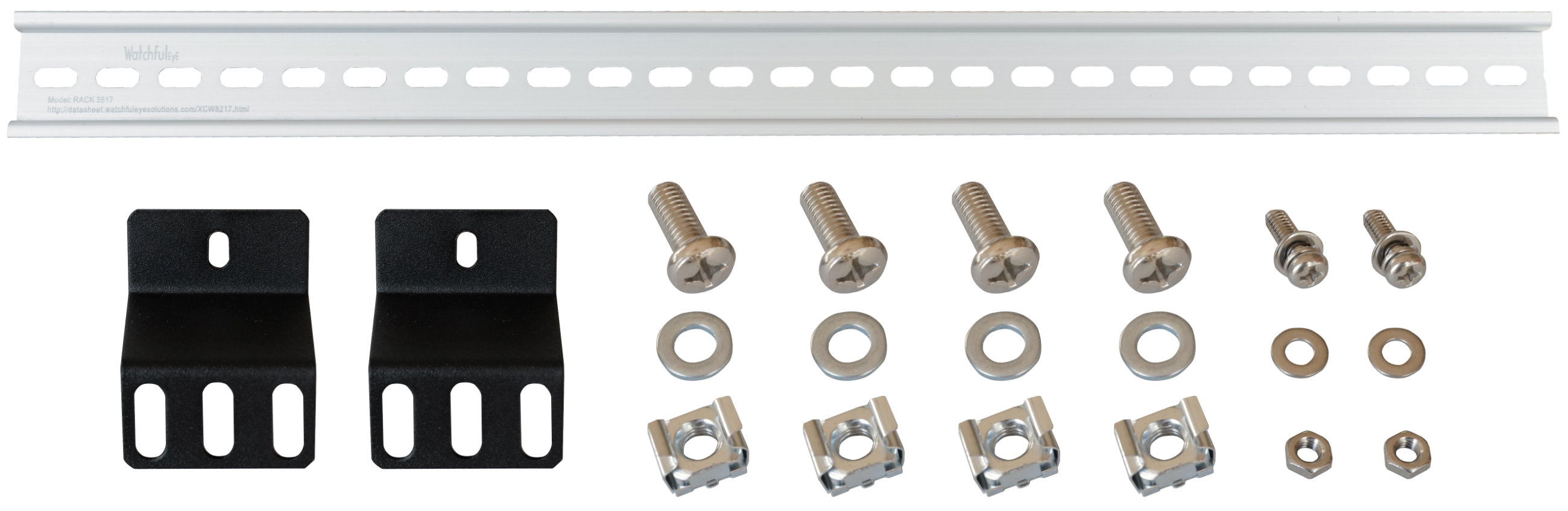

Description
Each kit contains 2 rack mount ears and 1 DIN-rail
Rack ears are made of high strength steel with a black protective coating
Aluminum alloy oxidation 35mm DIN-rail Length 17 inch / 430mm
Net weight per kit: 130g

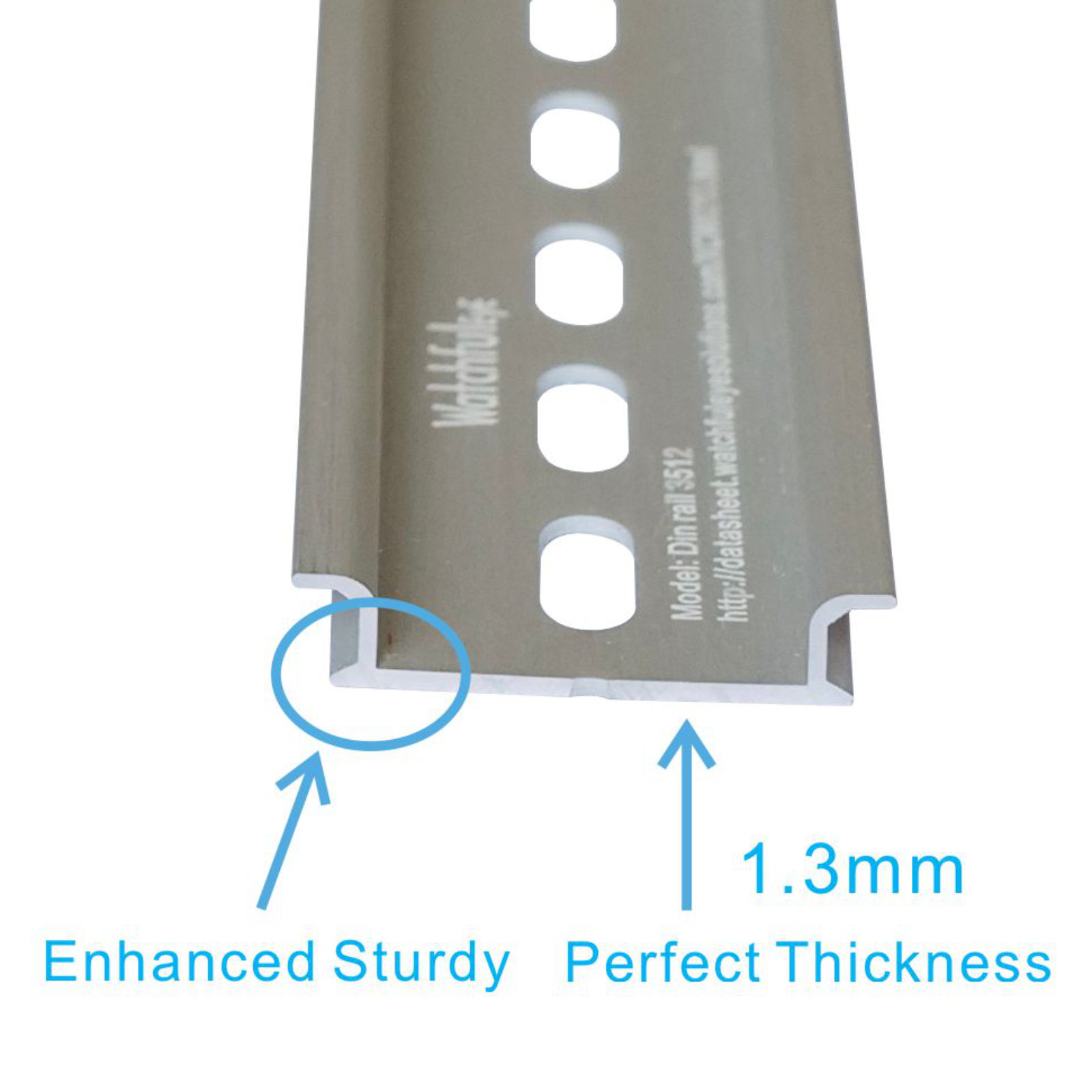

Feature

www.watchfuleyesolutions.com - Page 01 - Back to TOP -

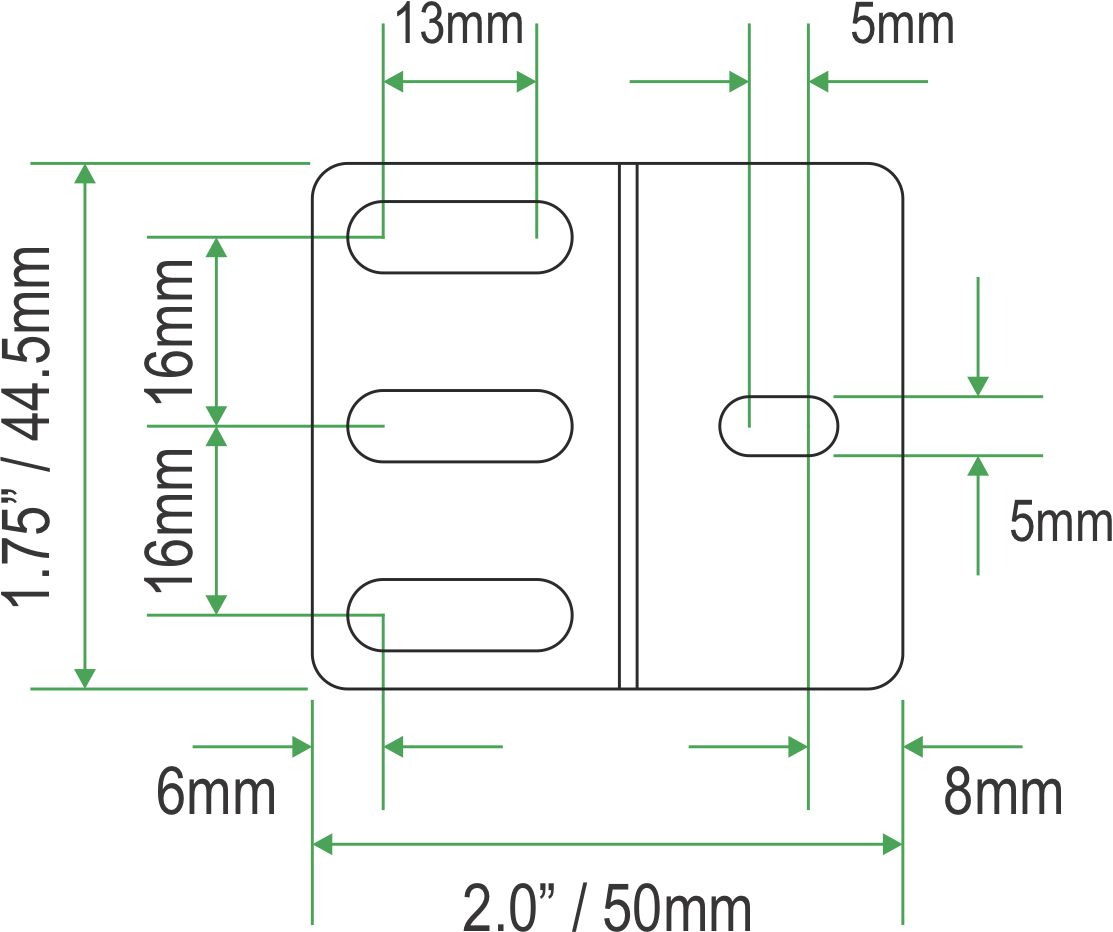

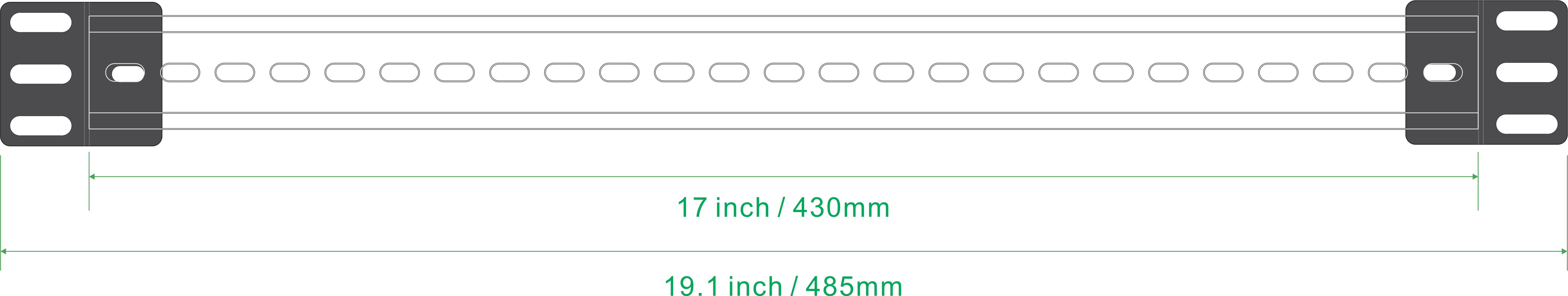

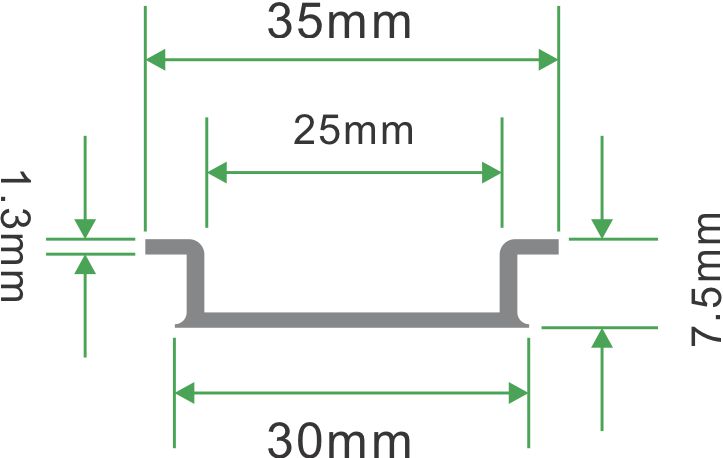

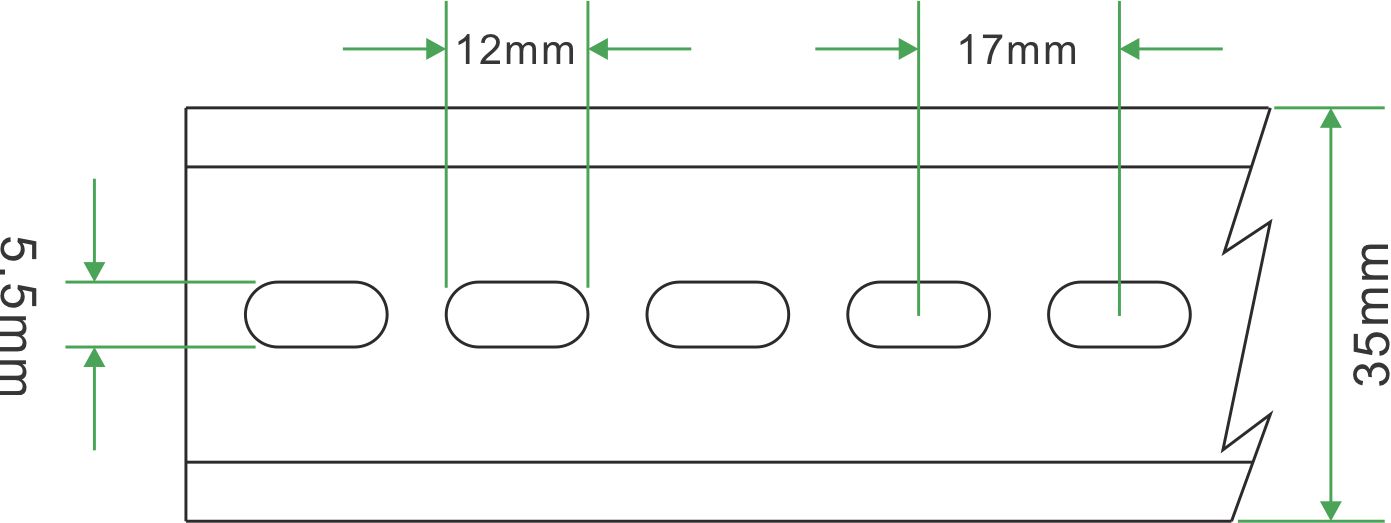

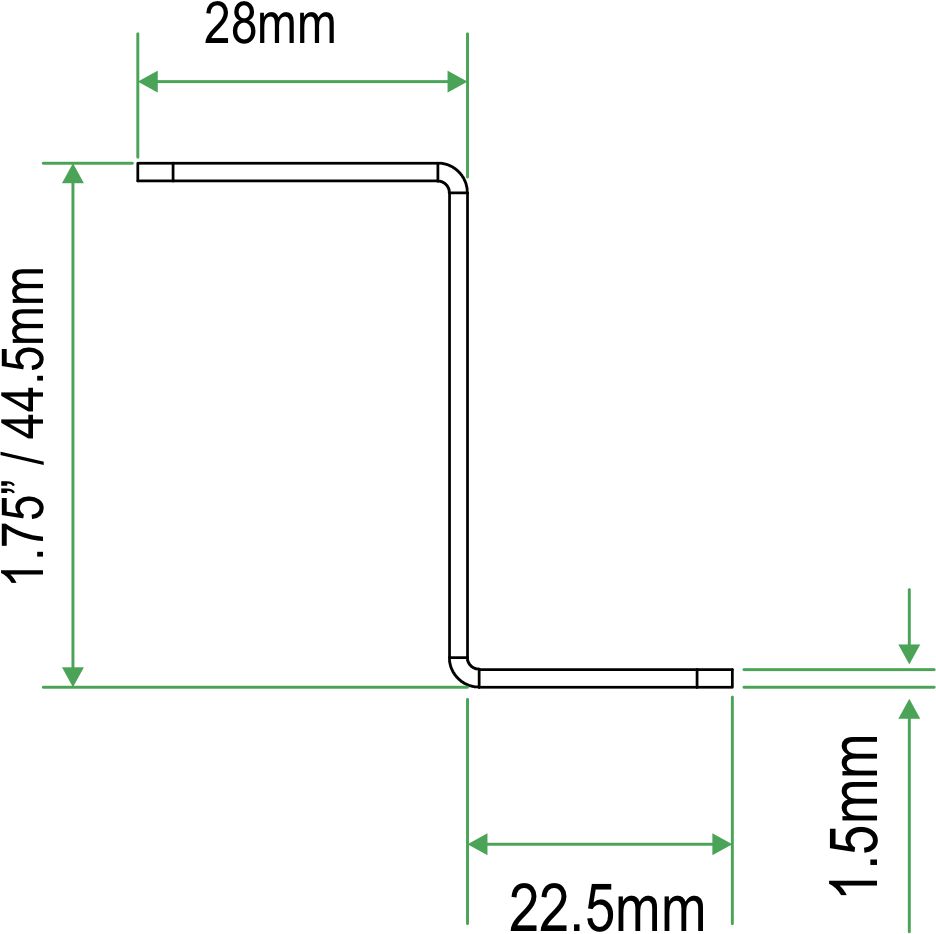

Dimensions



www.watchfuleyesolutions.com - Page 02 - Back to TOP -

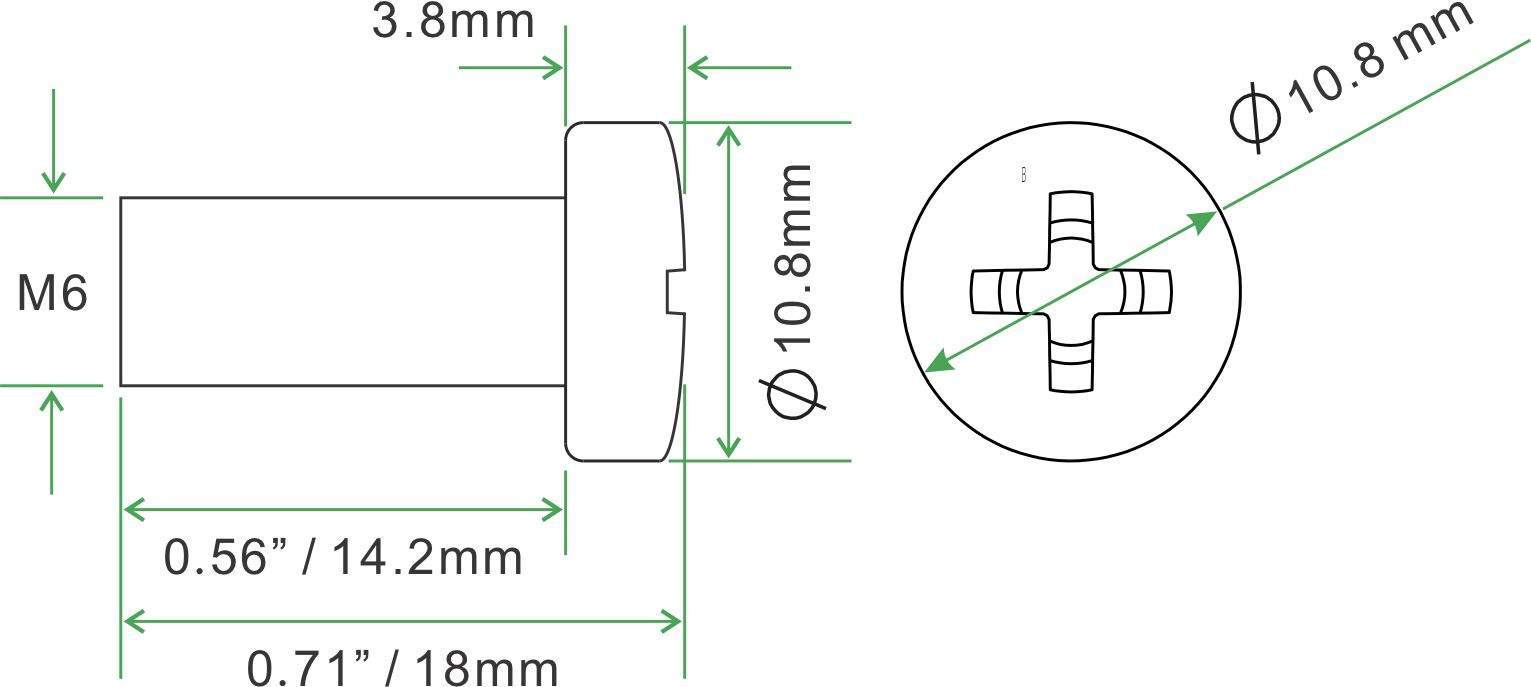

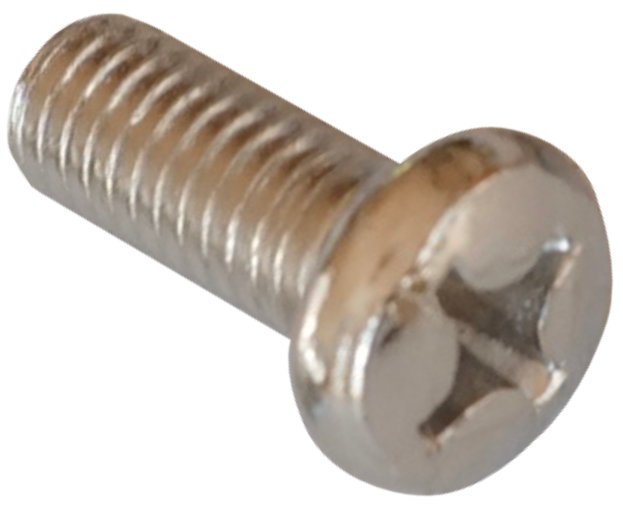

Rack Mount Screws


Material: Metal Carburizing Heat Treated, Zinc-plated


www.watchfuleyesolutions.com - Page 03 - Back to TOP -
.

Application




www.watchfuleyesolutions.com - Page 04 - Back to TOP -

FAQ & Help (1/1)
1. What should I do if I can't find the paper manual in the product packaging?

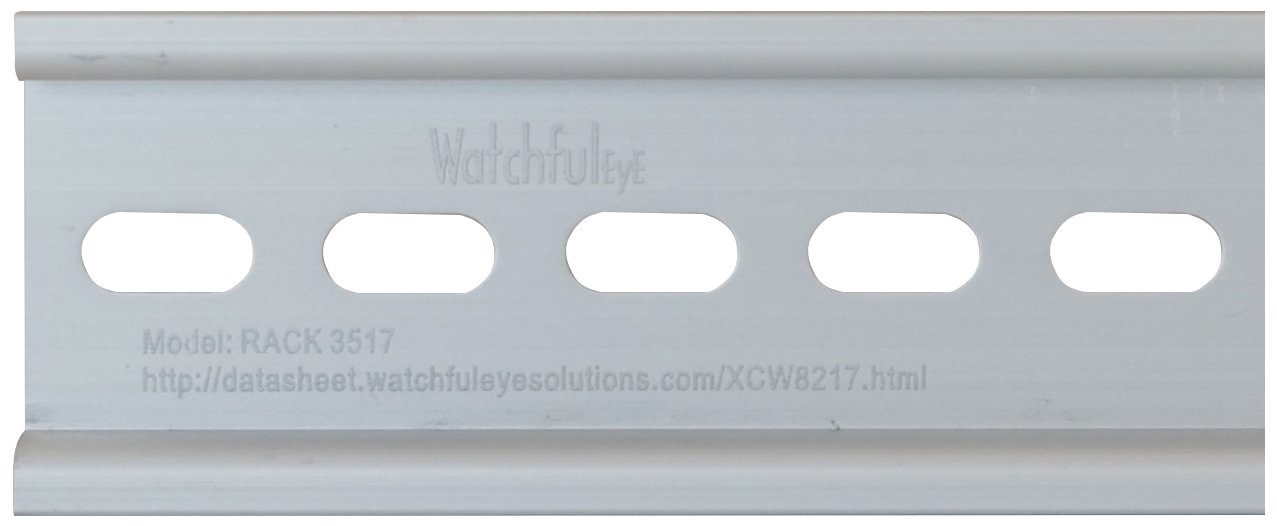

Watchful Eye products is committed to going green with paperless data sheets. On each DIN rail there is an engraved link with URL for downloading paperless data sheet on the website.. If you need the paper data sheet, you can open the link and print the data sheet by yourself.


2. Why are there some dirt-like black stains on the DIN rails?
The black stains are caused by friction and collision between the DIN rails and mechanical equipment during the production. To protecting environment, the stains are deliberately not removed by cleaning as the waste discharged from cleaning will produce harmful chemicals which will pollute the environment.

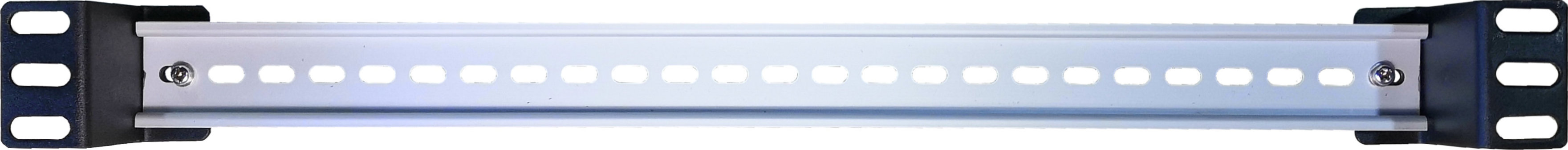

3. Is there an overall view of the rack ears and DIN rail?
The following is a photo of rack ears and 17-inch DIN rail.


4. How can I customize other products of 19" rack?
In addition to 19-inch Rack Power Distribution Unit (PDU), there is 19-inch Rack Ethernet Surge Protector.
Modular design allows you to customize the plug-in modules to fit your needs, 19-inch standard dimension or other custom-sized dimensions maximize the ease of use and maintenance.


Click the blue button "Customize your PDU" to start


Customize your PDU



www.watchfuleyesolutions.com - Page 05 - Back to TOP -

Download WatchfulEyE Official App
To learn about more products and updates from company, please scan QR code to download the official App:

After-sale Services
Watchful Eye provides a 5-year quality warranty globally.
