Paperless Datasheet
Going green and protecting environment is manufacturers' responsibility. Each WatchfulEyE product has a link of downloading data sheet on its enclosure:
http://datasheet.watchfuleyesolutions.com/US121044.html

Model & Ordering Code

Model Ordering Code CN 10A IEC320 C13 Surge Protection
WTH-CS/PDU-CN10 US121044 8 - -
WTH-CS/PDU-CN10-FSG US121044A 6 - L/N-PE, L-N
WTH-CS/PDU-CN10-FS US121044B 5 1 L/N-PE, L-N
WTH-CS/PDU-CN10-SG US121044C 8 - L/N-PE, L-N
WTH-CS/PDU-CN10-S US121044D 7 1 L/N-PE, L-N

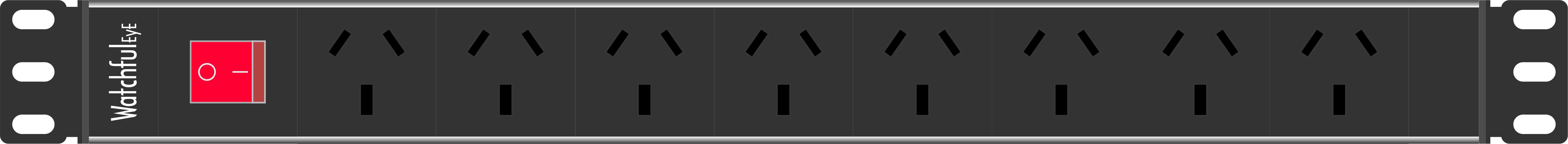

Basic PDU, 8-Outlet
WTH-CS/PDU-CN10

PDU Surge Protector, 6-Outlet

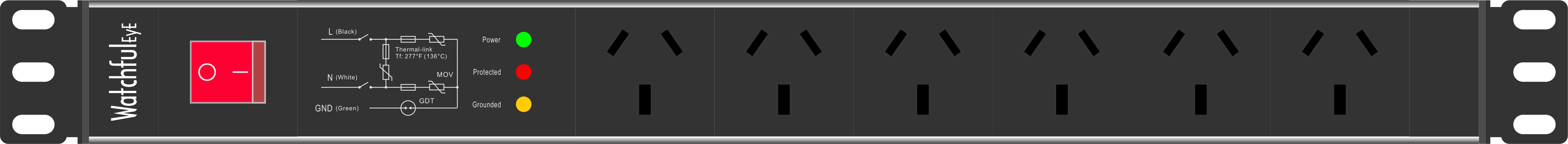

WTH-CS/PDU-CN10-FSG

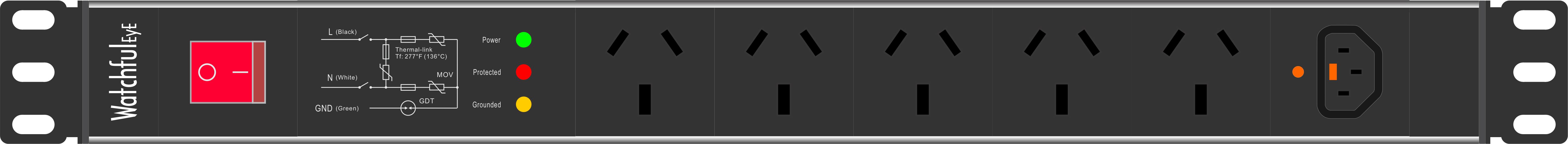

WTH-CS/PDU-CN10-FS

PDU Surge Protector, 8-Outlet

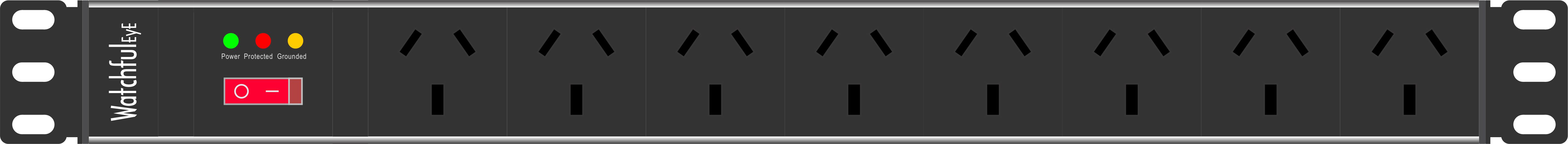

WTH-CS/PDU-CN10-SG

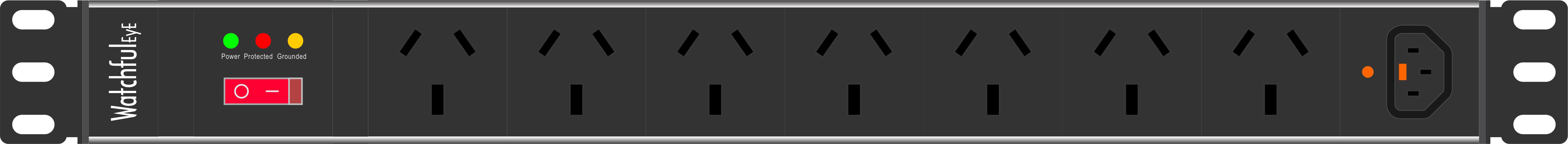

WTH-CS/PDU-CN10-S

Certificates of Products


Note: surge protection module UL listed pending

www.watchfuleyesolutions.com - Page 01 - Back to TOP -

Description
19-inch Rack Power Distribution Unit offers reliable full surge protection modes to protect your facility against surge. The PDU provides real-time reporting of protection status via three indicators.
The modular design allows you to customize plug-in module combination based on your needs, thus can maximize the flexibility in use and be easily maintained. Easy installation from different directions.
WTH-CS/PDU-CN10 Series Technical Data
Input Type CN 10A
Max Input Amps 10A
Input Cord Length 3x1.5mm² x 2.85m
Output Connection CN 10A (or with IEC320 C13 x1)
Nominal operating voltage (Un) 250VAC 50/60Hz
Max. continuous operating voltage (MCOV) 275VAC
Nominal Discharge Current (In) 5kA
Max. Discharge Current (Imax) 10kA
Open circuit voltage (Uoc) 15KV
Voltage protection level (Up) 1.2kV
Surge Protection Modes L-PE, N-PE, L-N
Protective Element MOV+GDT
Response Time (tA) <5ns
Leakage Current (at 75%U1mA) <20μA
Thermal Protection Rated Functioning Temp. (Tf) 277°F (136°C)
Short Circuit Current Ratings (SCCR) 20kA rms
Surge Protection Back-up Fuse 16A gL
Surge Life at 3kA (8/20μs) >5000 events
Temperature Range - 40° to 176°F (-40° to 80°C)
Relative Humidity 0% to 95% noncondensing
Maximum Operating Altitude 10,000 feet (3000m)
Material of Construction Black oxidized aluminum alloy
Housing Design 19-inch Rack
Net Weight Per Unit 4Lb (1.8kg)

www.watchfuleyesolutions.com - Page 02 - Back to TOP -
.

Surge Protection Module
Superior surge protection features, Surge Protection Modules provide reliable surge protection in full protection modes with three indicators for real-time display to protect your equipment and facility from surges and damages.


PowerGreen LED power indication: surge protection module is working
ProtectedRed LED surge protection indication: protected: on; failure: off
GroundedOrange LED grounded indication: grounded: on; failure: off

Surge Protection Connection Diagram


Independent Grounding Lug

www.watchfuleyesolutions.com - Page 03 - Back to TOP -
.

Circuit Breaker
The power switch is designed to concave to the surface to prevent the cable from accidentally disconnected
The power switch protection cover provides enhanced security.


Mounting Ears
Detachable mounting ears, reversible ears faces front or back in PDU

www.watchfuleyesolutions.com - Page 04 - Back to TOP -
.

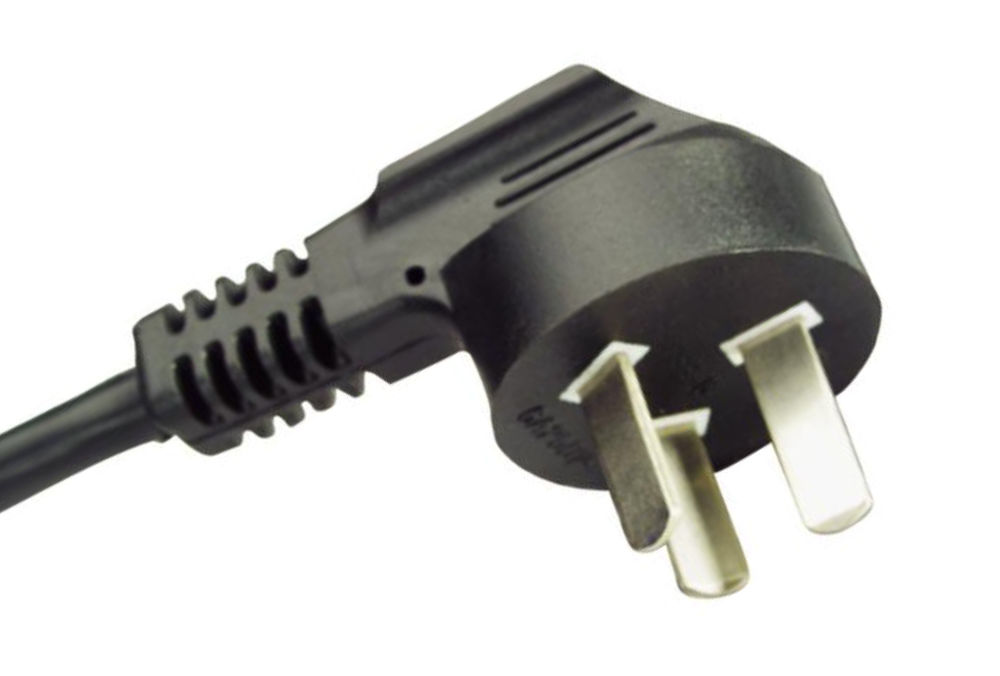

Input Power Cord
Input Type: CN 10A Plug
Max Input Amps: 10A
Input Cord Length: 3x1.5mm² x 2.85m

Rack Mount Screw Kit

Heavy Duty Housing

www.watchfuleyesolutions.com - Page 05 - Back to TOP -
.

19-inch Rack Mounted

Installation Instruction
The PDU surge protectors shall be employed in a Listed enclosure or closet that is only accessible to technicians or service personnels.

www.watchfuleyesolutions.com - Page 06 - Back to TOP -
.

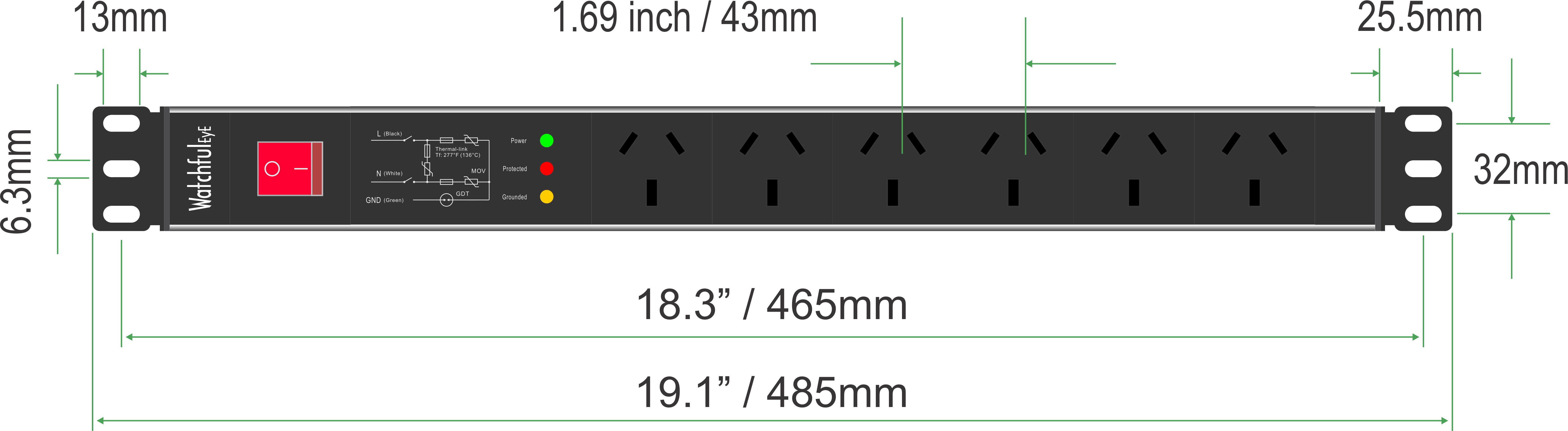

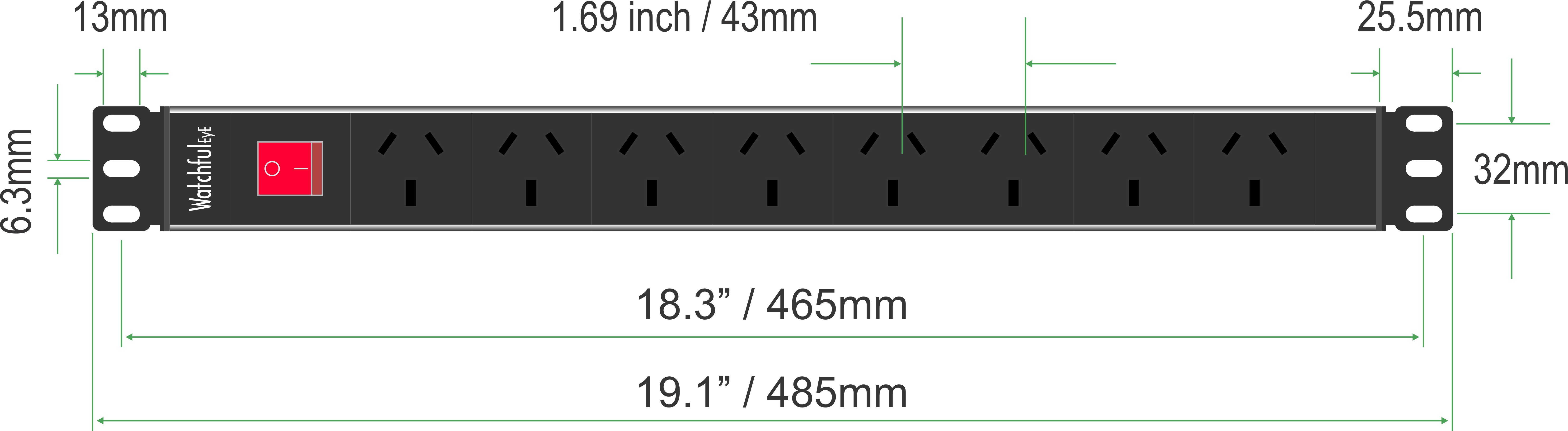

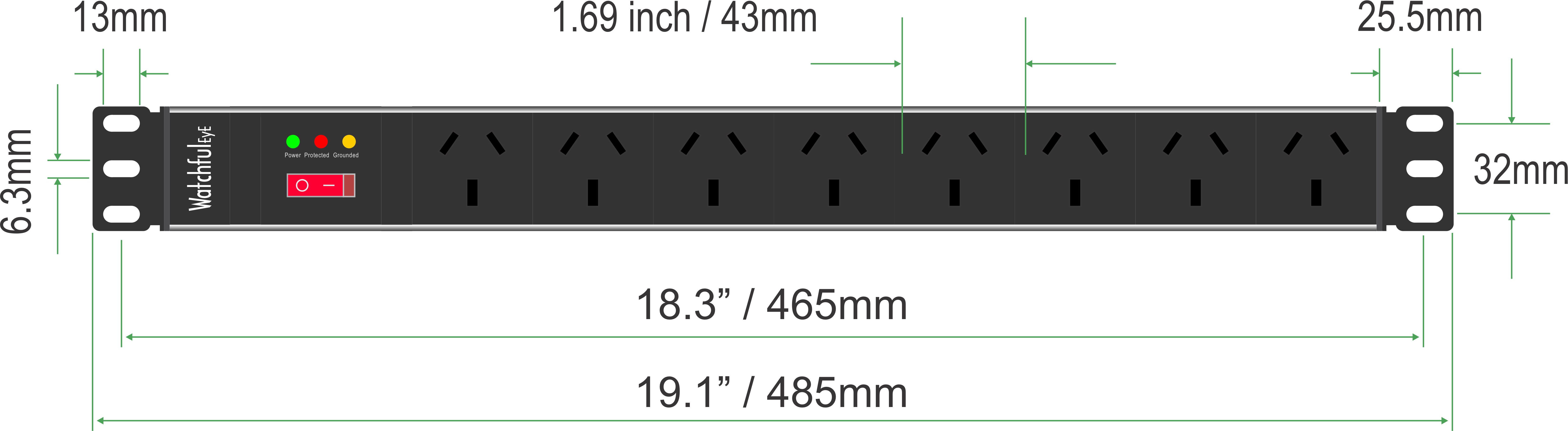

Dimension
Perfect structural design, 19 inch Rack mount, height: 1U (1.75 inch / 44.5mm), depth: 3.5 inch / 89mm




www.watchfuleyesolutions.com - Page 07 - Back to TOP -

Customize your PDU
1. Is there a type of PDU with mounting ears which can be rotated for front, back, top or bottom mount?
The mounting ears for 1.5U PDU can be rotated for four direction mount.



2. Is there a type of PDU with C14 input?
Yes, 1.5U PDU has two options of input methods: IEC C14 or a power cord.



3. How can I customize other products of 19" rack?
In addition to 19-inch Rack Power Distribution Unit (PDU), there is 19-inch Rack Ethernet Surge Protector.
Modular design allows you to customize the plug-in modules to fit your needs, 19-inch standard dimension or other custom-sized dimensions maximize the ease of use and maintenance.


Click the blue button "Customize your PDU" to start


Customize your PDU

www.watchfuleyesolutions.com - Page 08 - Back to TOP -

FAQ & Help
1. What should I do if I can't find the paper manual in the product packaging?
Watchful Eye products is committed to going green with paperless data sheets. On the rear side of each product enclosure is an engraved link with URL for downloading paperless data sheet and QR code of the website. If you need the paper data sheet, you can open the link and print the data sheet by yourself.


2. Is there an overall view of the PDU?
The following is a photo of PDU (WTH-CS/PDU-US-S).

www.watchfuleyesolutions.com - Page 09 - Back to TOP -

Download WatchfulEyE Official App
To learn about more products and updates from company, please scan QR code to download the official App:

After-sale Services
Watchful Eye provides a 5-year quality warranty globally.
